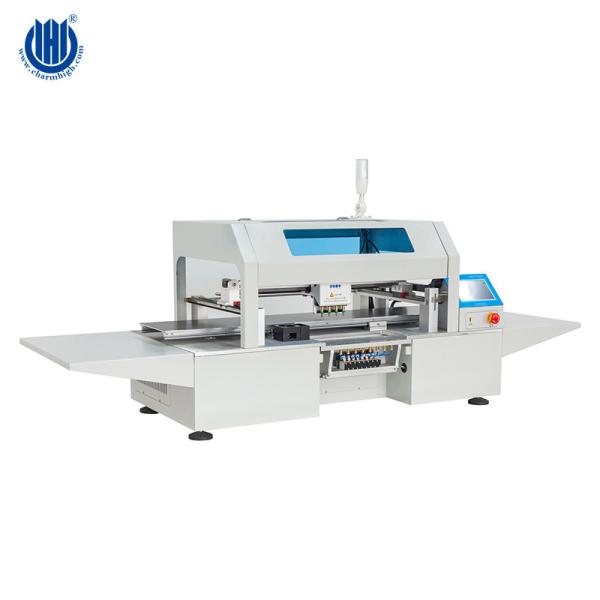

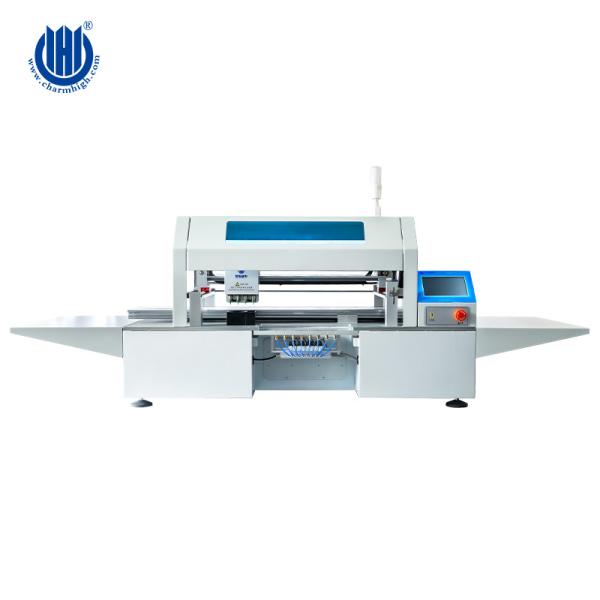

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine
Specifications
Brand Name :
Charmhigh
Model Number :
CHM-T510LP4
Certification :
CE、FCC、SGC、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Price Negotiable
Payment Terms :
T/T
Supply Ability :
20 set a month
Delivery Time :
15 work days
Packaging Details :
Wooden packing
Dimensions :
2060mm(L)×605mm(W)×700mm(H)
Weight :
145kg
Power Supply :
AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W
Air Supply :
0.5MPa ~0.7MPa
Vacuum Generation :
Built-in vacuum pump
Mounting Speed :
11000cph(optimal without vision detection); 5500cph (optimal with vision detection)
Description

High Quality Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Specifications
Dimensions 2060mm(L)×605mm(W)×700mm(H)
Weight 145kg
Power Supply AC220V (50Hz, single phase)/AC110V (60Hz, single phase);400W
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump

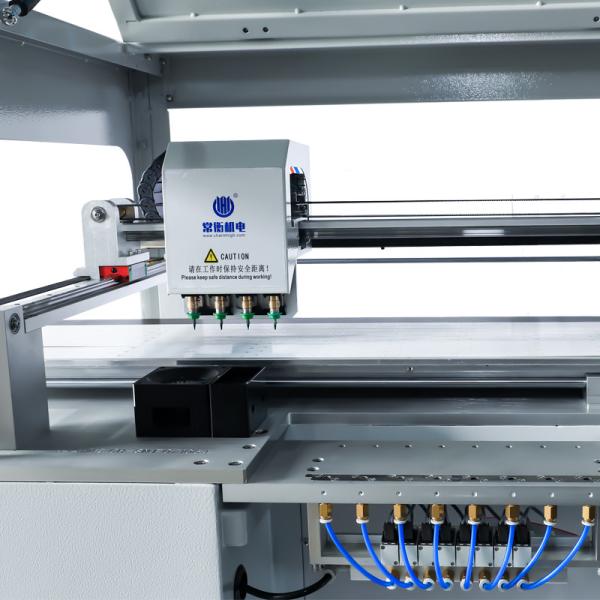

Mounting Head Quantity 4
Mounting Speed

11000cph(optimal without vision detection);

5500cph (optimal with vision detection)
Control Accuracy 0.015mm
Component Type

0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 10mm(L)×10mm(W)～1200mm(L)×240mm(W)
PCB Conveying Manual operation
Nozzle Change Manual operation
Control System

Built-in computer (embedded Linux operating system),

7-inch touch screen
Drive System X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration
Transmission System Synchronous belt+linear guide
Feeding System 8 Yamaha standard pneumatic feeder stacks, Yamaha electric feeder supported

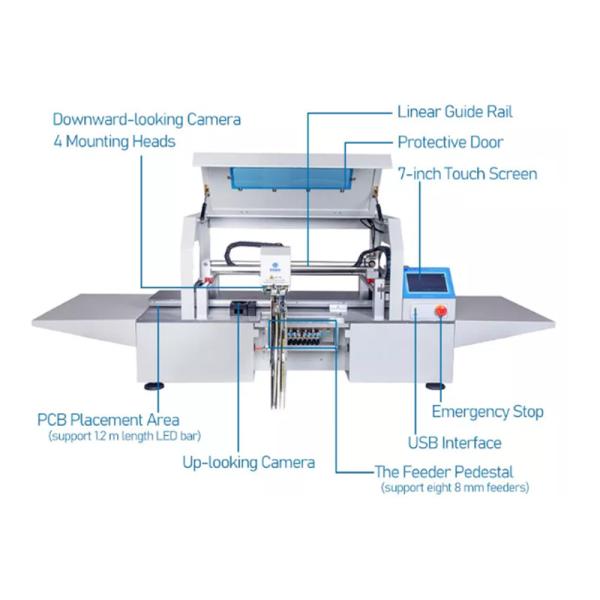

Vision System Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making MachineCHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

CHM-T510LP4 Smd Pick And Place Machine Pcb Assembly Led Bulb Making Machine

FAQ:

Q:This is the first time I use this kind of machine, is it easy to operate?

A:Yes. There are English manual and guide video that show you how to use machine.If there is any doubt in the process of operating the machine, please feel free contact us.We provide overseas distance learning services

Q;Can we customize the machine?

A:Of course. Our machines can custom made provide the number of stacks and the maximum size of PCB boards

Q;How about the warranty?

A:We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
