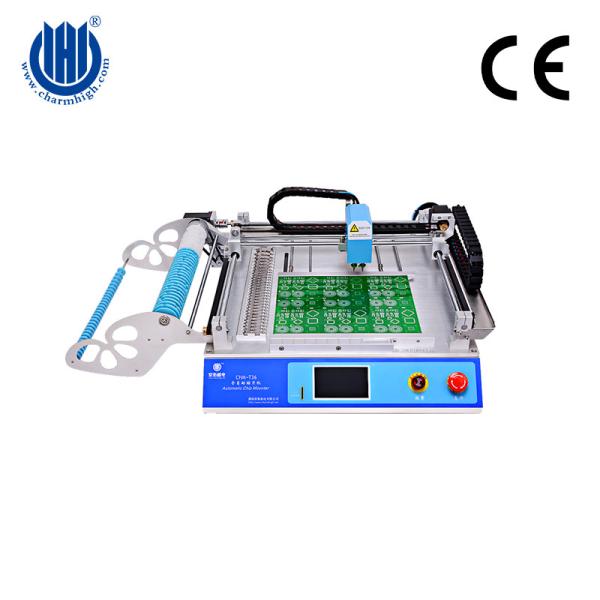

CHM-T36 Best Smt Pick And Place Machine Chip Mounter Machine
CHM-T36 Best Smt Pick And Place Machine Chip Mounter Machine
Specifications
Brand Name :
Charmhigh
Model Number :
T36
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable Price
Payment Terms :
T/T, D/P, D/A, L/C
Supply Ability :
20set/day
Delivery Time :
1-5 work days
Packaging Details :
wooden case
Name :
High precision Pick and Place Machine
T36 Mounting Head Quantity :
2
T36 Mounting Speed :
6000cph
PCB Size :
10mm(L)×10mm(W)～345mm(L)×410mm(W)
Component Type :
0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
Positioning Mode :
Laser positioning
Description

CHM-T36 Best Smt Pick And Place Machine Chip Mounter Machine


Competitive Advantage:
T36 with Embedded computer with Linux system.

T36 with closed loop control. can move more faster and smoothly

T36 with 29pcs feeders, more effective. can work with more kinds of components.

T36 with 9 kinds of different nozzles, can place with 0402. 0603,0805-505etc, and QFN, SOP, LQFP. all kinds of IC. and diode, triode.

T36 with Z axis detection can self-checking the height and angle during placement. can make sure this machine work well with various kinds of components.

We can supply English machine operation manual and technical support. Please be confident to make the purchase.

CHM-T36 Specifications
Dimensions930mm(L)×690mm(W)×310mm(H)
Weight37kg
Power Supply

AC220V (50Hz, single phase) / AC110V (60Hz, single phase);
250W

Air SupplyNo external air supply required
Vacuum GenerationBuilt-in vacuum pump
Mounting Head Quantity2
Mounting Speed6000cph (optimal)
Control Accuracy0.025mm
Component Type

0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)

PCB Thickness0.6mm~3.5mm
PCB Size10mm(L)×10mm(W)～345mm(L)×410mm(W)
PCB ConveyingManual operation
Nozzle ChangeManual operation
Control SystemEmbedded real-time operating system, 5-inch touch screen
Drive SystemX&Y-axis driven by stepping motors; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission SystemSynchronous belt + polished rod
Feeding System29 tape feeding stacks (8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 8 preset general IC stacks, worksurface custom IC trays supported
Positioning ModeLaser positioning

CHM-T36 Best Smt Pick And Place Machine Chip Mounter MachineCHM-T36 Best Smt Pick And Place Machine Chip Mounter Machine


FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: Manufacturer
Q: What is your delivery date?
A: In stock
Q: Why choose us?
A: Leading SMT Supplier in China; Professional after-sales service team.
