CHM-T36 Accurate Easy Operation SMT Production Line With 2 Heads

Stencil printer CHM-T3040 is the best quality in China with high feedback ,CHM-T36 sells very well and it has 29 pcs feeders,
it has a competitive price !

And CHMRO-420 reflow oven is the best quality drawer type oven in China,it is better than other drawer type oven in China, we recommend!

Description for 3 items

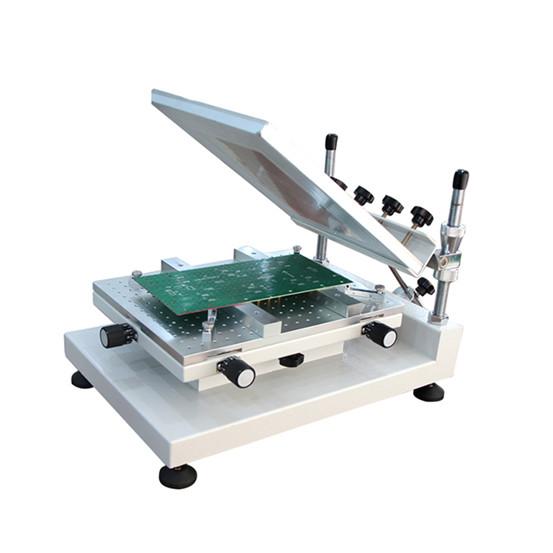

1.Stencil printer 3040
Stencil printer CHM-T3040 is the best quality in China with 100% feedback,

1. You can choose the same with the printing machine platform, in addition, Single and double panel location convenient and high flexibility, To ensure the printing accuracy.

2. Printing screen can be rotated 45 degrees, with a high repeat precision, can be comparable to the machine.

3. Using steel net mobile school edition, and connecting with the printing platform X, Y axis fine-tuning calibration, convenient and quick.

4. Frame made of thickening machine is superior material selection and strong, durable; Steel mesh stent using spiral screw up and down, adjustable height, convenient to control the thickness of the PCB.

CHM-T3040 Stencil Printer Parameters

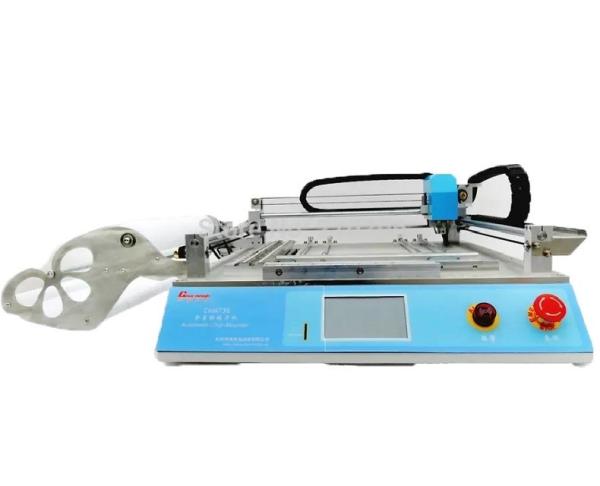

2.Pick and Place Machine CHM-T36
Description:
The CHM-T36 with vision system is independent product from Charmhigh. with advanced technology in China. It is special for research Lab, medium enterprise, small factories, Electronics enthusiasts or enterpreneur etc.

It is a small desktop machine with high precision, accurate positioning, easy operation with stable performance.
here are some highlights as follows:

Competitive Advantage:
T36 with Embedded computer with Linux system.

T36 with closed loop control. can move more faster and smoothly

T36 with 29pcs feeders, more effective. can work with more kinds of components.

T36 with 9 kinds of different nozzles, can place with 0402. 0603,0805-505etc, and QFN, SOP, LQFP. all kinds of IC. and diode, triode.

T36 with Z axis detection can self-checking the height and angle during placement. can make sure this machine work well with various kinds of components.

We can supply English machine operation manual and technical support. Please be confident to make the purchase.

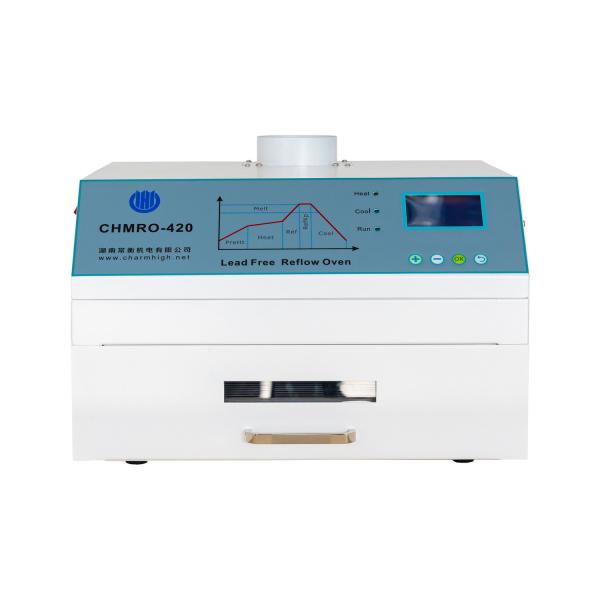

3.CHMRO-420 Reflow Oven

Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;

8 reflow profile is optional, flexible production;

Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;

Built-in PID controllers, high precision temperature control;

Drawer window design, commissioning and easy to use;

The use of special high alloy filament lamp life;

Dual sensor temperature;

Use iron double ball bearing fan, high temperature, long life;

Use pure stainless steel liner;

Drawer rail support with high temperature, easy to use;

Tight insulation processing;

Using industrial-grade display and control circuit;

Simple, intuitive, and efficient man-machine interface design.

If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
