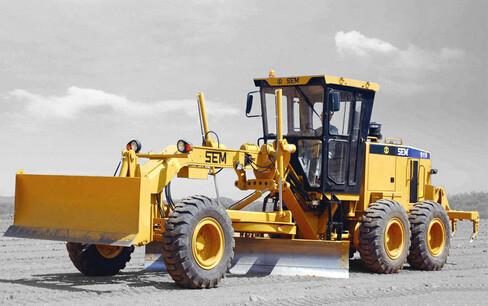

SEM 921 Motor Grader 162kw SDEC engine
SEM 921 Motor Grader 162kw SDEC engine
Specifications
Place of Origin :
China
Brand Name :
SEM
Certification :
ISO9001
Model Number :
SEM921
MOQ :
1unit
Packaging Details :
null
Delivery Time :
in stock
Payment Terms :
T/T or L/C at sight or western union
Description

Parameters

Items SEM921
Operation Weight 15930KG
Overall Dimension (L×W×H) 8854×2630×3360mm
Blade Length (L×W×H) 4279×25×607mm
Max. Lifting Height 475mm
Max. Depth of Cut 715mm
Max. Drawbar ≥85
Wheelbase 6140mm
Frame Articulation Angle 20°
Min. Turning Radius 7.8m
Engine Brand SDEC SC8D220G2
Rated Power 162 KW
Transmission Type Hangchi 6WG180
Travel Speed (Forward/ Rear) 40/25 km/h
Rear Axle / Tandem Meritor 18MRH-X240
Service Brake Drum type shoe brake, Air to oil control
Oscillation (Front up/ Rear up) 15/25°
Max. Oscillation Angle ±16°
Steering Angle (Left/ Right) 47.5°
Max. Lean Angle of Front Wheels 18°
Hydraulic System Load Sensing
