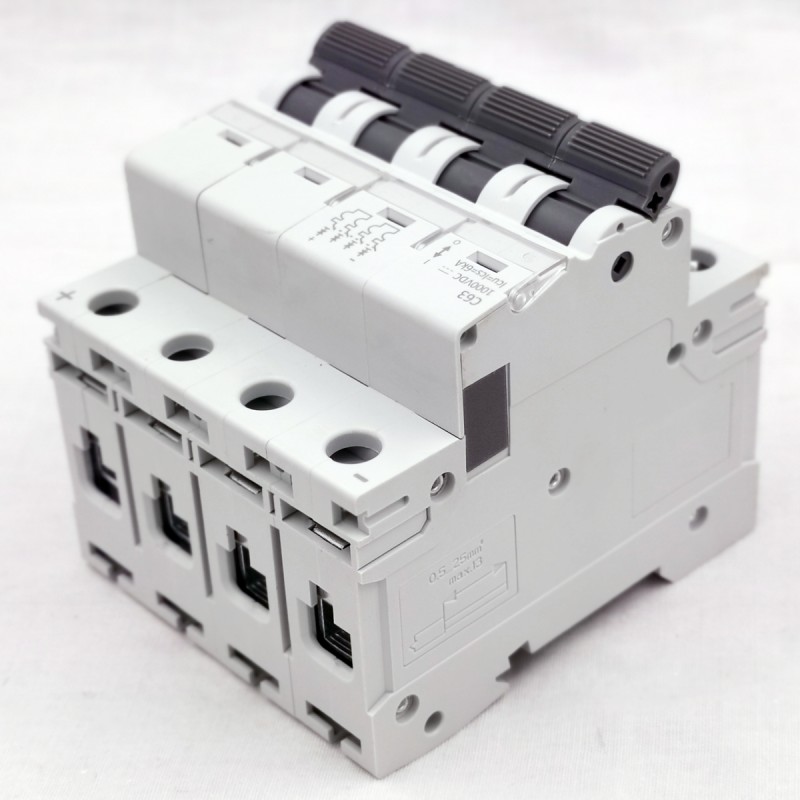

4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
4P 1000V DC Mcb Circuit Breaker 6A to 63A Curve C IP20 DC Miniature Circuit Breaker for Solar PV System
Specifications
Pole :
1P/2P/3P/4P
Standard :
IEC60898-1
Material :
High Standard Plastic Silver Copper
Brand Name :
MEH
Rated voltage :
1P : 250V; 2P : 500V; 3P : 750V; 4P : 1000V DC
Breaking Capacity :
6KA
Protection :
Other
Rated Frequency (Hz) :
50/60 Hz
Type :
MCB
Certificate :
CCC CE
MOQ :
500 pieces
Place of Origin :
Zhejiang, China
Number of Pole :
4
Product name :
DC MCB Miniature Circuit Breaker
Rated Current :
1-63A
Model Number :
MEH-M9-63DC
Warranty :
2 Years
Rated Voltage :
1000V DC
Mechanical Life :
GB 10963.1 comply, ≥10000 times
BCD Curve :
C
Application :
Solar PV System
Price :
$11.50-11.60 / piece
Electrical Life :
GB 10963.1 comply, ≥6000 times
Description

1P / 2P / 3P / 4P DC Circuit Breaker for Solar PV System

Product Description

MEH-M9-63DC circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.

1). In complicance with IEC/EN606947-2.
2). With indicator function in the contact position.
3). Transparent cover designed to carry label.
4). Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5). Maximum connecting ability of 25mm2 , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger.

Technical Data:

Electrical features
Rated current In
1-63A
Poles
1P 2P 3P 4P
Rated voltage Ue
1P:250V;2P:500V;3P:75OV;4P:1000V DC
Insulation voltage Ui
1000V
Rated breaking capacity
6000A
Rated impulse withstand voltage(1.2/50)Uimp
6kV
Dielectric test voltage at and ind.freq.for 1min
2kV
Polution degree
2
Thermo-magnetic release characteristic
B:6In±20%;C: 12In±20%
Mechanicallife
10000
Installation
Contact position indicator
Yes
Portection degree
IP20
Reference temperature for setting of thermal element
30℃
Ambient temperature (with daily average ≤35℃)
-5~+40℃
Storage temperature
-25~+70℃
Terminal connertion type
Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable
25mm²
18-3
Tightening torque
3.0N*m
22
Mounting
On DIN rail FN 60715(35mm) by means of fast clip device
Connection Top and bottom

Connection:
Rated current In Nominal Section Area of Copper Wire(mm²)
1~6A 1
10A 1.5
16A 20A 2.5
25A 4
32A 6
40A 50A 10
63A 16
