2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
2P 500V DC Miniature Circuit Breaker for Solar PV System IP20 Curve 6A 10A 16A 20A 25A 32A 40A 50A 63A MCB Series
Specifications
Certificate :
CCC CE
Model Number :
MEH-M9-63DC
Protection :
Other
Warranty :
2 Years
Rated voltage :
1P : 250V; 2P : 500V; 3P : 750V; 4P : 1000V DC
Breaking Capacity :
6KA
Place of Origin :
Zhejiang, China
Brand Name :
MEH
Application :
Solar PV System
Rated Voltage :
500V DC
Material :
High Standard Plastic Silver Copper
Mechanical Life :
GB 10963.1 comply, ≥10000 times
Price :
$5.60-5.80 / piece
BCD Curve :
C
Rated Frequency (Hz) :
50/60 Hz
Type :
MCB
Product name :
DC MCB Miniature Circuit Breaker
Pole :
1P/2P/3P/4P
Standard :
IEC60898-1
Electrical Life :
GB 10963.1 comply, ≥6000 times
MOQ :
500 pieces
Description

1P / 2P / 3P / 4P DC Circuit Breaker for Solar PV System

Product Description

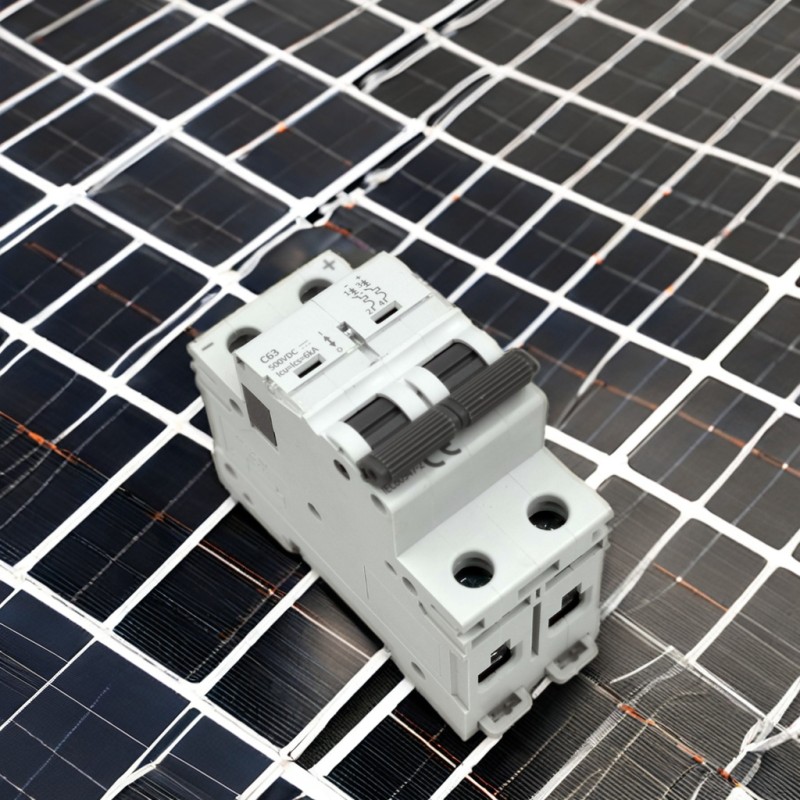

MEH-M9-63DC circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.

1). In complicance with IEC/EN606947-2.
2). With indicator function in the contact position.
3). Transparent cover designed to carry label.
4). Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5). Maximum connecting ability of 25mm2 , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger.

Technical Data:

Electrical features
Rated current In
1-63A
Poles
1P 2P 3P 4P
Rated voltage Ue
1P:250V;2P:500V;3P:75OV;4P:1000V DC
Insulation voltage Ui
1000V
Rated breaking capacity
6000A
Rated impulse withstand voltage(1.2/50)Uimp
6kV
Dielectric test voltage at and ind.freq.for 1min
2kV
Polution degree
2
Thermo-magnetic release characteristic
B:6In±20%;C: 12In±20%
Mechanicallife
10000
Installation
Contact position indicator
Yes
Portection degree
IP20
Reference temperature for setting of thermal element
30℃
Ambient temperature (with daily average ≤35℃)
-5~+40℃
Storage temperature
-25~+70℃
Terminal connertion type
Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable
25mm²
18-3
Tightening torque
3.0N*m
22
Mounting
On DIN rail FN 60715(35mm) by means of fast clip device
Connection Top and bottom

Connection:
Rated current In Nominal Section Area of Copper Wire(mm²)
1~6A 1
10A 1.5
16A 20A 2.5
25A 4
32A 6
40A 50A 10
63A 16
