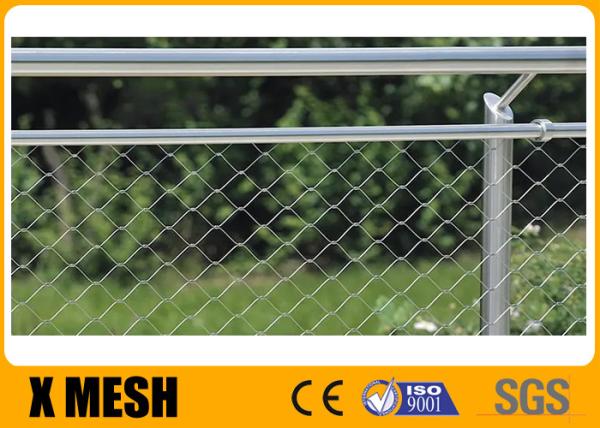

AISI316 AISI316L X Tend Stainless Steel Webnet For Community Protection
AISI316 AISI316L X Tend Stainless Steel Webnet For Community Protection
AISI316 AISI316L X Tend Stainless Steel Webnet For Community Protection
AISI316 AISI316L X Tend Stainless Steel Webnet For Community Protection
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Cable Webnet-006
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
100m2
Price :
USD3.5-5.85/m2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Product Name :
Woven Wire Mesh
Material :
Stainless Steel 316L
Wire Rope :
2mm
Rope Constructions :
7 X 7
Mesh Shape :
Diamond
Application :
for community protection
Panel Size :
1.5m(H) x 2.5m(W)
Mesh Angle :
60 Degree
Feature :
Safe, Stable & Easy to Install
Packing :
Carton or Wooden Case Packing
Description

Woven Wire Mesh X Tend Cable Wire Mesh Webnet Netting with for community protection

Woven Wire Mesh Introduction:

Balustrade Infill Cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ;Diagonal and irregular shapes can also be supplied.

Product Name

Woven Wire Mesh

Material

Stainless Steel 316L

Wire Rope

2mm

Rope Constructions

7 X 7

Mesh Shape

Diamond

Application

for community protection

Panel Size

1.5m(H) x 2.5m(W)

Mesh Angle

60 Degree

Feature

Safe, Stable & Easy to Install

Packing

Carton or Wooden Case Packing

Wire Rope Net Standard Specification:

1.0mm Rope Mesh

Product Code

MBL (KN)

Ø Rope (mm)

OW (mm)

OH (mm)

Area %

KG/m2

CD1020

0.69

1

20

35

72

1

CD1025

0.69

1

25

45

78

0.74

CD1030

0.69

1

30

52

80

0.58

CD1035

0.69

1

35

61

85

0.64

CD1040

0.69

1

40

70

86

0.41

CD1050

0.69

1

50

90

88

0.3

CD1060

0.69

1

60

105

89

0.24

CD1070

0.69

1

70

120

92

0.19

CD1080

0.69

1

80

140

93

0.16

1.5 mm Rope Mesh

Product Code

MBL (KN)

Ø Rope (mm)

OW (mm)

OH (mm)

Area %

KG/m2)

CD1525

1.6

1.5

25

45

72

1.59

CD1530

1.6

1.5

30

52

76

1.25

CD1535

1.6

1.5

35

61

81

0.99

CD1540

1.6

1.5

40

70

83

1.22

CD1550

1.6

1.5

50

90

87

0.87

CD1560

1.6

1.5

60

105

89

0.68

CD1570

1.6

1.5

70

120

91

0.54

CD1580

1.6

1.5

80

140

92

0.34

CD15100

1.6

1.5

100

175

94

0.32

CD15120

1.6

1.5

120

210

95

0.27

CD15140

1.6

1.5

140

240

96

0.23

CD15160

1.6

1.5

160

280

97

0.2

CD15180

1.6

1.5

180

312

98

0.17

CD15200

1.6

1.5

200

350

99

0.14

2.0 mm Rope Mesh

Product Code

MBL

(KN)

Ø Rope (mm)

OW (mm)

OH (mm)

Area %

KG/m2

CD2035

2.9

2

35

61

67

1.85

CD2040

2.9

2

40

70

70

2.15

CD2050

2.9

2

50

90

77

1.53

CD2060

2.9

2

60

105

81

1.2

CD2070

2.9

2

70

120

84

0.95

CD2080

2.9

2

80

140

86

0.78

CD20100

2.9

2

100

175

89

0.57

CD20120

2.9

2

120

210

91

0.48

CD20140

2.9

2

140

240

92

0.4

CD20160

2.9

2

160

280

93

0.34

CD20180

2.9

2

180

312

94

0.29

CD20200

2.9

2

200

350

95

0.24

3.0 mm Rope Mesh

Product Code

MBL

(KN)

Ø Rope (mm)

OW (mm)

OH (mm)

Area %

KG/m2

CD3040

7

3

40

70

37

4.29

CD3050

7

3

50

87

51

3.1

CD3060

7

3

60

104

60

2.45

CD3070

7

3

70

121

66

1.95

CD3080

7

3

80

139

71

1.63

CD30100

7

3

100

173

76

1.19

CD30120

7

3

120

208

80

1.02

CD30140

7

3

140

242

83

0.85

CD30160

7

3

160

277

85

0.74

CD30180

7

3

180

312

87

0.63

CD30200

7

3

200

346

89

0.52

Common Specifications:

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mm

QJ-1235

25 x 42mm

QJ -1225

QJ -1625

30 x 52mm

QJ -1230

QJ -1630

QJ -2030

35 x 60mm

QJ -1235

QJ -1635

QJ -2035

38 x 66mm

QJ -1238

QJ -1638

QJ -2038

QJ -2438

40 x 69mm

QJ -1240

QJ -1640

QJ -2040

QJ -2440

QJ -3040

50 x 86mm

QJ -1250

QJ -1650

QJ -2050

QJ -2450

QJ -3050

60 x 104mm

QJ -1260

QJ -1660

QJ -2060

QJ -2460

QJ -3060

70 x 120mm

QJ -1270

QJ -1670

QJ -2070

QJ -2470

QJ -3070

76 x 131mm

QJ -1276

QJ -1676

QJ -2076

QJ -2476

QJ -3076

80 x 138mm

QJ -1280

QJ -1680

QJ -2080

QJ -2480

QJ -3080

90 x 154mm

QJ -1290

QJ -1690

QJ -2090

QJ -2490

QJ -3090

100 x 173mm

QJ -12100

QJ -16100

QJ -20100

QJ -24100

QJ -30100

120 x 206mm

QJ -12120

QJ -16120

QJ -20120

QJ -24120

QJ -30120

Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304

(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035

SS316

(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5

SS316L

(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Rope Construction

Rope Diameter

Aperture

Breaking Force

inch

mm

mm

kn

7 × 19

1/8

3.2

120 × 208

7.38

7 × 19

1/8

3.2

100 × 173

7.38

7 × 19

1/8

3.2

90 × 156

7.38

7 × 7

3/32

2.4

100 × 173

4.18

7 × 7

3/32

2.4

90 × 156

4.18

7 × 7

3/32

2.4

80 × 139

4.18

7 × 7

3/32

2.4

70 × 121

4.18

7 × 7

5/64

2.0

100 × 173

3.17

7 × 7

5/64

2.0

90 × 156

3.17

7 × 7

5/64

2.0

80 × 139

3.17

7 × 7

5/64

2.0

70 × 121

3.17

7 × 7

1/16

1.6

80 × 139

2.17

7 × 7

1/16

1.6

70 × 121

2.17

7 × 7

1/16

1.6

60 × 104

2.17

7 × 7

1/16

1.6

51 × 87

2.17

7 × 7

3/64

1.2

80 × 139

1.22

7 × 7

3/64

1.2

60 × 104

1.22

7 × 7

3/64

1.2

50 × 87

1.22

7 × 7

3/64

1.2

40 × 69

1.22

Woven Wire Mesh Feature:

Handle Made
Environmental Protection
Extensive Use
Premium Quality
Direct from Factory
Product Life Cycle
Lifetime Support

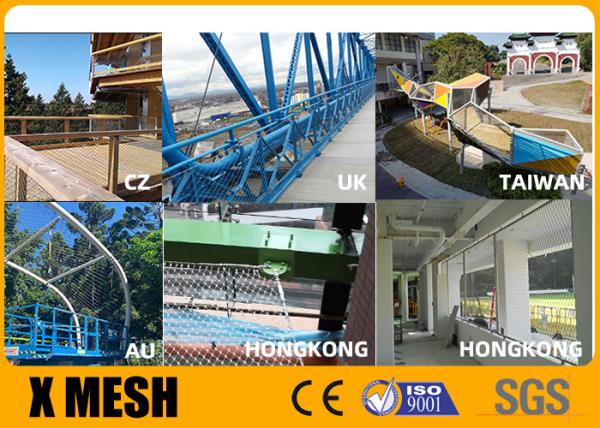

Woven Wire Mesh Application:

Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing.
Helideck Mesh
Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is
installed around the helicopter landing deck.
Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
Decoration Mesh
The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of
building, such as ceiling and curtain wall.
Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green
wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural
environment for birds to make them live comfortably.
Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or
other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.
