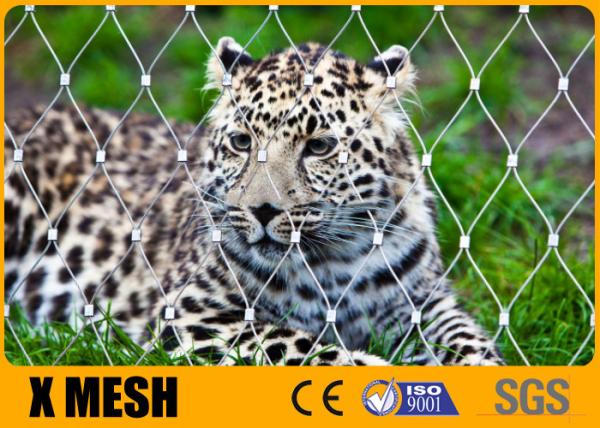

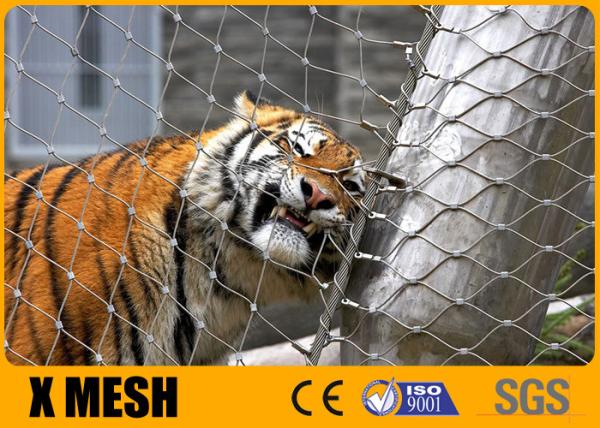

7X19 Type SS316L Zoo Wire Mesh For Animal Enclosures Rustproof
7X19 Type SS316L Zoo Wire Mesh For Animal Enclosures Rustproof
7X19 Type SS316L Zoo Wire Mesh For Animal Enclosures Rustproof
7X19 Type SS316L Zoo Wire Mesh For Animal Enclosures Rustproof
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Cable Webnet-003
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
100m2
Price :
USD3.5-5.85/m2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Product Name :
X Tend Mesh
Material :
Stainless Steel 316
Wire Rope :
4mm
Rope Constructions :
7 X 19
Mesh Shape :
Diamond
Application :
for Zoos
Panel Size :
Customized In Width And Length
Mesh Angle :
60 Degree
Feature :
Firm & Stable
Packing :
Carton or Wooden Case Packing
Description

X Tend Mesh Cable Webnet Wire Rope Net with 7 X 19 type 316 L Material for Zoos

X Tend Mesh Introduction:

The stainless steel ferrule rope mesh is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with stainless steel, copper or aluminium clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. The stainless steel net is suited for interior and exterior applications.Installed on railings or in stairways, it provides stability and clear guidance. On façades, it can serve as a climbing support for plants or it can set delicate accents as a dividing element in large spaces.

Product Name

X Tend Mesh

Material

Stainless Steel 316

Wire Rope

4mm

Rope Constructions

7 X 19

Mesh Shape

Diamond

Application

for Zoos

Panel Size

Customized In Width And Length

Mesh Angle

60 Degree

Feature

Firm & Stable

Packing

Carton or Wooden Case Packing

X Tend Mesh Standard Specification:

Material:

Stainless Steel 304 , 316 , 316L

Wire Rope:

1.2 Mm To 4.0 Mm

Rope Constructions:

7 X 7 , 7 X 19 , 1 X 19

Finished:

Ultrasonic Bath / Black Oxide

Mesh Orientation:

Horizontal , Vertical

Product Name:

Inox X-tend Cable Mesh Webnet

Mesh Shape:

Rhombus , Diamond

Application:

Staircase Security , Balustrade Infill , Railing Safety

Panel Size:

Customized In Width And Length

Mesh Angle:

60 Degree

Mesh Style:

X-tend In Ferruled Type

Common Specifications:

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mm

QJ-1235

25 x 42mm

QJ -1225

QJ -1625

30 x 52mm

QJ -1230

QJ -1630

QJ -2030

35 x 60mm

QJ -1235

QJ -1635

QJ -2035

38 x 66mm

QJ -1238

QJ -1638

QJ -2038

QJ -2438

40 x 69mm

QJ -1240

QJ -1640

QJ -2040

QJ -2440

QJ -3040

50 x 86mm

QJ -1250

QJ -1650

QJ -2050

QJ -2450

QJ -3050

60 x 104mm

QJ -1260

QJ -1660

QJ -2060

QJ -2460

QJ -3060

70 x 120mm

QJ -1270

QJ -1670

QJ -2070

QJ -2470

QJ -3070

76 x 131mm

QJ -1276

QJ -1676

QJ -2076

QJ -2476

QJ -3076

80 x 138mm

QJ -1280

QJ -1680

QJ -2080

QJ -2480

QJ -3080

90 x 154mm

QJ -1290

QJ -1690

QJ -2090

QJ -2490

QJ -3090

100 x 173mm

QJ -12100

QJ -16100

QJ -20100

QJ -24100

QJ -30100

120 x 206mm

QJ -12120

QJ -16120

QJ -20120

QJ -24120

QJ -30120

Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304

(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035

SS316

(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5

SS316L

(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Recommended Balustrade Infill Cable Wire Mesh

Material

Cable Diameter

Hole Size

Normal Break

SS304/316/316L

1/16" (1.6MM)

2.5" x 2.5"

480 LBS

SS304/316/316L

1/16" (1.6MM)

2" x 2"

480 LBS

SS304/316/316L

5/64" (2.0MM)

2.5" x 2.5"

676 LBS

SS304/316/316L

5/64" (2.0MM)

2" x 2"

676 LBS

SS304/316/316L

5/64" (2.0MM)

3" x 3"

676 LBS

X Tend Mesh Design:

316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.

X Tend Mesh Application:

In combination with architectural ropes Webnet is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
