Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings
Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings
Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings
Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings
Specifications
Brand Name :
xingebin
Model Number :
R-RXFHW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
300 M2
Price :
USD8-20/SQUARE METER
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000M2/WEEK
Delivery Time :
7-10 DAYS
Packaging Details :
pallet or in bulk
Name :
Rock Fall Protection Barrier
Material :
galvanized wire rope or S.S wire rope
Color :
Silver or green
Hole shape :
diamond shape
Type :
Rock Fall Protection Fencing
ISO 9001 :
ISO 9001
Feature :
Easy Installing
Description

Good quality ring net for rockfall barriers system for 7 rings

Ring net for rockfall barriers material:hot dipped galvanized wire,zinc coated from 50g/m2-350g/m2

Ring net for rockfall barriers material:high strength steel wire,the strength from 500MPA-1770MPA.

Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings

Good quality ring net for rockfall barriers system for 7 rings

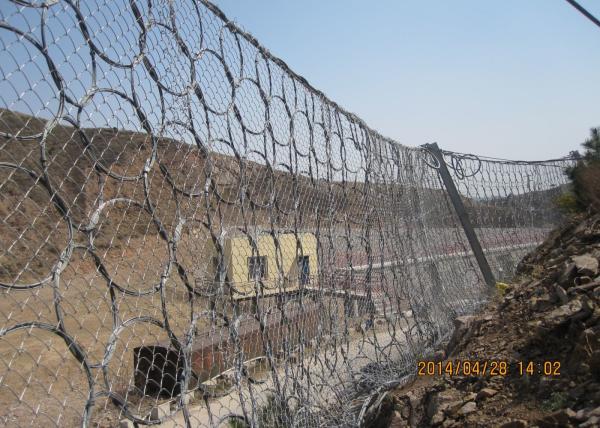

Ring net for rockfall barriers uses: it protect the formation of the regional slope, and prevent the collapse of the rock fall.It for the energy from 250kj to 3000kj, and has been able to 5000kj up to a higher level of special protection.

Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings

Good quality ring net for rockfall barriers system for 7 rings sheet

Common ring network structure configuration and protection features
(Consistent with Railway Industry Standard: TB / T 3089-2004 and "The People's Republic of China Communication Industry Standard: JT/T528-2004)
Model Grid Configurations Main protection
RXI-025 (Ring Network) R5/3/300 Supported by steel columns + rope + system + suture anchor rope Wit RX-025
RXI-050 (Ring Network) R7/3/300 With RX I-025 RX-050
RXI-075 (common-type ring network) R7/3/300 With RX-025 RX-075
RXI-100 (Ring Network) R9/3/300 With the RX-025 Within the intercept falling rock impact can 1000kj
RXI-150 (Ring Network) R12/3/300 With RX-025 Within the intercept falling rock impact can 1500kj
RXI-200 (Ring Network) R19/3/300 With RX-025 Within the intercept falling rock impact can 2000kj

Note:

1, the table models behind the figures represent the ring fence of the energy absorption capacity; such as "050" indicates that the maximum energy absorption capacity of the system 500kj, "150" indicates that the system maximum energy absorption capacity of 1500kj, and so on;

2, Ring network for more than flexible protection system "major components and characteristics of the" If your design does not fully consistent with the Department, the company can design according to your processing and manufacturing requirements;

3, product quality standards are in line with "The People's Republic of China Railway Industry Standard: TB / T 3089-2004 "and" The People's Republic of China Communication Industry Standard JT/T528-2004 "

Silver / Green Rockfall Protection Netting Diamond Hole For 7 Rings
