Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting
Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting
Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting
Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting
Specifications
Brand Name :
xingebin
Model Number :
R-RXFHW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
300 M2
Price :
USD8-20/SQUARE METER
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000M2/WEEK
Delivery Time :
7-10 DAYS
Packaging Details :
pallet or in bulk
Material :
Galvanized Steel Wire
Application :
Protecting Mesh
Hole shape :
Diamond Hole
Type :
Rock Fall Protection Fencing
ISO 9001 :
ISO 9001
Feature :
Easy Installing
Description

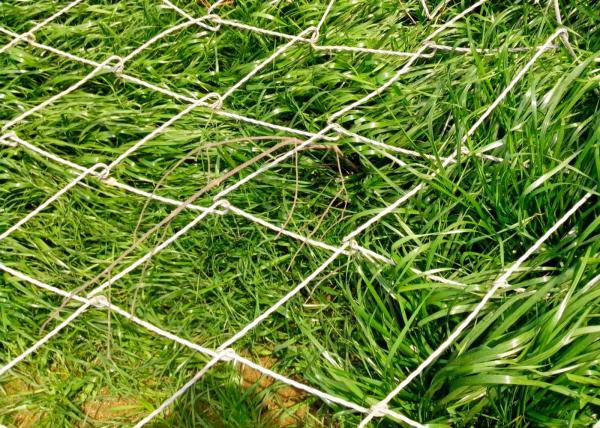

hot dipped galvanized spider spiral rope mesh for rockfall neeting system introduction

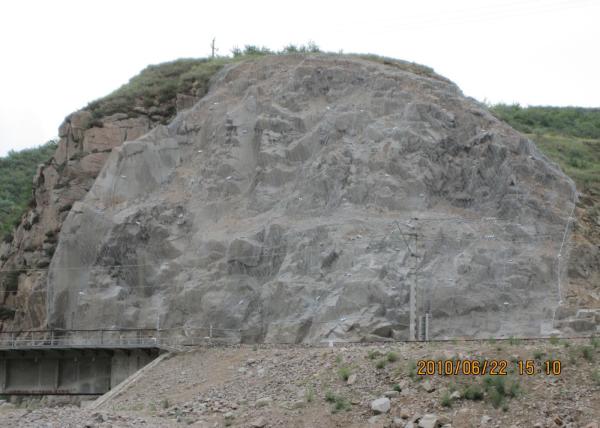

The hot dipped galvanized spider spiral rope mesh for rockfall neeting system made by high tensile 3 mm steel wire, which is the mainly component of the SPIDER System. SPIDER net with a layer of grid net stabilizes large areas of rock with anchors and boundary ropes. Unstable rocks are wrapped with a layer of spiral net and a layer of grid net and anchored all around with boundary ropes.

Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting

hot dipped galvanized spider spiral rope mesh for rockfall neeting system specification:

SPIDER spiral rope net: Rope wire structure:3*3mm,

Hole Inscribed circle diameter: 250mm (+/- 5%)

Roll size: 3.5m x 5/10m

Grid net:: Wire diameter: 2.0mm or 2.2mm

Hole size: 50mm*50mm

Roll size: 2m*20m

Anchors: Deformed steel bar anchor diameter: 25mm or 28mm

Length:2m -5m

Anchor bearing plate: 320mm x 170/180mm

Rope: Border rope diameter: 12mm or 16mm

Seaming rope diameter: 8mm

Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting

hot dipped galvanized spider spiral rope mesh for rockfall neeting system sheet

Hot Dipped Galvanized Spiral Wire Mesh , Rockfall Wire Rope Mesh Netting

Model

Wire Net Size

Supporting Rope Size

Sewing Rope Size

Note

GSS2A

Spider spiral rope mesh: Wire diameter: 3x3 mm. Mesh size: 250 mm - 300 mm.

Roll size: 3.5 m x 10 m. Chain link mesh:

Wire diameter: 2.2 mm. Hole size: 50 mm x 50

Steel anchor diameter: 16

mm.

Boundary rope: 12 mm or

16 mm.

8 mm steel wire rope

Double layers structure (chain link meshes and spider spiral rope mesh) Length of the wire rope anchor is 2 m - 3 m.
