Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Hot dipped galvanized concertina razor wire BTO-22 security fence
Specifications
Brand Name :
NEW GABION
Model Number :
XH1688
Certification :
ISO9001, ISO14001
Place of Origin :
CHINA
MOQ :
100 roll
Price :
USD3.0-10.2/ROLL
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 TON PER DAY
Packaging Details :
5 rolls/carton or waterproof paper and weave bag
Material :
Hot dipped galvanized wire or Stainless steel wire
Advantage :
Security fence
Color :
Green, silver
Specification :
Variouse types
Cutomized :
Yes
Wire diameter :
2.5mm
Installation :
Easy
Application :
Army, Prison, School, Bank, border, Military
Description

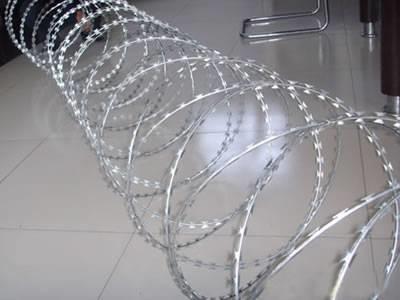

Concertina razor wire fence

Concertina Razor Wire

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Hot dipped galvanized concertina razor wire BTO-22 security fence

Hot dipped galvanized concertina razor wire BTO-22 security fence

Concertina razor wire types

Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.

Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very

Hot dipped galvanized concertina razor wire BTO-22 security fence

Hot dipped galvanized concertina razor wire BTO-22 security fence

Concertina Wire Coils Specification:
Type Outside Diameter No. of Loops Standard Length per Coil Notes
CBT-65 450mm 33 8M Single coil
CBT-65 500mm 41 10M Single coil
CBT-65 700mm 41 10M Single coil
CBT-65 960mm 53 13M Single coil
BTO - 10.15.22 500mm 102 16M Cross type
BTO - 10.15.22 600mm 86 14M Cross type
BTO - 10.15.22 700mm 72 12M Cross type
BTO - 10.15.22 800mm 64 10M Cross type
BTO - 10.15.22 960mm 52 9M Cross type

Outside Diameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7M-8M CBT-60, 65 Single Coil
500mm 56 12M-13M CBT-60, 65 Single Coil
700mm 56 13M-14M CBT-60, 65 Single Coil
960mm 56 14M-15M CBT-60, 65 Single Coil
450mm 56 8M-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9M-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10M-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8M-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10M-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11M-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12M-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13M-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14M-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type

Concertina razor wire material

Material: high quality galvanized steel sheet and galvanized steel wire, or stainless steel sheet and stainless steel wire.

Accoring to different material,Razor Barbed Wire is divide into:

• Galvanized Razor Barbed Wire(zinc coating 30g/m2,60-100g/m2.200-250g/m2).

• Stainless steel Razor Barbed Wire(AISI 304,AISI 316,AISI 304lL,AISI316L etc).

• PVC coated Razor Barbed Wire.

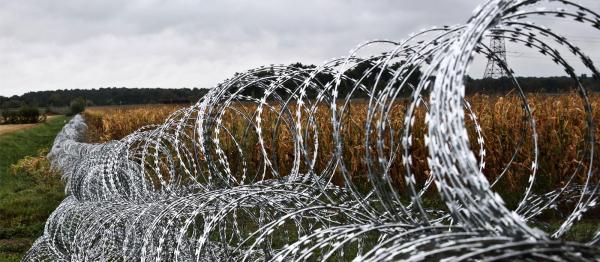

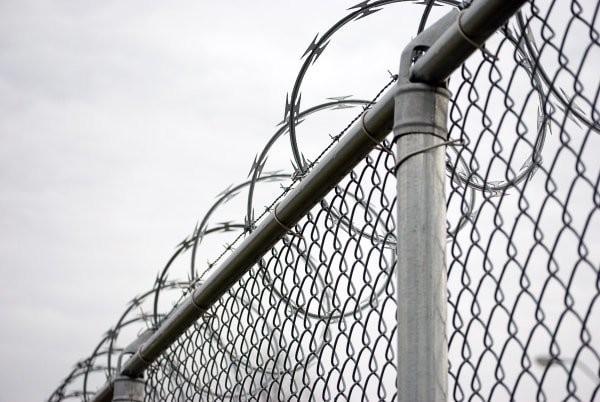

Application of the concertina razor wire:

Hot dipped galvanized concertina razor wire BTO-22 security fence

Hot dipped galvanized concertina razor wire BTO-22 security fence

Hot dipped galvanized concertina razor wire BTO-22 security fence

Package of Concertina razor wire:

Hot dipped galvanized concertina razor wire BTO-22 security fence

Hot dipped galvanized concertina razor wire BTO-22 security fence
