48 X 100 Chain Link Mesh Fence Galvanized Silver Coated
48 X 100 Chain Link Mesh Fence Galvanized Silver Coated
48 X 100 Chain Link Mesh Fence Galvanized Silver Coated
48 X 100 Chain Link Mesh Fence Galvanized Silver Coated
Specifications
Brand Name :
XR
Certification :
SGS ISO
Place of Origin :
CHINA
MOQ :
1 Roll
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 m² Per Week
Delivery Time :
7 Days After Payment
Packaging Details :
Plastic Woven Bag
Product Name :
48" x 100' Galvanized Chain-Link Fence
Wire Dia :
9 Ga Or 11.5 Ga
Material :
Galvanized
Mesh Shape :
Diamond
Roll Size :
48''x100''
Including :
Chain Link Hardware
Description

48" x 100' Galvanized Chain-Link Fence Project Material List With Chain Link Hardware

Galvanized Chain Link Fence Description

Chain Link Fence Made of galvanized steel for durability. Galvanized before weaving to eliminate burrs and sharp surface.Roll-out design for easy installation. Top and bottom of fabric ends

Galvanized Wire Mesh Chain Link Fence Paramaters

Product name Chain link fence
Material Galvanized steel wire, PVC Coated wire
Wire diameter 2.5mm, 9G, 8G, 3.15mm, 3.6mm, 4mm etc
Diamond hole size 2''x2'', 60x60mm, 3''x3'' etc
Fence height 4ft, 5ft, 6ft, 2m, 8ft, 3m etc
Other accessories Fence post,
top rail,
High tensile wire;
Fence caps;
Barbed wire;
Tension bar;
etc

Galvanized Wire Mesh Chain Link Fence Data Techinique

Chain link fence System:
Chain-Link Fabric
Type
Specification
Gauge
Mesh
Heights
Selvage		 Galvanized before Weaving
Low carbon steel wire
9 or 11
2"
3', 42", 4', 5', 6', 7', 8', 10' and 12' or as your request
Knuckled and Knuckled, Barb and Knuckled 6', or Barb and Barb
Framework
Top Rail
3' to 5' High

6' to 12' High		 32mm O.D.

42mm O.D.
Line Posts
3' to 5' High

6' to 12' High		 48mm O.D.

60mm O.D.
Terminal Posts
3' to 12' High

For Heavy Gates		 60mm O.D.

100mm O.D.
Gate
Fabric
Frame		 Same Mesh and Gauge as Chain Link Selected
Same as Top Rail Selected
Fittings
Steel Fittings
Tie Wires		 Hot Dip Galvanized Or PVC coated available
galvanized
Caps, Eye Tops,
Rail Ends		 Malleable, Cast Iron Steel, Pressed
Material Composition
Colors		 Polyethylene Thermoplastic

Green, Black, Brown, Gray, Redwood, Blue, Desert Sand

48

Chain Link Fence Features

  • Galvanized before weaving (GBW) to aid in eliminating burrs and sharp surfaces
  • Includes tension wire used for increased fence stabilization along the bottom of your Chain-Link fence project.
  • Fast setting concrete for termination posts is special blend of cements, sand, and gravel designed to set hard in approximately 20-40 minutes

Chain Link Fence Benifits


Bright colors, smooth mesh surface, strong tension, not easy to be deformed by external impact.Easy construction and installation, strong flexibility (the shape and size can be adjusted at any time according to site requirements)

Chain Link Fence Standard Packing

1. Fittings in wooden case
2. Framework and gate in pallets, out wrap with plastic film to prevent moist
3. Rolls chain link fence wrap woven bag at top and bottom
4. As your kindly special requirement , to guarantee goods are good arrive to your place

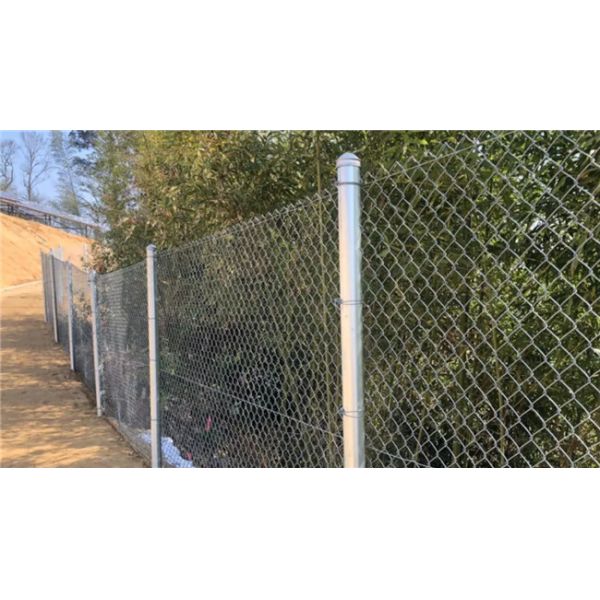

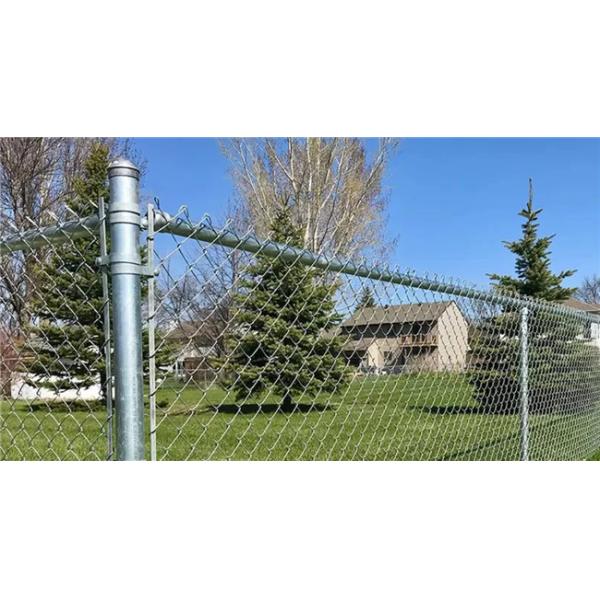

Chain Link Fence With Top Rail

48

Chain Link Fence Without Top Rail

48
