6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
Specifications
Brand Name :
XR
Model Number :
CLF-005
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
4000 sets per week
Delivery Time :
8-12 days after get the payment
Packaging Details :
plastic film and then pallet
Item :
chain link mesh fence
Size :
6'x8'
Material :
galvanized
Frame :
metal
weaving :
chain link weave
Wire diameter :
9guage,10.5guage,11guage
Description

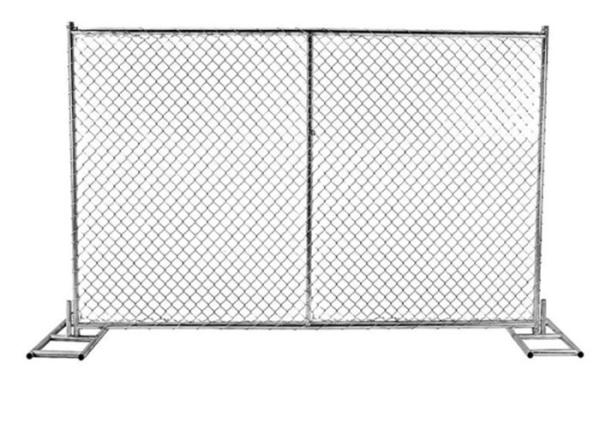

6' x 8' Size Removable Temporary Chain Link Mesh Fence For Construction

The description of chain link fence

1)Chain link fence material

Low carbon steel wire, Galvanized iron wire, Stainless steel wire, and Aluminium alloy (galfan)wire.

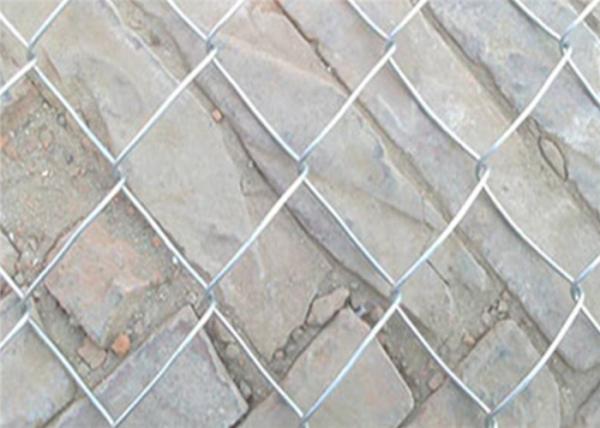

2)Weaving type:chain link weave

Strong corrosion surface treatment:

· Hot dipped galvanized. To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.

· Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anti- corrosion can satisfy the normal applications

Panel Specification
Dimensions
(H × W)		 6' × 8', 6' × 10', 6' × 12', 8' × 10', 8' × 12'
Wire diameter 9 ga/2.9 mm, 10.5 ga/2.7 mm, 11 ga/2.3 mm, 11.5 ga/2.4 mm, 12 ga/2.0 mm optional.
Mesh opening 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Frame O.D. 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Brace Cross, vertical, horizontal brace with 1"/2.54 mm round or the same with frame O.D.
Frame structure 360° full welded tubular frame.
Surface treatment Hot-dipped galvanized, Pre-galvanized
Attached way

Mesh wrapped around the flat bar then connect with clamps.

Galvanized wire wrapped with steel frame in a rather tension way.
Fence feet Specification
Material Steel plate, steel solid rod, steel pipe.
Fence feet type Square, oval, flat
Square/Oval feet Specification
Dimensions
(H × W × H)

36" × 13.75" × 20" (915 × 350 × 200 mm)

30" × 18" × 20" (760 × 460 × 200 mm) optional.
Surface treatment

Hot dipped galvanized.

Pre-galvanized.
Flat feet Specification
Dimensions
(H × W × TH)

23.6" × 4.3" × 0.3" (600 × 110 × 8 mm)

35.4" × 3.0" × 0.25" (900 × 80 × 7 mm) optional.
Hole size O.D. 19 mm.
Interior round steel rod/pipe 30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe 30 × 30 × 150 mm.
Rod space 30 mm.
Surface treatment Hot-dipped galvanized, Pre-galvanized
Clamp Specification
Clamp center distance 80, 90, 100 mm optional.
Applied post O.D. 25, 28, 32, 38, 40, 42 mm optional.
Clamp TH 4 mm.
Bolt Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut 15.9 mm, 17 mm optional.
Surface Treatment Hot-dipped galvanized, Pre-galvanized
Weight 0.42 kg/set.
Accessory List 2 pieces clamps with 1 bolt and 1 nut.

6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction

6' x 8' Size Temporary Chain Link Mesh Fence Removable For Construction
