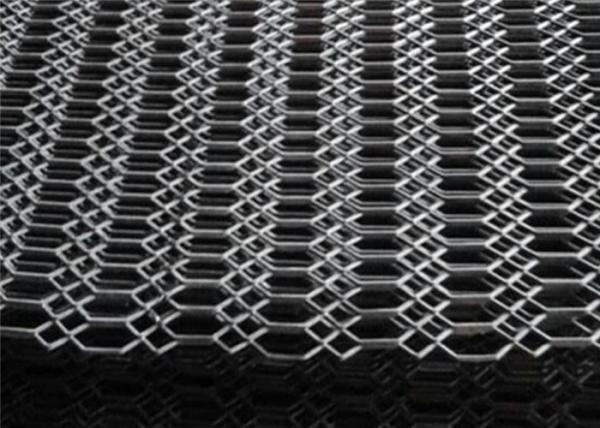

3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating
3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating
3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating
3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating
Specifications
Brand Name :
XR
Model Number :
EPM-006
Certification :
ISO
Place of Origin :
CHINA
MOQ :
3 Square Meters
Price :
Negotation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
4000 Square Meters Per Month
Delivery Time :
7-10 days after get your payment
Packaging Details :
pallets
Thickness :
1.0 - 5.5 mm
Mesh :
24x40mm
Material :
Mild steel sheet
Panel Size :
1.2 x 2.4 m
Surface TReatment :
PVC coated
Application :
Protecting Mesh,Fencing
Color :
Silver,red,Black,white,yellow
Description

3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating​

hole sizes

strand

thickness

dimensions

27*38mm,27*76mm,24*40mm,24*80mm

3mm

2.3mm

4'*8'

27*38mm,27*76mm,24*40mm,24*80mm

2.5mm

2.3mm

4'*8'

27*38mm,27*76mm,24*40mm,24*80mm

2.4mm

2.7mm

4'*8'

27*38mm,27*76mm,24*40mm,24*80mm

2.4mm

3.2mm

4'*8'

27*38mm,27*76mm,24*40mm,24*80mm

2.3mm

3.2mm

4'*8'

Product Information

Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.

Expanded Metal is produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, and it is not woven or welded - it can never unravel.

Flattened expanded metal is expanded metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. Flattened expanded metal from Direct Metals is durable, economical, versatile, and is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel. During this process, the length of the sheet is elongated, usually by about five percent. After the expanded metal has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness.

1) The thickness 2.8mm ,strand widht :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44 .the weight :12kg/sheet

2) The thickness 3.2mm ,strand witdh :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14kg/sheet

3) The thickness 3.2mm ,strand widht :2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.2x2.4m .the weight :14.5kg/sheet

4) The thickness 3.2mm ,strand witdh:2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14.7kg/sheetSheet size: 1200 x 2400mm,
Weight: 12-14kg/sheet

Features of Flattened Expanded Metal

  • Economical
  • Durable
  • Extremely versatile
  • Easy installation
  • Low resistance to wind loads
  • Easily cut to fit
  • Many material options, such as carbon steel, stainless expanded metal, and aluminum expanded metal

    Hot dipped Galvanized Expanded Gothic Metal Mesh
    Product Thickness
    (mm)    		 Sheet size Hole size
    (mm)    		 Weight
    (kg/pcs)
    AISN gothic mesh 2.75 4ftx8ft 27x38,27x76
    25x40,25x80    		 11.5
    AISN gothic mesh 3 4ftx8ft 27x38,27x76
    25x40,25x80    		 12
    AISN gothic mesh 3.5 4ftx8ft 27x38,27x76
    25x40,25x80    		 14

Expanded Gothic Metal Mesh Packing Details

3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating

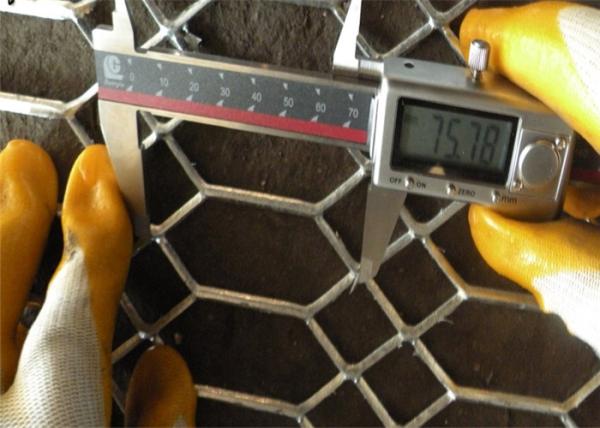

Details Of Expanded Metal Mesh Grating

3.0MM Thickness Expanded Sheet Metal Mesh / Expanded Metal Grating
