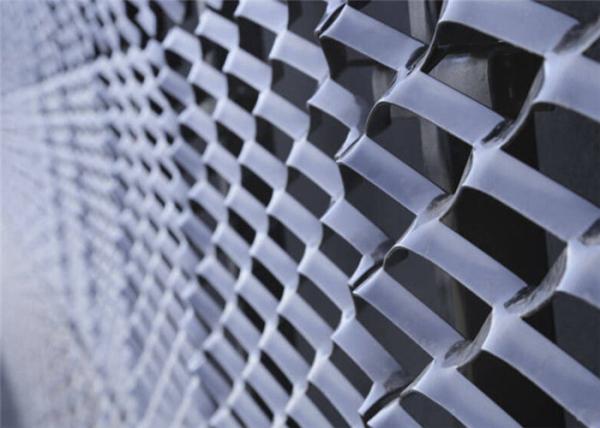

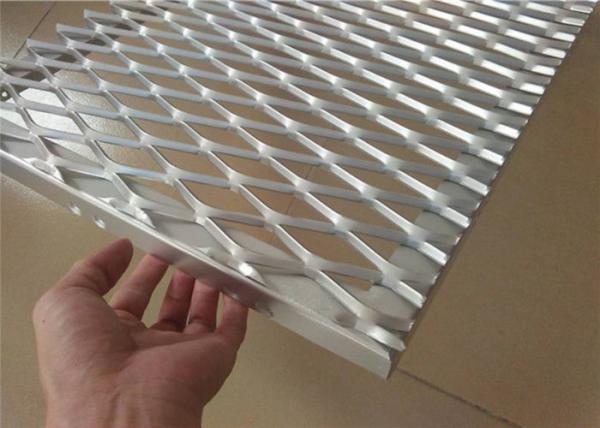

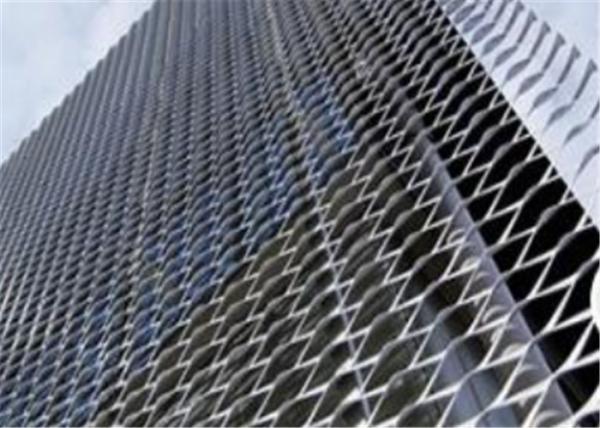

Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
Specifications
Brand Name :
XR
Model Number :
EPM-010
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Square Meters
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 SQM PER WEEK
Delivery Time :
7-10 days after get the payment
Packaging Details :
Wooden Pallet , Wooden Case
Application :
Curtain Wall , Facade Cladding , Ceiling Decorative
Material :
Aluminum Sheet
Technique :
Expanded
Surface Treatment :
Powder Coating , Anodising , Galvanized
LWD :
4-100mm
SWD :
2-50mm
Description

Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding

Specifications of aluminum expanded metal mesh

Thickness SWD LWD Strip Width Length Weight
0.5MM 2.5MM 4.5MM 0.5MM 0.5M 1.0M 1.8KG/M2
0.5MM 10MM 25MM 0.5MM 0.6M 2.0M 0.73KG/M2
0.6MM 10MM 25MM 1.0MM 0.6M 2.0M 1.0KG/M2
0.8MM 10MM 25MM 1.0MM 0.6M 2.0M 1.25KG/M2
1.0MM 10MM 25MM 1.1MM 0.6M 2.0M 1.77KG/M2
1.0MM 15MM 40MM 1.5MM 2.0M 4.0M 1.85KG/M2
1.2MM 10Mm 25MM 1.1MM 2.0M 4.0M 2.21KG/M2
1.2MM 15MM 40MM 1.5MM 2.0M 4.0M 2.30KG/M2
1.5MM 15MM 40MM 1.5MM 1.8M 4.0M 2.77KG/M2
1.5MM 23MM 60MM 2.6MM 2.0M 3.6M 2.77KG/M2
2.0MM 18MM 50MM 2.1MM 2.0M 4.0M 3.69KG/M2

Aluminum Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Aluminum Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.

Aluminum Expanded Metal Mesh Features Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall , radiator cover mesh
Easily fabricated, finished, installed and formed

Expanded Aluminium Mesh Surface treatment


PVC coated, Galvanized,anodic oxidation, antirust paint etc..

Expanded Aluminium Mesh Weaving and characters


Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.

Expanded Aluminium Mesh Application

Hotels, airports, railway stations, conference rooms, hotels, stadiums, television indoor decoration, ceiling and outdoor curtain wall, and a variety of vehicles, such as air compressor cooling ventilation hood and mechanical protection cover, acoustics, filter, air conditioning, satellite antenna, outdoor furniture, machinery facilities protection, highway barrier, building decoration..ect.

Decorative Wire Mesh For Wall

Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding

Expanded Aluminium Mesh For Stair Parts

Decorative Woven Expanded Aluminium Mesh Light Weight Facade Cladding
