2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
2-7/8'' 40mm Chain Link Fence Band For Fence Post
Specifications
Brand Name :
XR
Model Number :
BB-008
Certification :
ISO
Place of Origin :
CHINA
MOQ :
2 EA
Price :
Negotiation
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
20000EA per month
Delivery Time :
7-10 days after get your payment
Packaging Details :
Carton Box then pallet
Size :
40mm,50mm,60mm,75mm,102mm,114mm pipe
Usage :
Chain Link Fence Post
Feature :
Easily Assembled
Application :
Various Fence Post
Item :
Post brace bands
Color :
Black+OEM
Description

2-7/8'' Black Color Chain Link Pressed Steel Brace Band For Chain Link Fence Accessory

Regular brace bands
14ga.*3/4" Pressed Steel -Galvanized
Descripion Per sack Weight/piece
1-3/8" 250 0.13 lb
1-5/8" 250 0.15 lb
1-7/8" 250 0.18 lb
2-3/8" 250 0.21 lb
2-7/8" 100 0.24 lb
3"full 100 0.25 lb
3"-1/2 100 0.30 lb
4" 100 0.34 lb
4"-1/2 100 0.36 lb

Brace Band Additional Specification

Brace Band Size Measure By Product Material Rust Resistant?
1-3/8'' Outside Diameter Galvanized Steel Yes
1-5/8'' Outside Diameter Galvanized Steel Yes
1-7/8'' Outside Diameter Galvanized Steel Yes
2-3/8'' Outside Diameter Galvanized Steel Yes
2-7/8'' Outside Diameter Galvanized Steel Yes
3-1/2'' Outside Diameter Galvanized Steel Yes
4'' Outside Diameter Galvanized Steel Yes
6-5/8'' Outside Diameter Galvanized Steel Yes

Brace Band Basic Information:

Classification: Flat brace band, square brace band, 90 degree brace band.
Material: Low carbon steel, hot galvanized, aluminum.
Color: Silver, black, green, brown, etc.
Specification can be customized by the request.
Application: Fixed column and rail, enhance the stability of chain link fence.

The 2-7/8" Brace Band is an essential piece for building chainlink fences and hoophouse frames. It is used to attach the chainlink top rail to a corner post, end post, gate post, or frame. The brace band wraps around a pipe with the use of a 5/16" x 2" nut and carriage bolt and features a heavy-duty galvanized steel composition that features a cost-effective standard 12 gauge steel for residential applications.

Brace Band Features:

• Fits 2-7/8" Fence Post
• Long-Lasting, Corrosion-Resistant Material
• Requires 5/16" x 2" Carriage Bolts And Nuts
• Used To Attach Chain Link Fabric To Line And Terminal Posts
• Standard 12 Gauge Steel Designed For Residential Applications

Brace Band Description:

The 2-7/8" Standard Brace Band, also known as a rail end band, is an essential piece for building chain link fences and hoophouse frames. The Brace Band is used to attach the chain link top rail to a corner post, end post, gate post, or frame. This easy to install brace band has a high-quality, corrosion-resistant galvanized steel construction that features a standard 12 gauge ideal for residential applications.

Where use brace bands?

  • Brace Bands are Used for Attaching the Chain Link Top Rail to a Corner, End, Gate Post
  • Brace Bands Wrap Around the Post on the Fence and Attach to a Rail End Holding the Fence Top Rail
  • Brace Band is Also Used for Gates and Fence Panels.
  • Brace Band is Galvanized Steel to Prevent Red Rust.
  • Available in Sizes from 1-3/8" to 6-5/8" - Measured by the "outside diameter" of the Post
  • Please measure carefully before ordering
  • Here is the Image of Chain Link Parts Brace Band

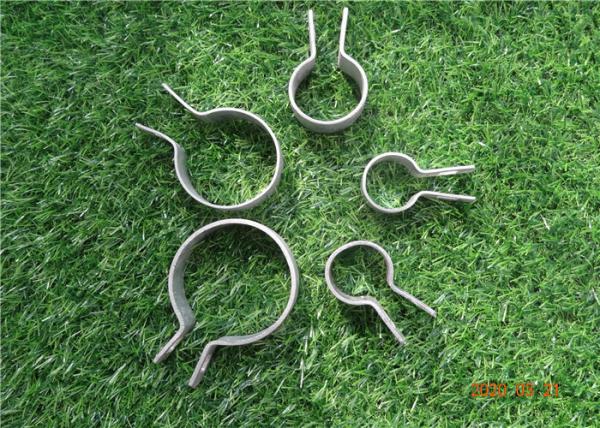

  • Diffrent size of brace bands
Service 1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit;
6. We will try our best to meet your requirements and supply you best quality of the products.
