Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Flange 2-3/8 OD Post / Pipe 38mm Chain Link Tension Band
Specifications
Brand Name :
XR
Model Number :
TB-008
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 EA
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
5000EA Per Month
Delivery Time :
10-15 days after get your payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Connection :
Flange
Surface treatment :
Galvanized
Feature :
Easily Assembled, Sustainable, Waterproof
Type :
Fencing, Trellis & Gates
Size :
38mm 42mm or 60mm or 89mm or 120mm
Color :
Silver+OEM
Material :
Steel
Used :
For Fence Post
Description

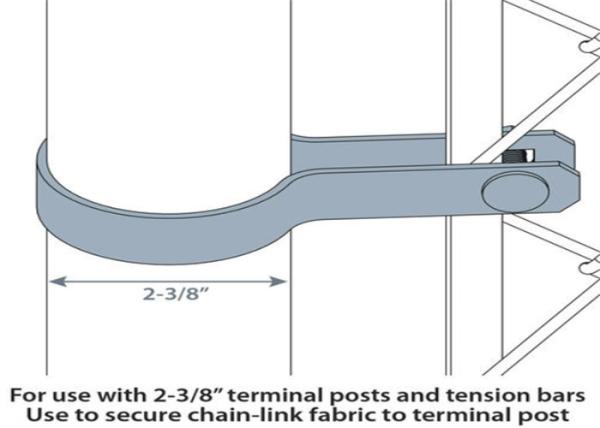

2-3/8'' Tension Band For Chain Link Fence Use For 2-3/8" Outside Diameter Post/Pipe

Tension Band For Chain Link Fence Introduction

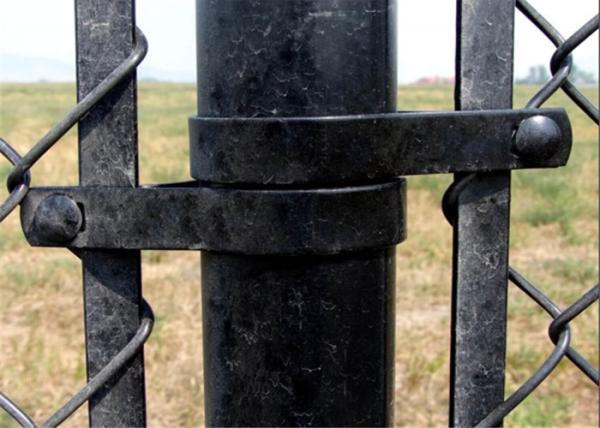

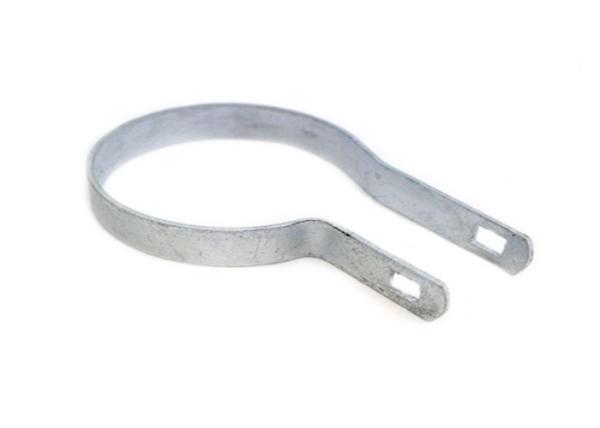

Tensions bands are a critical part of every permanent chain link fence installation. They hold the tension of the fence. Each band is designed to work with a Carriage Bolt that mounts through each side of the band. A tension bar, flat piece of steel, is inserted into the last woven needle of the chain link section and then slid into the opening of the tension band. The tension band is secured around the tension bar and fence with the carriage bolt. Each band is designed with a square shaped bolt hole which allows for the square shape of the carriage bolt head to stay in a fixed position and allow a hex nut to be tightened on the other side. Each band has a galvanized steel core that has been hot-dip galvanized.

Tension Band For Chain Link Fence Usage

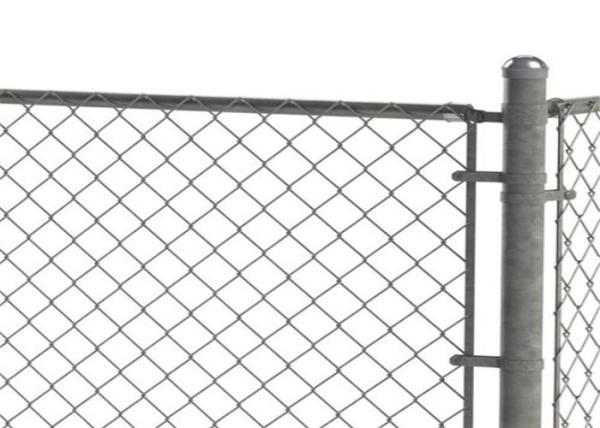

Chain link fence tension bands are often used to attach fence horizontal rails, bottom tension wire, and occasionally barbwire to chain link fence terminal posts.

Our Service

Service 1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit;
6. We will try our best to meet your requirements and supply you best quality of the products.

How do I attach the tension band to my chain link fence?

Tension bands can be slid over the top of a post and mounted in place by inserting a carriage bolt and tightening it with a hex nut and ratchet.

How do I attach a tension band to my chain link fence that already has other items mounted to it?

Tension bands can be bent open with a pair of pliers or by hand (depending on the person). Simply open grab each end of the tension band and apply pressure in a pulling motion. Once open, wrap the band around the post at the desired location. Next, squeeze the two ends back together, by hand or with pliers. Insert a carriage bolt and tighten.

If your fence is 4'' high order 3 per post that you will use tension bands on.
(rule of thumb is one less than the height of your fence in feet.
For use with fence posts
Constructed of durable galvanized steel to help prevent rusting and corrosion and improve longevity
Could be used on fence post for 1 3/8''-6 5/8''.

How do I know what size tension band I need for my fence?

The two most common ways to find the size needed is as follows:

-If you are trying to measure the size of a band you already have. Pinch the two ends of the band together and measure the INSIDE of the band.

-If you have the post you are going to mount the band, simply measure the OUTSIDE of the post.

Flange 2-3/8Flange 2-3/8
