0.13lb Long Lasting 1-3/8 Brace Bands For Chain Link Fence
0.13lb Long Lasting 1-3/8 Brace Bands For Chain Link Fence
0.13lb Long Lasting 1-3/8 Brace Bands For Chain Link Fence
0.13lb Long Lasting 1-3/8 Brace Bands For Chain Link Fence
Specifications
Brand Name :
XR
Model Number :
BB-003
Certification :
ISO
Place of Origin :
CHINA
MOQ :
2EA
Price :
Negotiation
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
20000EA per month
Delivery Time :
7-10 days after get your payment
Packaging Details :
Carton Box then pallet
Item :
Post brace bands
Feature :
Easily Assembled
Weight :
0.13lb--0.36 lb
Application :
Various Fence Post
Size :
40mm,50mm,60mm,75mm,102mm,114mm pipe
Usage :
Chain Link Fence Post
Description

1 3/8" Galvanized Steel Beveled Brace Band [12 Gauge] - Rail End Band

Brace Band Details

The 1 3/8" Beveled Brace Band, also known as a rail end band, is an essential piece for building chain link fences and hoophouse frames. The Brace Band is used to attach the chain link top rail to a corner post, end post, gate post, or frame. The brace band wraps around a 1 3/8" pipe with the use of a 5/16" x 1 1/4" nut and carriage bolt and features a heavy-duty galvanized steel composition with a beveled interior ideal for commercial and industrial applications. Fits 1 3/8" Post (1 3/8" OD Actual).

Brace Band Features:

• Fits 1 3/8" Fence Post
• Sold In Bag Quantities Of 250
• Requires 5/16" x 1 1/4" Carriage Bolts And Nuts
• Used To Attach Chain Link Fabric To End Posts
• Long-Lasting, Corrosion-Resistant Material
• Beveled Interior Designed For Commercial Or Industrial Use

Brace Band Specifications:

• Band Height: 7/8"
• Post Size: 1 3/8" (1 3/8" OD Actual)
• Thickness: 0.11" (12 Gauge)
• Carraige Bolt Size: 5/16" x 1 1/4"
• Material: Heavy-Duty Galvanized Steel

Where use brace bands?

  • Brace Bands are Used for Attaching the Chain Link Top Rail to a Corner, End, Gate Post
  • Brace Bands Wrap Around the Post on the Fence and Attach to a Rail End Holding the Fence Top Rail
  • Brace Band is Also Used for Gates and Fence Panels.
  • Brace Band is Galvanized Steel to Prevent Red Rust.
  • Available in Sizes from 1-3/8" to 6-5/8" - Measured by the "outside diameter" of the Post
  • Please measure carefully before ordering

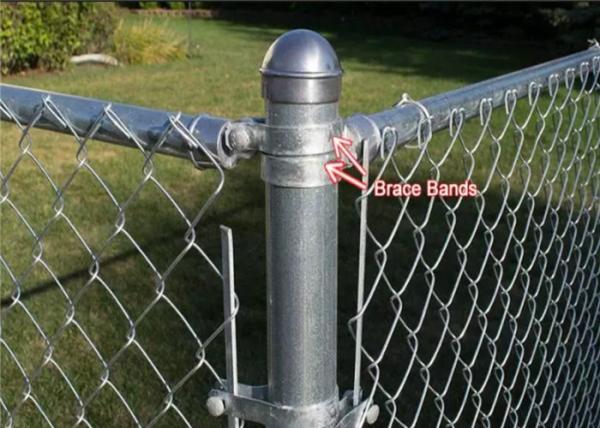

  • Here is the Image of Chain Link Parts Brace Band
  • Diffrent size of brace bands

Additional Information

Chain Link Fitting Brace Bands
Gauge 12 Gauge
Height 7/8"
Band Type Standard
Metal Type Steel
Post Size 1 3/8" OD
Uses Carriage Bolt Size 5/16" x 1 1/4"
Condition New
Finish Galvanized

0.13lb Long Lasting 1-3/8
