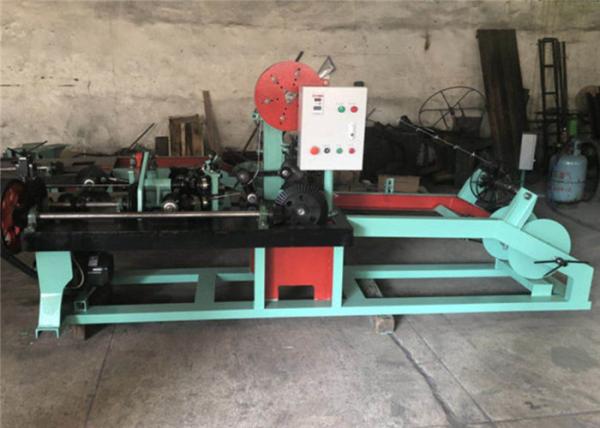

3KW Reverse Twist Fully Automatic Barbed Wire Machine
3KW Reverse Twist Fully Automatic Barbed Wire Machine
3KW Reverse Twist Fully Automatic Barbed Wire Machine
3KW Reverse Twist Fully Automatic Barbed Wire Machine
Specifications
Brand Name :
XR
Model Number :
BWM
Certification :
SGS
Place of Origin :
CHINA
MOQ :
One Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10 Sets Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Plastic Film Package In The Container
Main Wire Diameter :
1.6Mm-2.8Mm
Twist Style :
Reverse Twist
Speed :
600m/hour (4'' Barb Distance )
Weight :
1200KGS
Power :
3KW
Description

High Capacity Fully Automatic Barbed Wire Machine Reverse Twist Style

Barbed Wire Machine Advantage

This Barbed machine advantage is high working speed and efficiency ,can produce barbed wire with different wire diameter, different wire materials-(galvanized wire and pvc coated wire)

Barbed Wire Machine Type

1. Double wire barbed wire machine

2. Single wire barbed wire machine

3. Reverse twist barbed wire machine

Barbed Wire Machine Usage

Barbed wire machine is used to produce barbed wire, which is widely used for playground fence, animal husbandry,safety protection functions,national defense,agriculture,expressway, etc.

Barbed Wire Machine Model

item normal twist reverse twist single twist
main wire diameter 2.0-3.0mm 1.6-2.8mm 2.0-3.2mm
barb wire diameter 1.8-2.4mm 1.6-2.4mm 1.8-2.4mm
bard distance 3/4/5/6 inch 3/4/5/6inch 3/4/5/6inch
capacity/hour 900m/hour(4inch) 600m(4inch) 600m(4inch)
power 3KW 3KW 3KW

Reverse Twisted Barbed Wire Machine Parameter

Reverse twisted barbed wire machine can produce reverse twisted barbed wire,power is 2.2KW, voltage can be customized,The finished product--reverse twisted barbed wire will be much firm than that of other two types barbed wire .

Mode Reverse twisted barbed wire machine
Power (KW) 2.2
Voltage(V) 380
Size(mm) 3000*1200*1500
Weight(KG) 800
Main wire dia (mm) 1.6-2.8
Barb wire dia(mm) 1.6-2.4
Iron wire stretching 1100-1200(1.6mm-1.8mm)
Barb distance(inch) 4' (10cm) 5' (12.5cm)
Production(m/h) 600 750
Production(kg) 30(main wire -2.8mm, barb wire-2.2mm)

Barbed Wire Machine Working

3KW Reverse Twist Fully Automatic Barbed Wire Machine

Barbed Wire Rolls

3KW Reverse Twist Fully Automatic Barbed Wire Machine
