Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
Specifications
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3 Set Per Month
Delivery Time :
7-10 Days After Get The Payment
Brand Name :
XR
Model Number :
RBM
Certification :
CE
Place of Origin :
CHINA
Packaging Details :
Plastic Film In Full Container Loading,Wooden Box Less Than Container Loading
Name :
Razor Barbed Wire Machine
Function :
Punching sheet
Razor Type :
BTO-22 CBT-65 CBT-60
Weight :
3.5T
Power :
7.5kw
After Service :
Free spare parts, Online support, Field installation, commission
Key Selling Point :
Easy to Operate
Capacity :
4 Ton per day
Description

High Speed Auto Razor Barbed Wire Making Machine

Razor Barbed Wire Making Machine Description

Razor barbed wire machine, also called Concertina razor barbed wire machine, Razor wire making machine, Razor wire fence machine, is used to make razor barbed wire.

Concertina razor barbed wire machine including two parts. Punching machine produce razor tape; concertina razor tape profiling/ coiling line is used to coil razor tape on wire.

Razor Barbed Wire Making Machine Specification

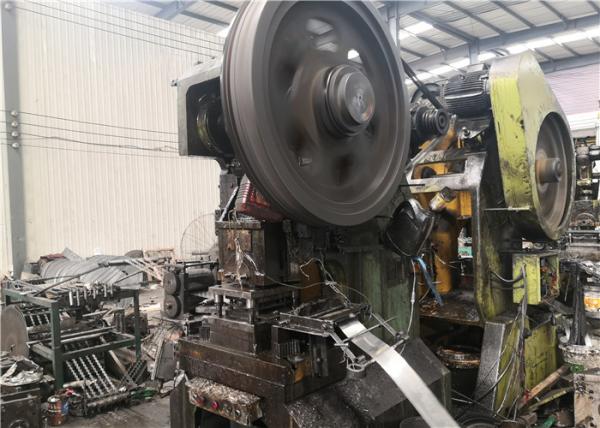

This is the main machine. Its function is used to punch the steel plate, and to make blade plate.
Type:25 T punching press
Producing speed:220-280m/h
Power:2.2kw
Rated Voltage:380V,50Hz
Overall Dimension:1325mm*990mm*2100mm
It mainly consists of punching machine ,mould ,decoiler and razor strip collector.

Razor Barbed Wire Making Machine Make kinds Razor Wire

Style Barb length Barb width Barb space Steel tape shape
BTO-12-1 12±1mm 13±1mm 26±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-12-2 12±1mm 15±1mm 26±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-18 18±1mm 15±1mm 33±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-22 22±1mm 15±1mm 34±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-28 28±1mm 15±1mm 48±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-30 30±1mm 18±1mm 49±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-60 60±1mm 32±1mm 96±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine
BTO-65 65±1mm 21±1mm 100±1mm Auto Razor BTO-22 7.5kw Barbed Wire Making Machine

Razor Barbed Wire Making Machine Advatages

1.Automatically complete production line, operator friendly and higher speed.

2.Automatic decoiler holding max. 2tons steel sheet; its motor made of copper leads.

3.Different ton punch press for choice to save your cost.

4.Customized mold saving 20% raw materials; hot-cast mold, one year life.

5.Slitting frame and recoiler to wind up razor tapes rolls tightly.

6.Electro-magnetic motor in coiling machine for smooth speed adjustable.

7.Multifunctional squeezing wheels for strong finished razor wire.

8.Concertina razor barbed wire machine.

Razor Barbed Wire Making Machine Main Paremeter

Main machine razor barbed wire machine
Type voltage power
kw		 producing speed
m/h		 weight
kg		 Overall
dimension
L*W*H
one strip 380v 1.5 220.-280 800 1100*1000*1700
five strip 380v 2.2 (220-280)*5 1500 1200*1000*1900
Seven strip 380v 2.2 (220-280)*7 2000 1100*1000*2000
Nine strip 380v 2.2 (220-280)*9 2200

Razor Barbed Wire Machine Application


Finished products of razor barbed wire machine (production line) are used for all kinds of special places and temporary barriers of protective materials.

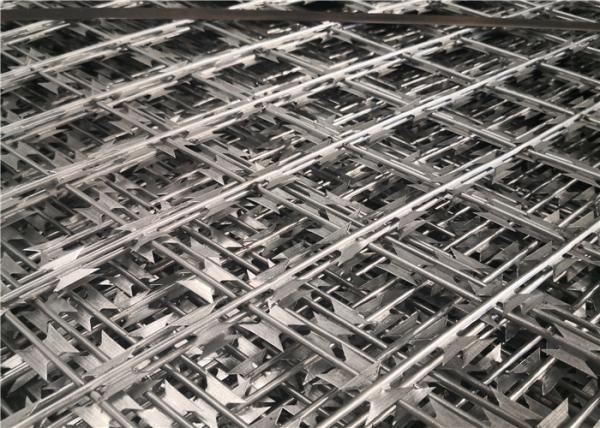

Razor Barbed Wire Machine Image

Auto Razor BTO-22 7.5kw Barbed Wire Making MachineAuto Razor BTO-22 7.5kw Barbed Wire Making Machine
