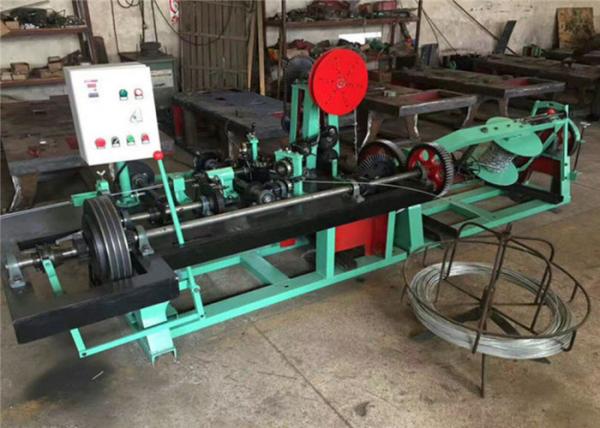

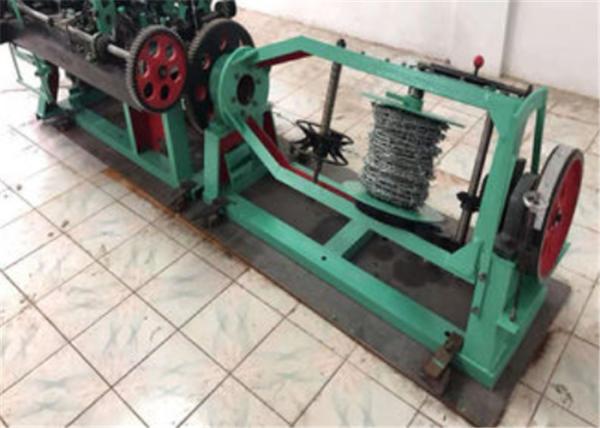

600m/H 2.8mm Barbed Wire Manufacturing Machine
600m/H 2.8mm Barbed Wire Manufacturing Machine
600m/H 2.8mm Barbed Wire Manufacturing Machine
600m/H 2.8mm Barbed Wire Manufacturing Machine
Specifications
Brand Name :
XR
Model Number :
BWM
Certification :
SGS
Place of Origin :
CHINA
MOQ :
One Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10 Sets Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Plastic Film Package In The Container
Main Wire Diameter :
1.6Mm-2.8Mm
Speed :
600m/hour (4'' Barb Distance )
Twist Style :
Reverse Twist
Power :
3KW
Weight :
1200KGS
Working Speed :
402R/Min
Description

High Speed Barbed Wire Machine, Double Strand Barbed Wire Fence Making Machine

Double Twisted Barbed Wire Machine Technique Parameter

Type CS-A Normal double twisted barbed wire machine
Motor(kw) 3
Voltage(V) 380
Outside dimension(mm)

Main :2000*1200*1400

Auxiliary:2000*650*800
Weight(kg) 1000
Main wire diameter(mm) 2.0-3.0
Barb wire diameter(mm) 1.8-2.4
Wire tensile strength(N/mm²) 400—600
Barb distance(inch) 3’(7.5cm) 4’(10cm) 5’(12.5cm) 6’(15cm)
Capacity(m/h) 675 900 1125 1350
Capacity(kg/h) 120 (main wire 2.8mm, barbed wire 2.2mm as example)
Weight 1Ton


Reverse twisted barbed wire machine Technique Parameter

Type CS-C reverse twisted barbed wire making machine
Motor(kw) 3
Voltage(V) 380
Outside dimension(mm) 3200*1200*1500
Weight(kg) 800
Main wire diameter(mm) 1.6-2.8
Barb wire diameter(mm) 1.6-2.4
Wire tensile strength(N/mm²)

1100—1200 (1.6 - 1.8 mm)

800—900 (1.8—2.6mm)

400—500 (2.7—2.8mm)
Barb distance(inch) 3’(7.5cm) 4’(10cm) 5’(12.5cm) 6’(15cm)
Capacity(m/h) 450 600 750 900
Capacity(kg/h) 30 (main wire 1.6mm, barb wire 1.6mm as sample)
Weight 750kg

Barbed Wire Making Machine Description

Barbed wire making machine is designed to produce hot dip or electro galvanized, barbed steel wires with structure of one Single Barbs. The machine is of horizontal design, consisting of two parts, assembled together at the middle/in tandem. It is safe and reliable in operation, capable of turning out high quality products with consistency.

Barbed Wire Machine Characters

  1. Manually installation,easy to set up
  2. Steel cover on driving shaft for safety operation
  3. Saving materials and high capacity
  4. Counter to count the number of barbs and calculate length of barbed wire
  5. Button switches and leveler to start and stop machine easily
  6. Quick and easy roll leveler to start and stop machine easily
  7. Guiding system to avoid wire snarls

Barbed Wire Machine Type

  • Double wire barbed wire machine
  • Single wire barbed wire machine
  • Reverse twist barbed wire machine
Barbed Wire Machine Used

Used for producing single-stranded barbed wire. The machine is mainly featured by material economization, easy operation and low noise. It is safe and reliable in operation ,capable of turning out high quality products with consistency.

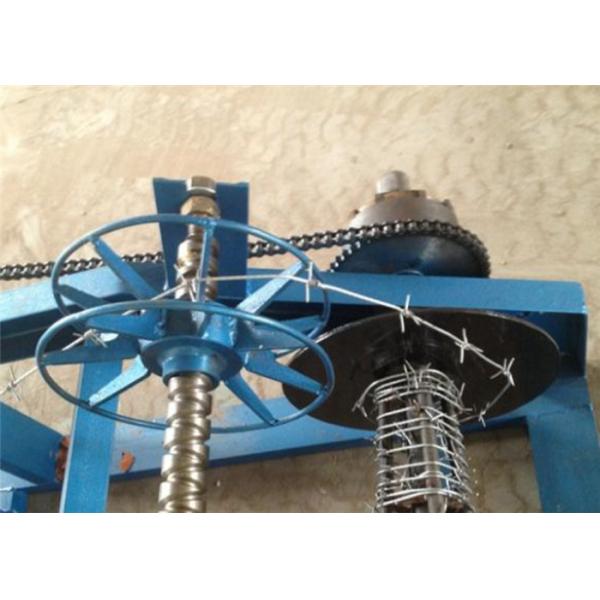

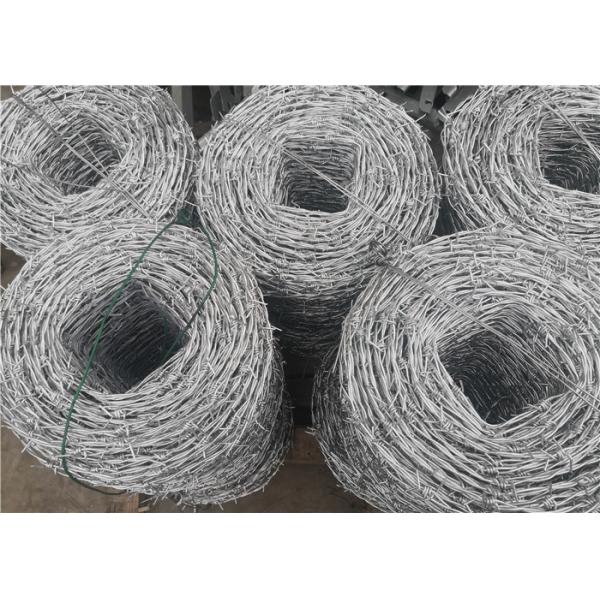

Barbed Wire Machine Working Processing

600m/H 2.8mm Barbed Wire Manufacturing Machine

600m/H 2.8mm Barbed Wire Manufacturing Machine

Barbed wire fence making machine After sales service

1. Test the machine before shipment

2. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date

3. Within guarantee time, if any components are broken under normal condition, we can change for free

4. We can send our best technician to buyer’s factory for installation, debugging and training

5. Buyer need to undertake double-way air tickets, Visa, Worker salary USD100.0/ Day, Accommodations
