Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H
Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H
Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H
Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H
Specifications
Brand Name :
XR
Model Number :
RWM
Certification :
SGS
Place of Origin :
CHINA
MOQ :
One Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
20 Sets Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Packed According To International Standard Or As Request
Type :
BTO-22
Strips :
9 Strips
Thickness :
0.3-0.5Mm
Color :
Green Or As Request
Rated Voltage :
380V
Production Rate :
220-280m/h
Description

Convenient Maintain Nine Strips Razor Wire Machine Electronic Control

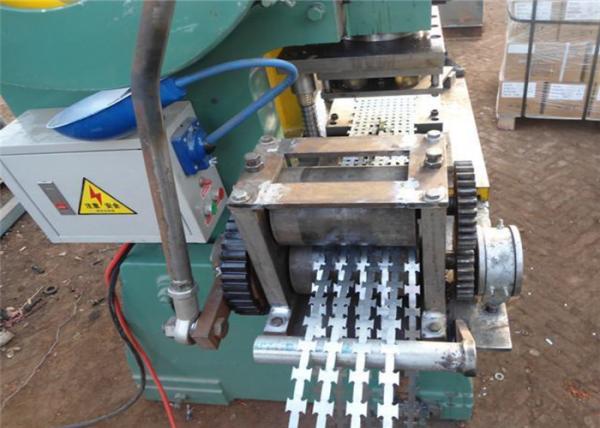

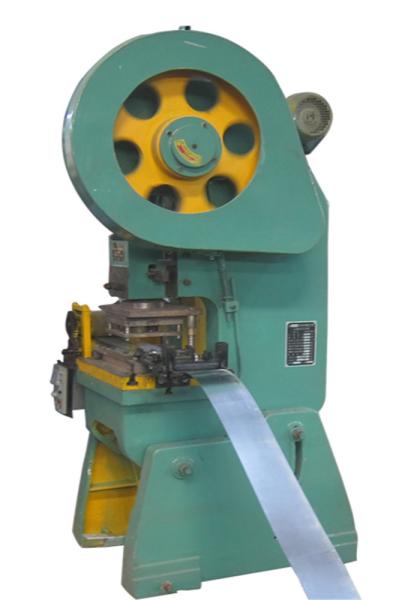

Razor Barbed Wire Machine Introduction

1. Razor wire machine with one strip is light-style,easy to operate,convenient to maintain,competitive price.

2. The machine is made of two parts.One is the main machine,which produce the blade,and the other is the coiling machine which coil the wire.

Razor Wire Machine Blade Tape Unit (Single)

Overall Dimensions LXWXH:1100MMX1000MMX1700MM
Rated Voltage 380V
Power 1.5KW
Production Rate 220-280m/h
Quality 800KG
Razor Wire Machine Wire Coating Machine
Overall Dimensions LXWXH:1100mmx750mmx1200mm
Rated Voltage 380V
Power 1.5kw
Production Rate 80kg/h
Quality 300kg

Razor Wire Machine Making Different Type

We provides razor barbed wire machine to produce different sizes of razor wires.It is equipped with cutters of 5 different shapes.
Razor barbed wire coil diameter: 450mm; 500mm; 700mm; 960mm.
Razor barbed wire material: Galvanized wire and stainless steel wire.

A1 Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:10mm
. Barb Width:13mm
. Barb Spacing:26mm
A2 Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:20mm
. Barb Width:15mm
. Barb Spacing:33mm
A3 Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:15mm
. Barb Width:15mm
. Barb Spacing:33mm
A4 Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:22mm
. Barb Width:16mm
. Barb Spacing:36mm
A5 Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H . Thickness:0.6mm
. Wire Dia.:2.5mm
. Barb Length:60mm
. Barb Width:22mm
. Barb Spacing: 102mm

Coil Dia.(mm) 500 700 960 450
Number of Circles 56 72 52 33
Standard Covered Length (m) 8-9 11-13 8-10 8
Maximal Covered Length 12 15 13 12
Razor Wire Install Case
Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H

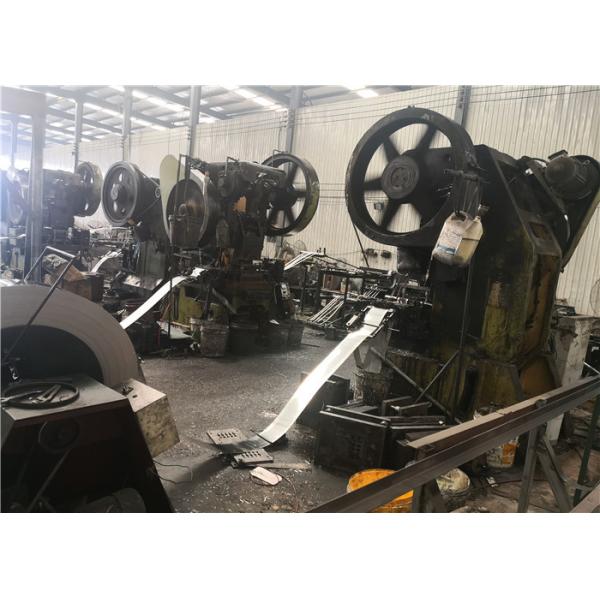

Razor Wire Machine Making Processing
Nine Strips Electronic Control BTO-22 Razor Wire Machine 280m/H
