280m/H 0.6Mm Concertina Razor Blade Machine
280m/H 0.6Mm Concertina Razor Blade Machine
280m/H 0.6Mm Concertina Razor Blade Machine
280m/H 0.6Mm Concertina Razor Blade Machine
Specifications
Brand Name :
XR
Model Number :
RWM
Certification :
SGS
Place of Origin :
CHINA
MOQ :
One Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
20 Sets Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Packed According To International Standard Or As Request
Plate Thickness :
0.3-0.6Mm
Strips :
9 Strips,11 Strips
Type :
BTO-22 CBT-65 CBT-60
Color :
Green Or As Request
Rated Voltage :
380V
Production Rate :
220-280m/h
Auxiliary Equipment :
Inner Wire Covering Machine
Description

Full Automatic Concertina Blade Wire Machine , Razor Blade Machine High Efficiency

Concertina Wire Machine Features

1. High efficiency:can produce the steel belt 80kgs per hour.

2. It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.

Concertina Wire Making Mahcine Advantage


Concertina Blade barbed wire, also known as blade barbed wire and blade barbed wire, is a new type of protective net. The blade barbed wire has excellent characteristics such as beauty, economy and practicality, good anti-blocking effect, and convenient construction. At present, the blade barbed wire has been widely .

Concertina Wire Machine Description

Concertina razor wire machine with one strip is light-style,easy to operate,convenient to maintain,competitive price.

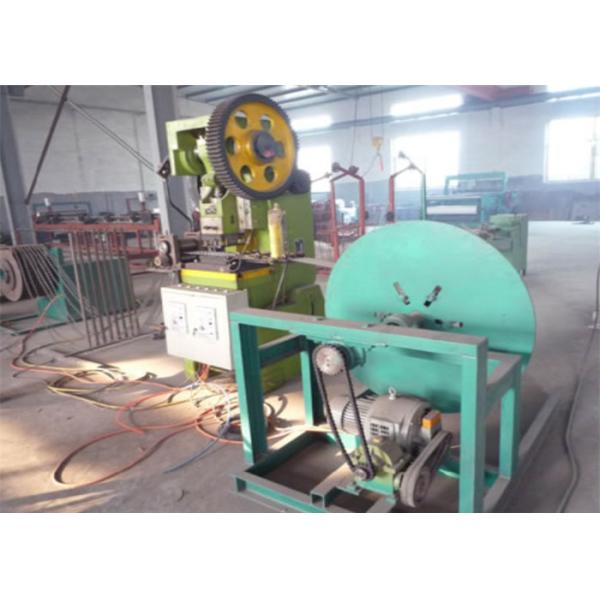

The machine is made of two parts.One is the main machine,which produce the blade,and the other is the coiling machine which coil the wire.

Concertina Wire Making Machine Specification

Model

25T

40T

60T

Coiling machine

Voltage

380V/50HZ or according to client's voltage

Power

2.2kw

2.2kw

7.5kw

1.5kw

Producing speed

220- 280m

220- 280m

220- 280m

2tons / 8hours

Pressure

25ton

25ton or 40ton

60ton

-

Thihckness of sheet

0.5± 0.05mm

0.5± 0.05mm

0.5± 0.05mm

-

Diameter of inner wire

-

-

-

2.5mm

Materil of sheet

galvanized

galvanized or ss

galvanized or ss

-

Concertina Wire Machine Making Different Type

We provides razor barbed wire machine to produce different sizes of razor wires.It is equipped with cutters of 5 different shapes.

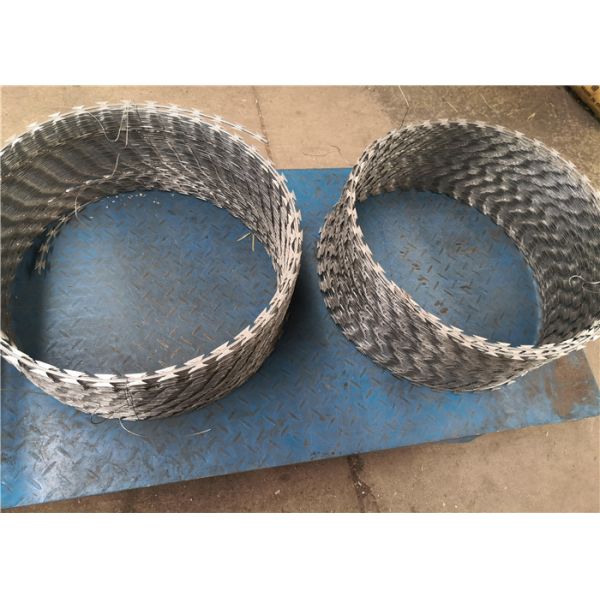

Razor barbed wire coil diameter: 450mm; 500mm; 700mm; 960mm.
Razor barbed wire material: Galvanized wire and stainless steel wire.

A1 280m/H 0.6Mm Concertina Razor Blade Machine . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:10mm
. Barb Width:13mm
. Barb Spacing:26mm
A2 280m/H 0.6Mm Concertina Razor Blade Machine . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:20mm
. Barb Width:15mm
. Barb Spacing:33mm
A3 280m/H 0.6Mm Concertina Razor Blade Machine . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:15mm
. Barb Width:15mm
. Barb Spacing:33mm
A4 280m/H 0.6Mm Concertina Razor Blade Machine . Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:22mm
. Barb Width:16mm
. Barb Spacing:36mm
A5 280m/H 0.6Mm Concertina Razor Blade Machine . Thickness:0.6mm
. Wire Dia.:2.5mm
. Barb Length:60mm
. Barb Width:22mm
. Barb Spacing: 102mm

Coil Dia.(mm) 500 700 960 450
Number of Circles 56 72 52 33
Standard Covered Length (m) 8-9 11-13 8-10 8
Maximal Covered Length 12 15 13 12
280m/H 0.6Mm Concertina Razor Blade Machine280m/H 0.6Mm Concertina Razor Blade Machine
