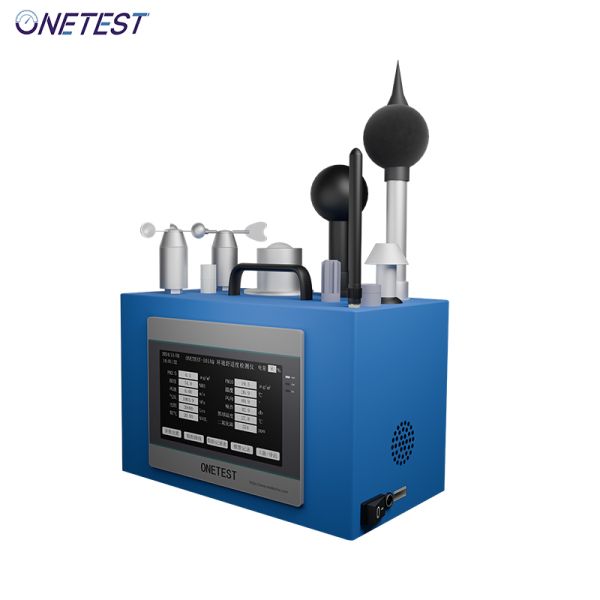

Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector
Specifications
Brand Name :
ONETEST-101AQ
Model Number :
ONETEST
Certification :
CMA
Place of Origin :
Shenzhen, China
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
100 pieces / 30 days
Delivery Time :
10~20 days
Packaging Details :
Product packaging: Plastic box. Shipping packaging:Carton
Measurement index :
Indicators such as PM2.5, PM10 temp, radiation temperature, humidity, wind speed, illuminance, noise, and CO2
supply electricity: :
Built-in 15000 mA battery and charger AC100-240V@DC12V
size: :
Length 26.3 * width 16.3 * height 15.5cm (excluding protrusion)
display mode: :
Color 7-inch touch-type LCD
signal output: :
The RS232 or RS485 or GPRS is optional
Data export: :
USB PC export or U disk export
Description

Indoor Thermal Comfort Detector-ONETEST-101AQ Simultaneous Measurement Of Multiple Environmental Parameters

ONETEST-101 AQ indoor environment comfort detector is used to measure the indoor environment, such as: family, apartment, hotel, office, airport, health environment thermal comfort instrument, mainly detect the dust in the indoor air PM2.5, PM10 temperature, black ball (radiation) temperature, humidity, wind speed, illumination, noise, carbon dioxide, at the same time optional meteorological parameters monitoring.

Design meet GB / T50785 civil building indoor heat wet environment standard, using 7 inch touch type LCD screen, at the same time multiple parameters display data, curve, alarm value, etc., and can set the storage interval, 30m memory can use U disk export data or USB computer, equipped with special PC analysis software, matching GPRS function, the data uploaded to the cloud monitoring platform, realize the data release function.

Indoor Air Quality Monitoring Device PM2.5 PM10 Thermal Comfort Detector

2.Poduct features
1.Multiple environmental parameters were measured simultaneously, and the curves were drawn automatically
2.Using high brightness touch color TFT LCD screen, CCFL backlight picture is clear;
3.With ARM microprocessor, multiple channels (up to 64 signal acquisition, recording, display and alarm inside the instrument)
4.Using 30MB large capacity FLASH flash memory chip to store historical data, power loss will never lose data;
5.With alarm display, and indicate the lower limit and upper limit of each channel;
6.Built-in GB2312 Chinese character library, using the full spell input method input;
7.Equipped with a standard USB2.0 interface to connect to the computer export data or U disk export

3.Qualification

Measure the parameters / functions

measuring range

certainty of measurement

display resolution

Corresponding time (sec)

PM 2.5

0～1000ug/m3

±10%

1ug/m3

Admito 60 seconds

PM 10

0～1000ug/m3

±10%

1ug/m3

Admito 60 seconds

CO2

400～5000ppm

±10%

1ppm

Admito 20 seconds

noise

20～140dB

±10%

0.1dB

Admito 2 seconds

illuminance

0-3000Lux

±10%

0.1Lux

Admito 2 seconds

Radiation (black ball) temperature

0～100℃

±0.5

0.1℃

Admito 2 seconds

temperature

-40～80℃

±0.5

0.1℃

Admito 5 seconds

humidity

0～100%RH

±3%RH

0.1%RH

Admito 5 seconds

wind speed

0～10m/s

±0.3m/s

0.1m/s

Admito 5 seconds

Formaldehyde (optional)

0～5ppm

±5%

0.001PPM

Admito 30 seconds

Oxygen (optional)

0～30vol%

±5%

0.1voL%

Admito 30 seconds

display mode:

Color 7-inch touch-type LCD

calibration:

Bring your own calibration function

signal output:

The RS232 or RS485 or GPRS is optional

Data export:

USB PC export or U disk export

software:

Single-player computer data analysis software

Cloud platform (optional):

WEB data viewing function of cloud platform (GPRS wireless transmission) can complete data analysis, mapping, export, early warning information sending and other functions

Remote control (optional):

The measurement range adjustment of the remote control equipment can be completed

supply electricity:

Built-in 15000 mA battery and charger AC100-240V@DC12V

power dissipation:

About 15w

weight:

The net weight of the whole machine is 3kg

size:

Length 26.3 * width 16.3 * height 15.5cm (excluding protrusion)

service environment:

Temperature: -20~60℃ Humidity: 0-95% RH (no condensation)

attestation:

CE, ISO9001 Quality system certification
