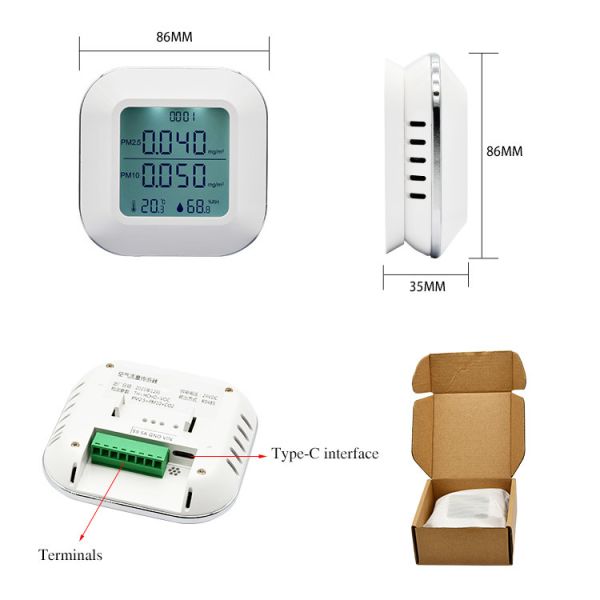

Indoor air quality monitor-AQM-80

1. Product introduction
AQM 80 series multi-parameter atmospheric environment online detector is produced by Shenzhen f technology co., LTD., independent research and development of an online micro air environment comprehensive index monitor, can be used to detect the air environment of PM2.5, PM10, carbon dioxide (CO2), formaldehyde (CH2O), temperature, humidity, TVOC parameters, function is very powerful, basic covers the reflect the air quality index. The instrument adopts the original imported sensor and computing chip, with high precision, high resolution and good stability.

2. Use of instruments
The detector is suitable for air environment monitoring equipment embedded supporting and system integration; such as air environment monitoring instrument, community garden environment monitoring system, fresh air control system, air quality detector, air purification efficiency detector, household environment detection, on-board air environment detector, etc., which can also be expanded to general online detector.

3.Characteristics of instruments
1.Large-screen LCD display;
2.Wired output: RS485 industrial grade signal output, long transmission distance, up to more than 1 km;
3.Wireless output: Lora, NB, 4G, WIFI, Bluetooth, ZIGBEE, etc. (optional functions)
4.Stable and reliable communication, power supply DC5V or DC12-24V;
5.Perfect anti-reverse, overpressure, overflow and anti-interference protection ability;
6.Careful circuit hardware and software design, low failure rate, short stability time;
7.Original high-precision sensor and professional-level signal processing chip, to ensure the accuracy of the sensor data;
8.Multi-directional aerodynamic ventilation hole, air flow is fully uniform, without considering the installation direction;
9.Measurable environmental parameters cover a wide range and can meet the needs of various testing environments;
10.Measurement parameters can be customized according to customer requirements, with flexible and convenient parameter combination;
