RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102
Specifications
Brand Name :
CESTSEN
Model Number :
RAD-S102
Certification :
ISO9001:2015
Place of Origin :
Shenzhen, China
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
5-15 Working day
Packaging Details :
Carton
Measurement type :
Hard β, γ, X-ray.
measuring range :
0.01μSv/h-100mSv/h
Sensor life :
5X109
precision :
about 1600cpm/mR/h
Energy response :
40KeV-1.5MeV
Description

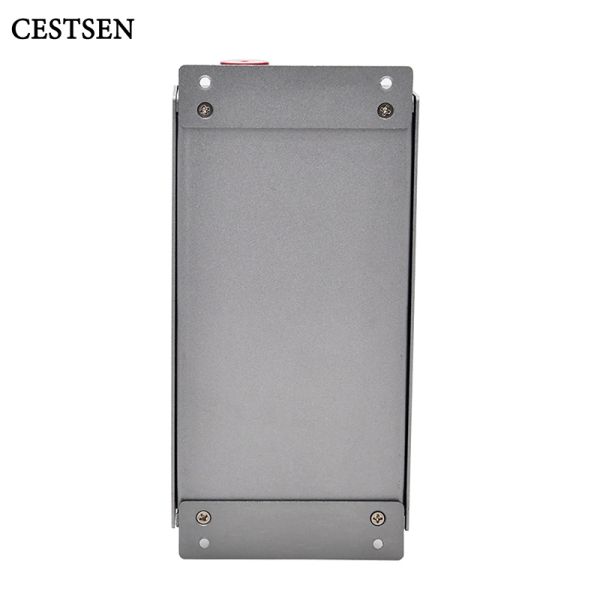

Nuclear radiation sensor probe-RAD-S102 RS485 output

RAD-S102 fixed radiation sensor probe adopts thin-walled metal Geiger counter tube, with stable and reliable data. It can quickly detect the hard β, γ and χ rays in the environment or articles in real time, and quickly find radioactive sources. It is mainly used for radiation monitoring system integration, X-ray machine leakage, security inspection machines, hospitals, pharmaceutical factories and other occasions. It has been calibrated before leaving the factory, and users can directly read the data through RS485 digital communication protocol, and it can also be used online with the host computer of GM-R200 radiation monitoring system.

RS485 Nuclear Radiation Sensor Probe X Ray Sensor RAD-S102

An external audible and visual alarm can be connected to remind the field personnel to pay attention to radiation protection to avoid continuous radiation exposure. At the same time, the measurement data can be uploaded to the radiation safety management system in real time, which is convenient for the storage of measurement data and the query, statistics and analysis of subsequent historical data and alarm information.

Main features:
1.Unit display mR/h, SV/h, CPS.
2.With RS48 output bus and free docking protocol.
3.It can be used immediately after leaving the factory, and has sensitive response without secondary calibration.
4.Built-in thin-walled metal geiger counter tube has long service life.
5.It can be fixed or moved, and it is more convenient to use with our GM-R200 mainframe.

Technical indicators:

Measurement type

Hard β, γ, X-ray.

measuring range

0.01μSv/h-100mSv/h

sensor

Thin-walled metal geiger tube

Energy response

40KeV-1.5MeV

Precision

γ:±20% X:±30%

Alarm function

Sound and light

Sensor life

5X109

data output

RS485 MODBUS protocol

precision

About 1600cpm/mR/h

Power Supply

12-24DCV

operational current

25-70mA

measure

18.7X90X4.7CM

working environment

-20 C to 60 C

after service

The whole machine is guaranteed for one year
