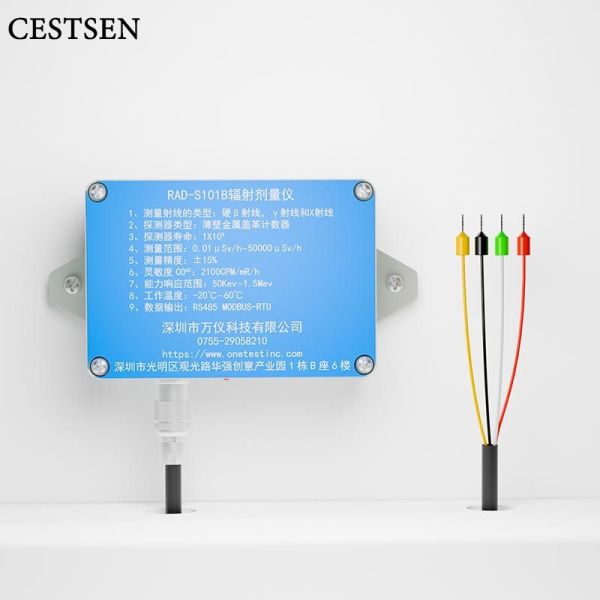

12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev
Specifications
Brand Name :
CESTSEN
Model Number :
RAD-S101
Place of Origin :
Shenzhen
MOQ :
1pieces
Payment Terms :
T/T
Supply Ability :
1000 pieces+One month
Delivery Time :
7-15 Working day
Packaging Details :
Carton
Voltage :
12DCV
Working current :
< 5mA
Data output: :
RS485 MODBUS-RTU
accuracy: :
±15%
Energy response range :
50KeV ~ 1.5Mev
Detector lifespan :
1X1010
Description

digital geiger counter-It can quickly detect β, γ and X-rays in the environment or products

RAD-S101 digital geiger counter module using Russia imported all metal GM counter, data stable and reliable, can real-time fast detection environment or the hard β, γ and X-ray, and quickly looking for radioactive sources, mainly used for radiation monitoring system integration, X-ray machine leakage, security machine, hospitals and other occasions, the factory has been calibrated, users can read data through digital communication protocol.
And can be connected with sound and light alarm, can prompt the site personnel to pay attention to radiation protection, to avoid the harm of continuous radiation exposure. At the same time, the measurement data can be uploaded to the radiation safety management system in real time, which is convenient for the storage of the measurement data, and the query and statistical analysis of the subsequent historical data and alarm information.

12DCV Digital Geiger Counter Sensor X Ray Sensor 50KeV-1.5Mev

Main features:
1.Efficient GM tube detector, with high sensitivity and fast response speed
2. Wall-mounted installation, and can be connected with high decibel sound and light alarm
3. The sensor is optional with GPRS data transmission function; no transmission distance
4. With the standard R S 485 interface, it can transmit nuclear radiation monitoring data in real time and provide online data for the host platform

Qualification:

RAD-S101A

RAD-S101B

RAD-S101

The types of rays to be measured: hard beta rays, gamma rays and X-rays

2. Detector type: Metal Geiger counter (imported from Russia)

3. Detector lifespan: 2X1010

4. Measuring range: 0.15uSv/h to 36,000 USV /h

5. Peak range: 0.1 to 1000 mR/sec

6. Measurement accuracy: ±15%

7. Energy response range

Gamma: 0.1-1.25Mev

Beta: 0.25-3.5Mev

X-ray: 0.03-3.0Mev

8. Operating temperature: -30℃ to 60℃

9. Working humidity: 5%-95%RH (No condensation)

10. Data output: RS485 MODBUS-RTU

11. Voltage: 12DCV

12. Working current: < 5mA

The types of rays to be measured: hard beta rays, gamma rays and X-rays

2. Detector type: Metal Geiger counter

3. Detector lifespan: 1X1010

4. Measuring range: 0.01uSv/h to 50,000 μSv/h

5. Measurement accuracy: ±15% 6. Energy response range: 50 KeV to 1.5Mev

7. Operating temperature: -30℃ to 60℃

8. Working humidity: 5%-95%RH (No condensation)

9. Data output: RS485 MODBUS-RTU

10. Voltage: 12DCV

11. Working current: < 5mA

he types of rays to be measured: gamma rays and X-rays

2. Detector type: Glass Geiger counter

3. Detector lifespan: 1X109

4. Measuring range: 0.01uSv/h to 100,000 USV /h

5. Measurement accuracy: ±15%

6. Energy response range: 50Kev to 1.5Mev

7. Operating temperature: -30℃ to 60℃

8. Working humidity: 5%-95%RH (No condensation)

9. Data output: RS485 MODBUS-RTU

10. Voltage: 12DCV

11. Working current: < 5mA
