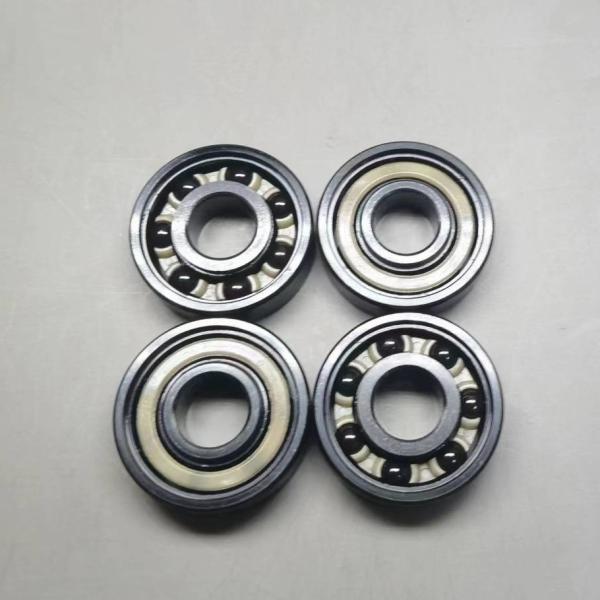

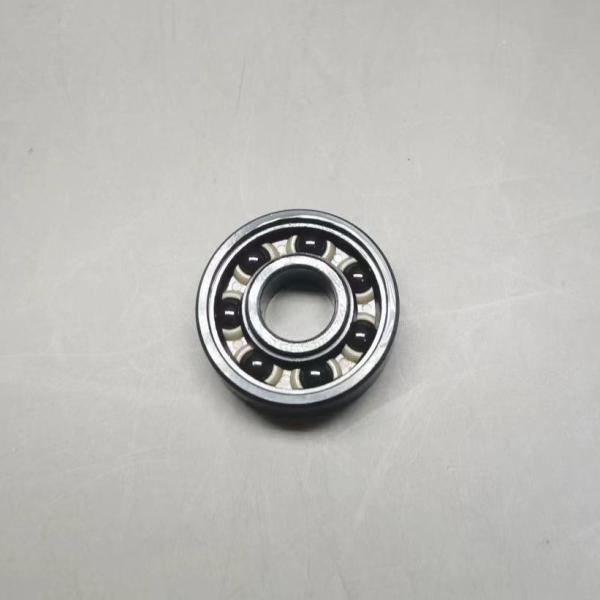

Caged 608 Ceramic Bearings 8X22X7mm HIP Si3N4 Races Balls Peek
Caged 608 Ceramic Bearings 8X22X7mm HIP Si3N4 Races Balls Peek
Caged 608 Ceramic Bearings 8X22X7mm HIP Si3N4 Races Balls Peek
Caged 608 Ceramic Bearings 8X22X7mm HIP Si3N4 Races Balls Peek
Specifications
Brand Name :
CSQ
Model Number :
608
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 5 work days
Delivery Time :
5 work days
Packaging Details :
Plastik box+carton box
Name :
608 Ceramic Bearing
Category :
Miniature ceramic deep groove balls bearings
Model :
608: 8×22×7mm
Material :
Hot isostatic pressure sintered silicon nitride races and balls+peek cage
Precision :
P6/ABEC3 to P4/ABEC7
Ball :
Hot isostatic silicon nitride ball of 3.969 mm
Clearance :
C0/C2/C3 or customized
Pacage :
Plastik box+carton box
Description

608 Ceramic Bearings in material of HIP-Si3N4 Races and Balls+Peek Cage

Description of 608 Ceramic Bearing (HIP-Si3N4 Races and Balls+Peek Cage):

1. HIP-Si3N4 Races and Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Compared with GPS sintered silicon nitride material, the porosity, wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved, which is the preferred material for ultra-high speed and high precision ceramic bearings.

2. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body, and will be fitted to the bearings using our unique design of press-fit double-sided construction.

Performance advantages of 608 Ceramic Bearing (HIP-Si3N4 Races and Balls+Peek Cage):

► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation

Referance data of 608 Ceramic Bearing (HIP-Si3N4 Races and Balls+Peek Cage):

Bearings Model

Load rating

Cr (N)

Load rating

Cor (N)

Max. Speed

Grease (rpm)

Max. Speed

Oil (rpm)
608CE 2898 1379 34000 40000

Main application of 608 Ceramic Bearing (HIP-Si3N4 Races and Balls+Peek Cage):

Because of the above mentioned performance advantages, all ceramic bearing 608 with this kind of material combination are widely used in fishing reels,trolling reels and skateboard, roller skate and so on.
