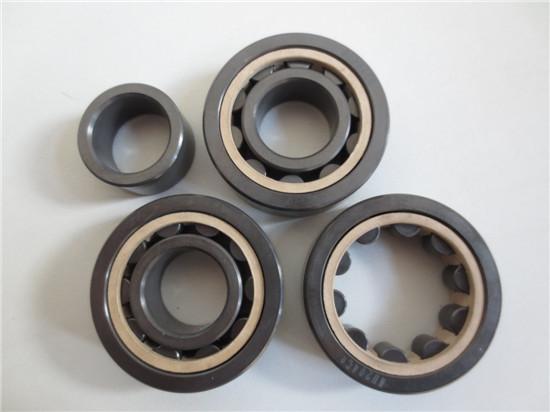

All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
Specifications
Brand Name :
CSQ
Model Number :
NU310
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30-40 work days
Delivery Time :
30-40 work days
Packaging Details :
Foam+cartom box
Name :
NU310 Ceramic Roller Bearing
Category :
Ceramic single-row cylindrical roller bearing
Material :
Si3N4 Races and Rollers+PEEK cage
Form size :
50×110×27mm
Fixing size :
63 (d1 min.)× 101 (D1 max.)mm
Pacage :
Foam+cartom box
Description

NU310 Ceramic Roller Bearing Of Si3N4 Races And Rollers+PEEK Cage

Description of NU310 (Si3N4 races and rollers+Peek cage):

1. Si3N4 races and rollers: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.

2. Peek cage: Peek has high temperature resistance ( can work long time at 260 degrees) excellent mechanical properties, good self-lubrication, chemical corrosion resistance, flame retardant, peel resistance, wear resistance, not strong nitric acid, concentrated sulfuric acid, radiation resistance, super mechanical properties can be used in high-end machinery, nuclear engineering and aviation science and technology.

Performance advantages of NU310 (Si3N4 races and rollers+Peek cage):

► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
NU310CE 110000 112000 5000 7800
