6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
Specifications
Brand Name :
CSQ
Model Number :
6000
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30 work days
Delivery Time :
30 work days
Packaging Details :
Plastik bag+carton box
Name :
Silicon Carbide Balls Bearing 6000
Category :
SSiC deep groove balls bearing
Precision :
P6/ABEC3
Material :
SSiC races and balls +PEEK cage
Designation :
6000: Ø10× Ø26×8mm
Ball :
SSiC balls of Ø4.763mm
MOQ :
50 pieces
Pacage :
Plastik bag+foam+carton box
Description

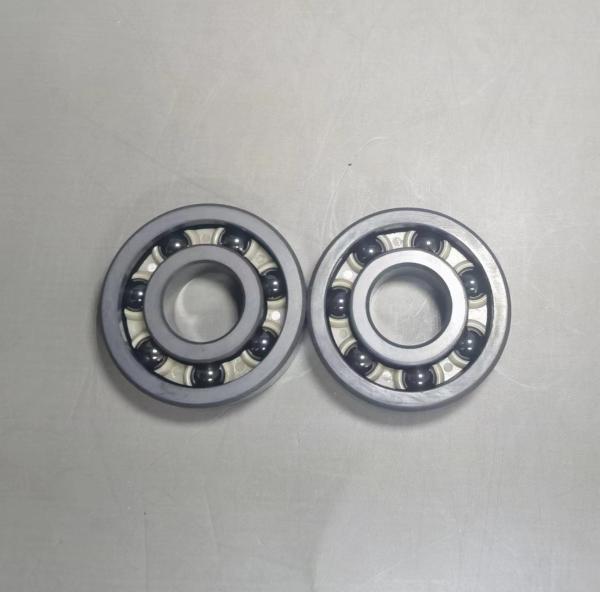

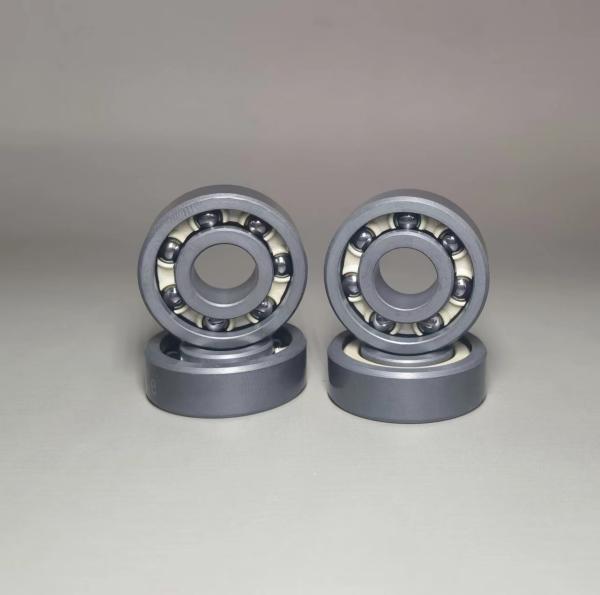

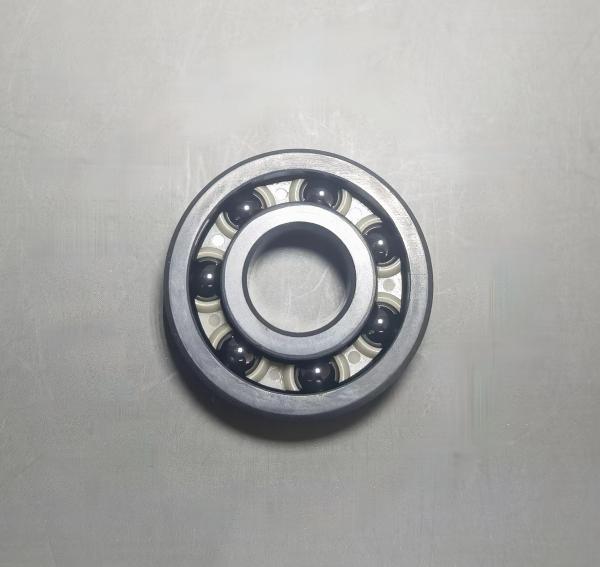

Silicon Carbide Balls Bearing 6000 Fitted With PEEK Cage

Description of Silicon Carbide Balls Bearing 6000:

1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.

2. PEEK cage: Our company adopted PEEK material for the crown structure cage, which have light body and high strength. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.

Material advantages of SSiC (Pressureless sintered silicon carbide):

With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

Refenrence data of Silicon Carbide Balls Bearing 6000:

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
6000CE 4100 1960 37700 44200
