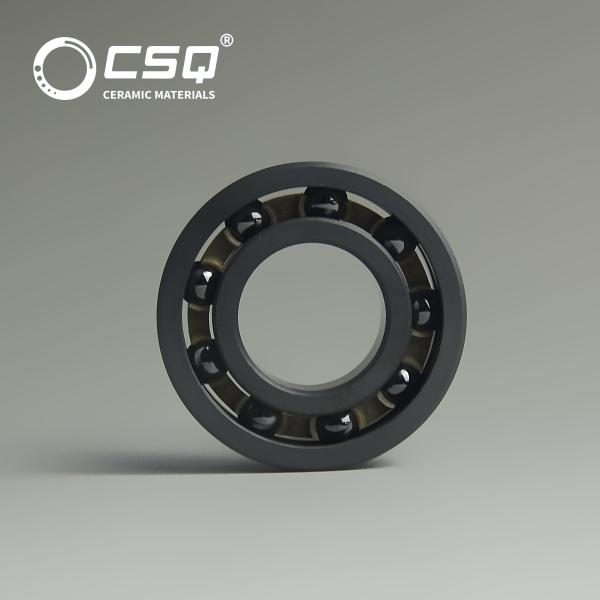

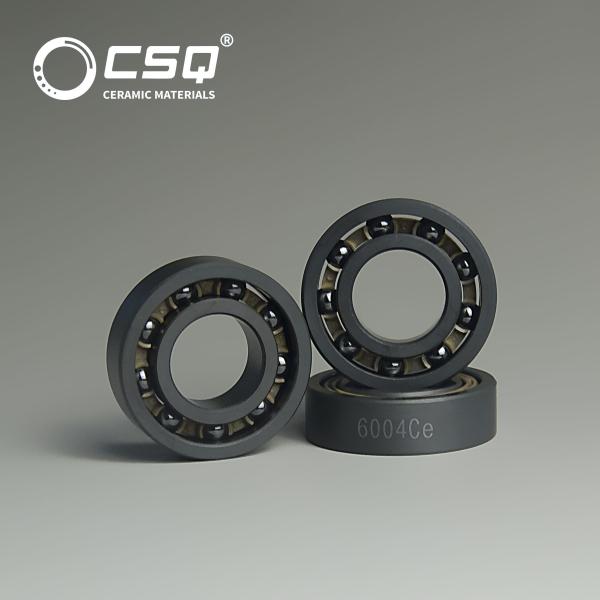

6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm
6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm
6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm
6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm
Specifications
Brand Name :
CSQ
Model Number :
6004
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30 work days
Delivery Time :
30 work days
Packaging Details :
Plastik bag+carton box
Name :
6004 Ceramic Bearing
Category :
Silicon carbide Ceramic Bearing
Material :
Silicon carbide races and balls + PEEK cage
Designation :
6004: Ø20× Ø42×12mm
Seal structure :
Open
Use :
Petroleum, chemical industry
MOQ :
50 pieces
Description

6004 Ceramic Bearing Of SSiC Races And Balls+PEEK Cage With High Precision

Description of 6004 SSiC Ceramic Bearing:

1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material, can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.

2. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.

Performance advantages of 6004 SSiC Ceramic Bearing:

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
