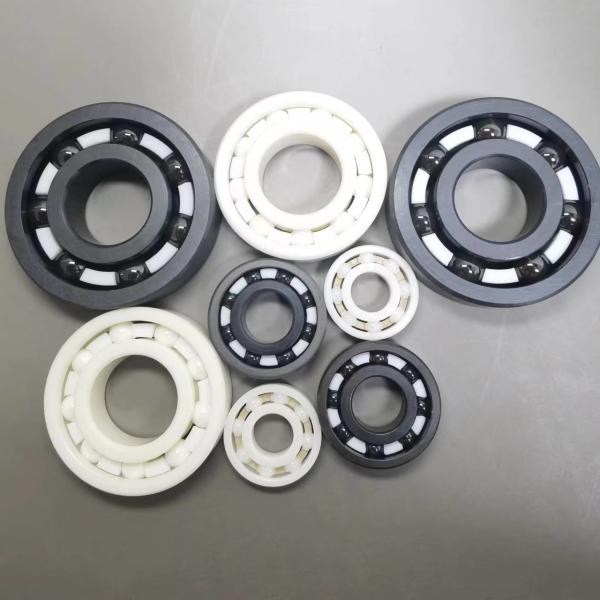

7002 7008 Ceramic Angular Contact Bearings 15x32x9mm 40x68x15mm
7002 7008 Ceramic Angular Contact Bearings 15x32x9mm 40x68x15mm
7002 7008 Ceramic Angular Contact Bearings 15x32x9mm 40x68x15mm
7002 7008 Ceramic Angular Contact Bearings 15x32x9mm 40x68x15mm
Specifications
Brand Name :
CSQ
Model Number :
7000 series (7000-7020)
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Foam+cartom box
Name :
7000 Series Ceramic Angular Contact Balls Bearings
Model :
7000 series (7000-7020)
Precision :
P6/ABEC3 to P4/ABEC7
Race and balls :
In material of Si3N4/SSiC/ZrO2
Cage material :
Peek//PFA/Nylon
Pacage :
Foam+cartom box
MOQ :
50 pieces
Description

7000 Series Ceramic Angular Contact Balls Bearings Of Si3N4/SSiC/ZrO2

Description of 7000 series Ceramic Angular Contact Balls Bearings:


Our company can massive porduce 7000 series ceramic angular contact balls bearings in material of Si3N4 or SSiC or ZrO2 accoding to your requirement Our compaby has our own material recipe advantage and lots of production experiences in ceramic rolling bearings.

Material properties of our ceramic material:

All data of ceramic materials are based on our own experiments.

Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of Ceramic Angular Contact Balls Bearings:

Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
7000CE 10 26 8 4410 2200 55900 75400
7001CE 12 28 8 4860 2640 50700 67600
7002CE 15 32 9 5630 3400 44200 58500
7003CE 17 35 10 6930 4100 40300 53300
7004CE 20 42 12 9450 6050 35100 46800
7005CE 25 47 12 10530 7450 29900 40300
7006CE 30 55 13 13590 10300 26000 33800
7007CE 35 62 14 17190 13700 22100 29900
7008CE 40 68 15 18540 15900 19500 27300
7009CE 45 75 16 21960 19300 18200 24700
7010CE 50 80 16 23400 21900 16900 22100
7011CE 55 90 18 30600 28600 15600 19500
7012CE 60 95 18 31500 30500 14300 18200
7013CE 65 100 18 33300 34500 12870 16900
7014CE 70 110 20 42300 43000 11960 15600
7015CE 75 115 20 43200 45500 11180 14300
7016CE 80 125 22 52650 55500 10400 14300
7017CE 85 130 22 54000 58500 9880 13000
7018CE 80 140 24 64350 69000 9230 12350
7019CE 95 145 24 66150 73000 8840 11700
7020CE 100 150 24 67950 77000 8320 11180

7002 7008 Ceramic Angular Contact Bearings 15x32x9mm 40x68x15mm
