6300 Series 6303 6302 6301 Ceramic Ball Bearings Deep Groove Si3N4 SSiC ZrO2
6300 Series 6303 6302 6301 Ceramic Ball Bearings Deep Groove Si3N4 SSiC ZrO2
6300 Series 6303 6302 6301 Ceramic Ball Bearings Deep Groove Si3N4 SSiC ZrO2
6300 Series 6303 6302 6301 Ceramic Ball Bearings Deep Groove Si3N4 SSiC ZrO2
Specifications
Brand Name :
CSQ
Model Number :
6300 series
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Foam+cartom box
Name :
6300 Series Ceramic deep groove balls bearings
Race and Balls :
In Material Of Si3N4/SSiC/ZrO2
Cage and Seals :
In material of Peek//Nylon/PFA/Rubber
Clearance :
C0/C3 or customized
Precision :
P6/ABEC3 to P4/ABEC7
Pacage :
Foam+cartom box
Description

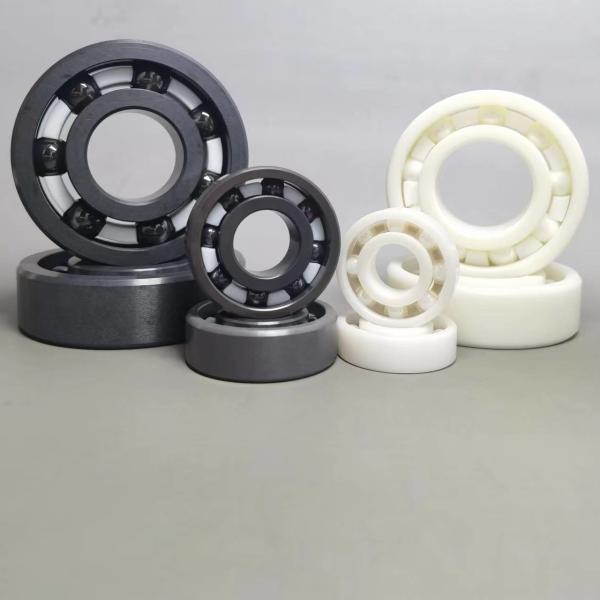

6300 Series Ceramic Deep Groove Balls Bearings In Material Of Si3N4/SSiC/ZrO2

Description of 6300 SeriesCeramic Deep Groove Bearings:


1. The material of races and balls can be chosen among silicon nitride, silicon carbide and zirconia. Our company mainly produces high-performance ceramic bearings in materials of Si3N4, SSiC, ZrO2 and etc, our company has our porfessional recipe advantage and many years production experiences of ceramic bearings in these three kinds of ceramic materials. Welcome your inquiry.


2. The material of cage can be chosen among PEEK, , Brass and Stainless steel, we can customize any material combination according to your requirement. AndThe structure can be open or sealed and the material of seals can be chosen among Stainless steel, Rubber, and Peek.

Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of Ceramic Deep Groove Bearings:

Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
6300CE 10 35 11 7380 3500 29900 35100
6301CE 12 37 12 8730 4200 26000 31200
6302CE 15 42 13 10260 5450 22100 27300
6303CE 17 47 14 12150 6550 20800 24700
6304CE 20 52 15 14310 7900 18200 22100
6305CE 25 62 17 19080 10900 15600 18200
6306CE 30 72 19 24030 15000 13000 15600
6307CE 35 80 21 30150 19100 11440 13000
6308CE 40 90 23 36450 24000 10140 11960
6309CE 45 100 25 47700 32000 9100 10660
6310CE 50 110 27 55800 38500 8320 9750
6311CE 55 120 29 64350 45000 7540 8840
6312CE 60 130 31 73800 52000 7020 8190
6313CE 65 140 33 83250 60000 6370 7540
6314CE 70 150 35 93600 68000 5980 7020
6315CE 75 160 37 101700 77000 5590 6500
6316CE 80 170 39 110700 86500 5200 6110

6300 Series 6303 6302 6301 Ceramic Ball Bearings Deep Groove Si3N4 SSiC ZrO2
