High Temperature Capability And Electrical Insulation Ceramic Ball Bearings

Production Description

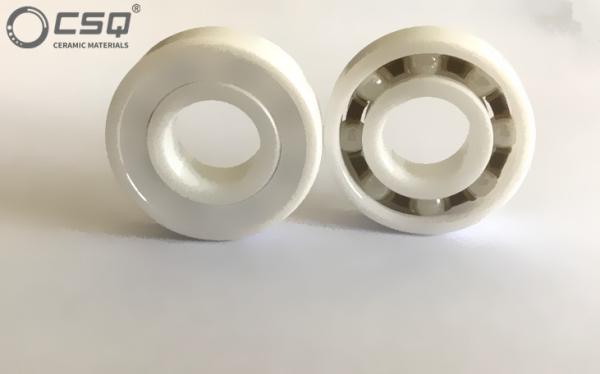

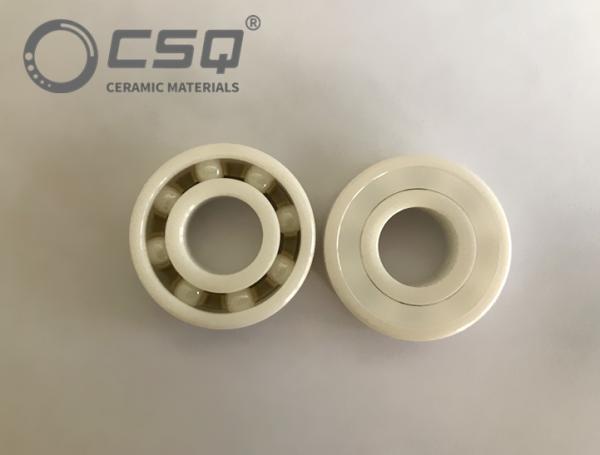

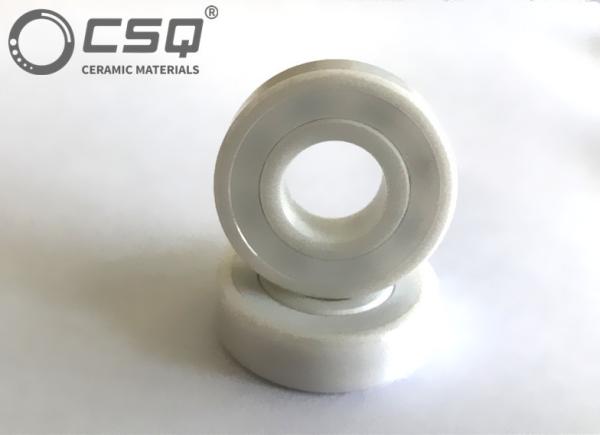

The 6000 series ceramic bearings refer to a specific range of ceramic bearings that fall within the 6000 series designation. Here is a production description of 6000 series ceramic bearings:

•Type: The 6000 series ceramic bearings are typically deep groove ball bearings. Deep groove ball bearings have a versatile design and are capable of supporting radial and axial loads in both directions.

•Ceramic Material: The rolling elements and inner/outer raceways of 6000 series ceramic bearings are made from ceramic materials, such as silicon nitride (Si3N4) or zirconia (ZrO2) or silicon carbide (SSiC). These ceramic materials offer excellent properties like high hardness, corrosion resistance, and low friction.

•Cage Material: The cage or retainer of 6000 series ceramic bearings is commonly made from materials such as nylon or PEEK or PTFE. The cage holds the rolling elements in place and maintains their proper spacing and alignment during operation. So the cage plays an important role in the bearings.

•Size Range: The 6000 series ceramic bearings typically have an inner diameter (ID) ranging from 10 mm to 45 mm, an outer diameter (OD) ranging from 26 mm to 75 mm, and a width ranging from 8 mm to 16 mm. These dimensions can vary depending on application requirements.

•Applications: 6000 series ceramic bearings can be used in the petrochemical industry. Their properties, such as corrosion resistance, high temperature capability, electrical insulation and low friction, make them suitable for petrochemical industry applications.

The advantages of Using 6000 Series Ceramic Bearings in the Pertochemical Industry

►Corrosion Resistance: Ceramic bearings are highly resistant to corrosion, which is particularly advantageous in the petrochemical industry where exposure to harsh chemicals and corrosive environments is common. This resistance helps to extend the bearing's lifespan and reduces the risk of premature failure.

►High Temperature Capability: Petrochemical processes often involve high temperatures, and ceramic bearings can withstand these extreme conditions better than steel bearings. They have excellent thermal stability, allowing them to maintain their mechanical properties and performance even at elevated temperatures.

►High Hardness: Ceramics, such as silicon nitride or zirconia, have exceptional hardness properties. This hardness allows ceramic bearings to resist wear and deformations, even when subjected to heavy loads or abrasive particles in the petrochemical industry. As a result, ceramic bearings tend to have a longer service life and require less frequent maintenance.

►Electrical Insulation: Ceramics are excellent electrical insulators, unlike metals. In certain petrochemical applications, where electrical conductivity needs to be avoided or minimized, such as in electrically sensitive environments or when dealing with flammable materials, ceramic bearings can provide an advantage by preventing the passage of electrical currents.

Zhongxing Shiqiang Technology (Tianjin) Co.,Ltd.

Our company is specialized in producing ceramic balls and ceramic bearings, the technology is inherited from the parent company: Beijing Zhongxing Shiqiang Ceramic Bearing Company, which already has FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 certifications.

The factory covers an area of about 4000 square meters, equipped with automatic production and assembly line, ball grinding machine and other production equipment, as well as a variety of bearing testing equipment. We have professional testing equipment and technicians. All products are 100% strictly inspected before exporting, including appearance defect inspection, roundness, roughness and geometry size, and all products meet ISO international standards.

At present, our company mainly produces ceramic ball bearings, sliding bearings, ceramic balls and ceramic industrial parts. The production materials are high performance ceramic materials, mainly SSIC, Si3N4 and ZrO2 material. And we have a series of professional production and inspection equipments, such as the HIP (High temperature Insostatic Pressing) Equipment is from ABB Sweden, the inspection equipments are mostly from Mitutoty. The products will be strictly 100% inspected before export.

Our main customers are mainly located in Germany, United Kingdom and other European countries and Japan, Korea and other Asian countries.

We dedicate to provide high level products and technical services, our experienced and professional team is committed to handling your enquiry quickly and accurately.

FAQ

1. Q:What the MQQ of your company?
A:MQQ is 20-50 pcs.

2. Q:Could you accept OEM and customize?
A:YES,we can customize according to your sample or drawing.

3. Q:Could you supply sample for free?
A:Yes,we can supply sample for free, but not charge the freight.

4. Q:Does your factory have any certificate?
A:yes.we have FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001.

5. Q:IS you company factory or Trade Company?
A:We are the supplier and we have our own factory.

6. Q:Could you tell me the material of our bearing?
A:We have ZrO2(Zirconia), Silicon Carbide(SSiC), Silicon Nitride(Si3N4), Aluminia(Al2O3).

7. Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,UPS).

8. Q:Could you tell me the payment term of your company can accept?
A:T/T.

9. Q:Your factory how to control the quality?
A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.
