Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
Specifications
Brand Name :
HENGYUAN
Model Number :
Alumina Ceramic Crucible
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Alumina Ceramic Crucible
Color :
Yellow Or White
Shape :
Customization
Usage :
Industry Usage
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
High Thermal Shock Resistance High Alumina Ceramic Crucible For Analyzing And Firing
Product Attributes
Attribute Value
Material Alumina Ceramic Crucible
Color Yellow Or White
Shape Customization
Usage Industry Usage
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

The alumina ceramic crucible is an essential kiln tool designed for firing ceramics. Ceramic firing requires protection from direct flame exposure to prevent discoloration from smoke and dust. These crucibles, crafted from high-quality refractory materials, offer superior softening temperatures that exceed typical firing requirements. Engineered for durability, they provide excellent resistance to rapid cooling and heating cycles, ensuring extended service life in industrial applications.

Technical Specifications
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

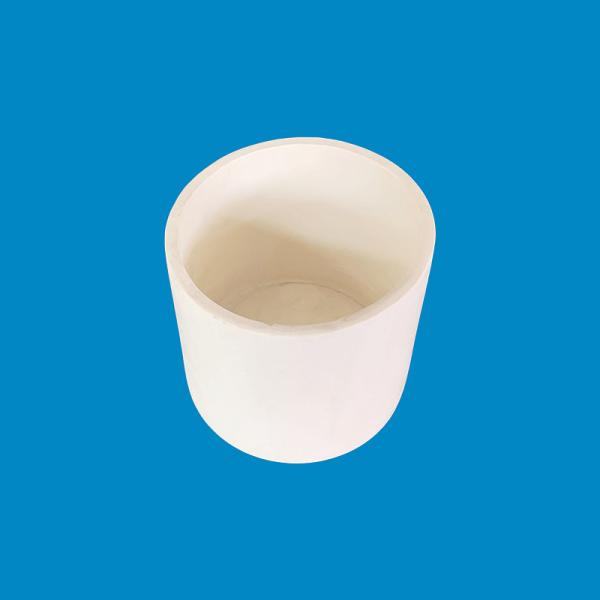

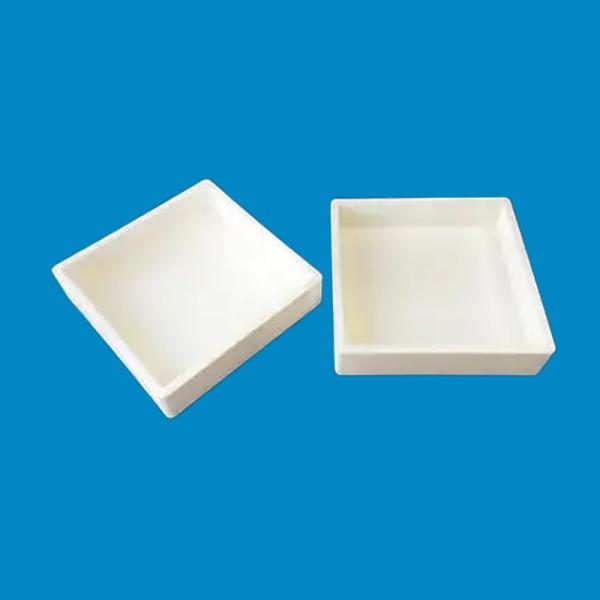

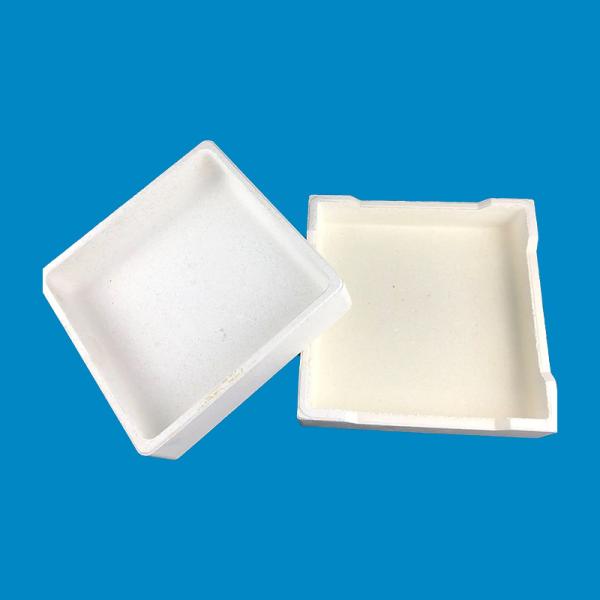

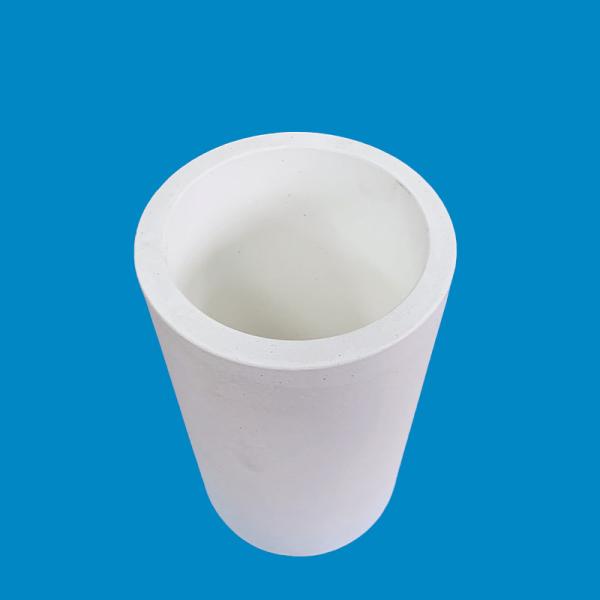

Product Images
Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel Industrial Sintered Ceramic Alumina Crucible Material For Melting Steel
