Specifications
Brand Name :
HENGYUAN
Model Number :
Alumina Ceramic Crucible
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Alumina Ceramic Crucible
Color :
Yellow Or White
Shape :
Customization
Usage :
Industry Usage
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Durable And Heat Resistant Alumina Ceramic Crucible For Analyzing And Firing Processes
Product Attributes
Attribute Value
Material Alumina Ceramic Crucible
Color Yellow Or White
Shape Customization
Usage Industry Usage
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

The material of alumina ceramic crucibles is primarily composed of refractory clay, with high-performance refractory materials such as mullite and corundum mullite as key components. These premium raw materials enable the crucible to maintain exceptional stability during high-temperature firing processes, ensuring reliable performance for ceramic production.

Material Unit Alumina Ceramics Composition
A95% A97% A99% A99.7%
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

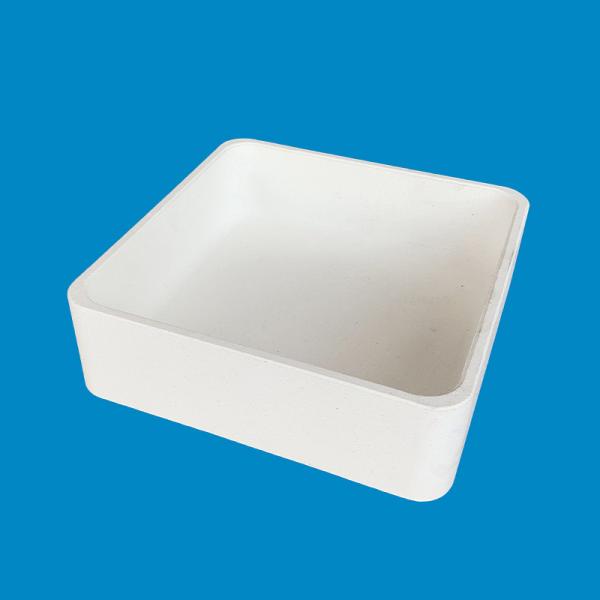

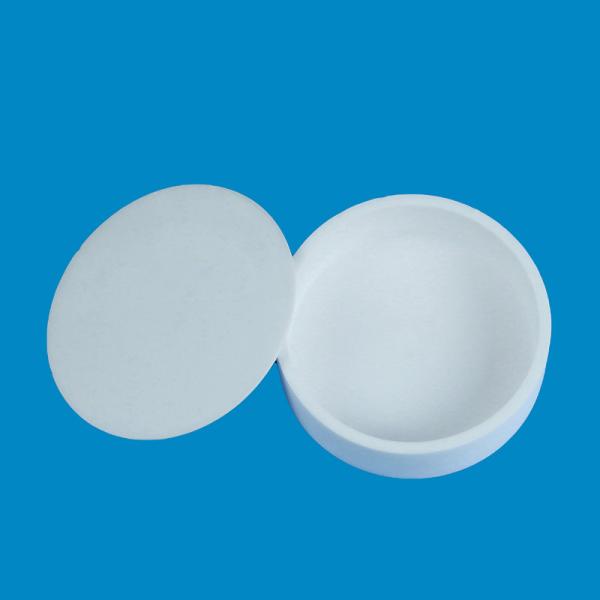

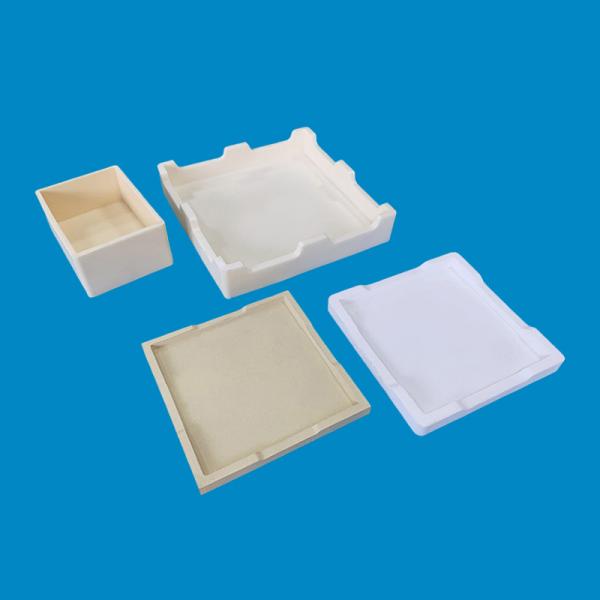

Product Images
Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized
