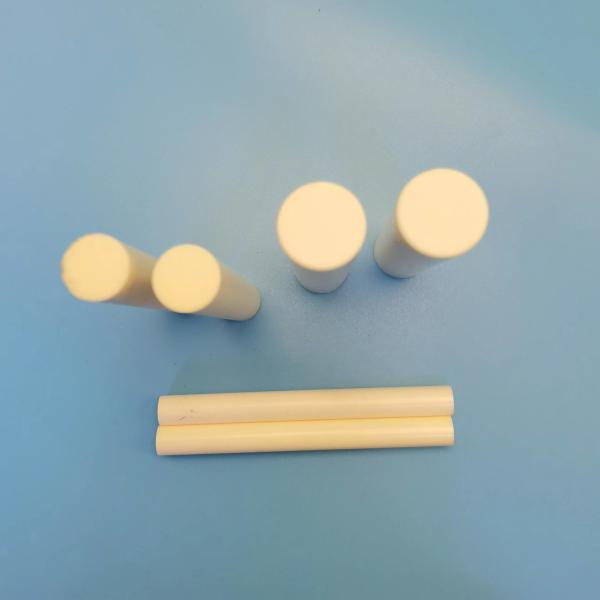

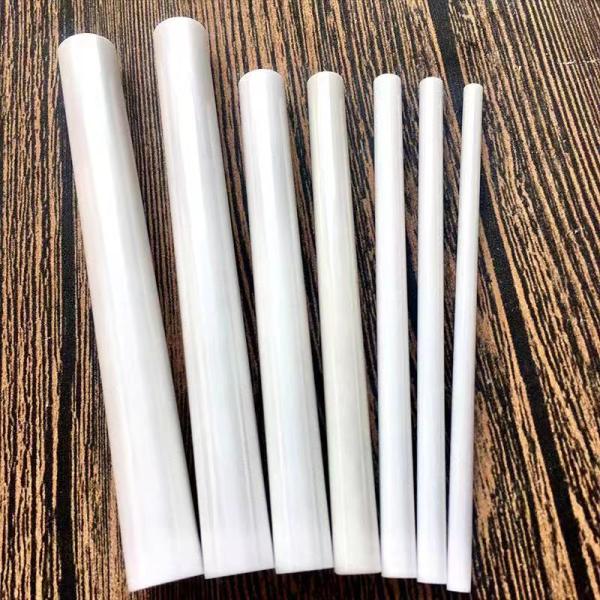

Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
Specifications
Brand Name :
HY
Model Number :
HY-TCB-01
Certification :
CE
Place of Origin :
China Yixing
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
20-30 working days
Packaging Details :
wooden case
AL2O3 :
≥ 99.5%
product name :
Industrial alumina ceramic rod
color :
White
density :
3.85g/cm³
sintering temperature :
1650℃
hardness （HV) :
1700
size :
customization
Description

Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar

product name:Alumina ceramic rod

✔ High wear resistance

Aluminum oxide ceramics have wear resistance, but their hardness is the same as that of corundum, reaching a Mohs hardness of 9, and their wear resistance can rival that of superhard alloys.

✔ Good insulation

Aluminum oxide ceramics have excellent insulation properties, with relatively low high-frequency losses but good high-frequency insulation properties;

✔ High heat resistance

Aluminum oxide ceramics have the characteristics of heat resistance, low coefficient of thermal expansion, high mechanical strength, and good thermal conductivity;

✔ Chemical corrosion resistance

Aluminum oxide ceramics have characteristics such as chemical corrosion resistance and molten metal properties;

✔ Excellent characteristics

Aluminum oxide ceramics have the characteristics of non flammability, rust resistance, and non susceptibility to damage, making them excellent properties that are incomparable to other organic and metal materials;

Physicochemical indexes of alumina solid rod:

Item Unit Typical Values
Physical Properties
Colour Ivory
Density g/cm3 3.85
Alumina Content % 99%
Gas Permeability 0
Water Absorption % 0%
Physical Properties
MONS’Hardness 82
Vickers Hardness(Hv50) Gpa(kg/mm2) 15.7(1600)
Flexural Strength(20℃) Mpa 330
Compressive Strength(20℃) Mpa 2000
Fracture Thoughness(20℃) Mpam1/2 4
Thermal Properties
Thermal Conductivity(20℃) W/(m.k) 27.5
Thermal Expansion Coeffcient 10-6/℃ 7.6
Thermal Shock Resistance △T℃ 200
Maximum Use Temperature ℃ 1650
Electrical Properties
Dielectric Strength KV/mm ＞12
Dielectric Conatant ε0 9-10
Dielectric Loss Angle(1MHz) 0.0002
Volume Resistivity(20℃) Ω.cm ＞10

source factories are complete in variety:

Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar

Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar

Machinery industry, electronics industry, electrical industry, chemical industry, medical industry, textile industry

Alumina ceramic rod ceramic bar palia ceramic bar recipe ceramic bar heater ceramic bar for ceramic bead bar
