Specifications
Brand Name :
HY
Model Number :
HY-TCG-06
Certification :
CE
Place of Origin :
China Yixing
MOQ :
10 pieces
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
20-30 working days
Packaging Details :
wooden case
AL2O3 :
≥ 99.5%
product name :
Industrial alumina ceramic tube
color :
White
density :
3.85g/cm³
sintering temperature :
1650℃
hardness (HV) :
1700
size :
customization
Description

alumina ceramic tube ceramic tube amplifier axial lead ceramic tube fuse ceramic tube definition alumina tube diameter

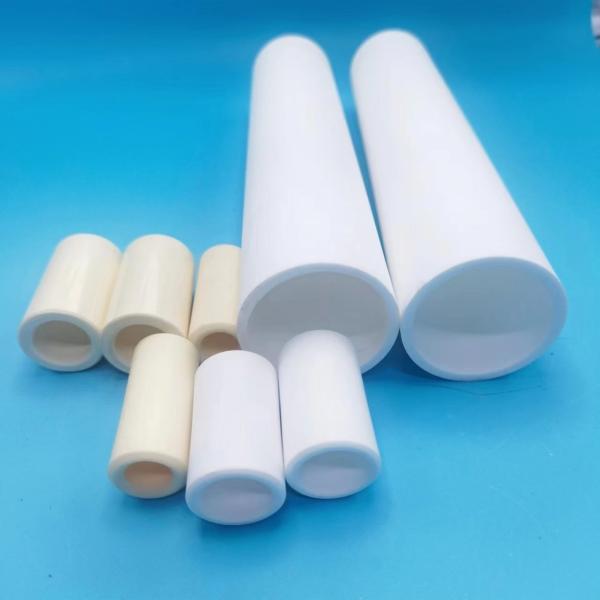

product name:Industrial alumina ceramic tube

Aluminum oxide ceramics are high-purity aluminum oxide products with excellent physical properties and chemical stability. The following are the performance characteristics and applications of alumina ceramics:
1. Good insulation performance: Aluminum oxide ceramics have excellent insulation performance, can withstand high voltage and high frequency electric fields, and can be used to manufacture high-voltage capacitors, dielectric materials, etc.
2. Good chemical stability: Aluminum oxide ceramics have good chemical stability and can resist corrosion from acids, alkalis, solvents, etc. They are widely used in chemical, medical, biological and other fields.
3. Easy to process and shape: Aluminum oxide ceramics can be formed through processes such as pressing, grouting, and spraying to produce various shaped components. For example, they can be used to manufacture ceramic cutting tools, ceramic seals, etc.

Aluminum oxide ceramics have a wide range of applications in industries, scientific research, military and other fields. For example, in automobile manufacturing, alumina ceramics can be used to manufacture wear-resistant components such as brake pads and clutch plates; In the aerospace field, alumina ceramics can be used to manufacture high-temperature engine nozzles, turbine blades, etc; In the medical field, alumina ceramics can be used to manufacture dentures, bone implants, etc; In the chemical industry, alumina ceramics can be used to manufacture reaction vessels, mass transfer equipment, and so on.

Physicochemical indexes of alumina solid rod:

Item Unit Typical Values
Physical Properties
Colour Ivory
Density g/cm3 3.85
Alumina Content % 99%
Gas Permeability 0
Water Absorption % 0%
Physical Properties
MONS’Hardness 82
Vickers Hardness(Hv50) Gpa(kg/mm2) 15.7(1600)
Flexural Strength(20℃) Mpa 330
Compressive Strength(20℃) Mpa 2000
Fracture Thoughness(20℃) Mpam1/2 4
Thermal Properties
Thermal Conductivity(20℃) W/(m.k) 27.5
Thermal Expansion Coeffcient 10-6/℃ 7.6
Thermal Shock Resistance △T℃ 200
Maximum Use Temperature 1650
Electrical Properties
Dielectric Strength KV/mm >12
Dielectric Conatant ε0 9-10
Dielectric Loss Angle(1MHz) 0.0002
Volume Resistivity(20℃) Ω.cm >1014
