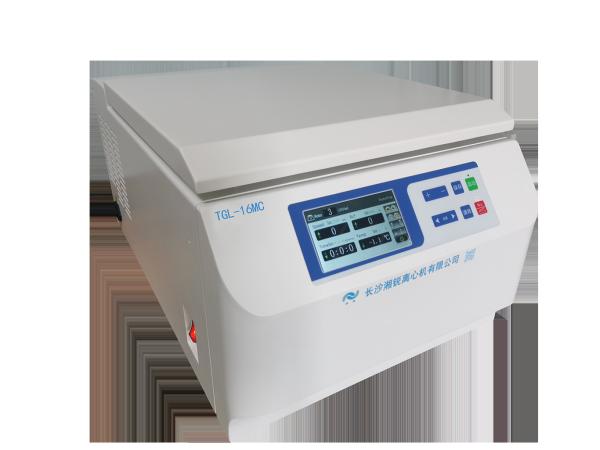

TGL-16MC Desktop Refrigerated Centrifuge Machine High Speed CE Certified
TGL-16MC Desktop Refrigerated Centrifuge Machine High Speed CE Certified
Specifications
Brand Name :
xiangrui
Model Number :
TGL-16MCT
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500PCS/MONTH
Delivery Time :
5-8 working days
Packaging Details :
by plywood box
Model :
TGL-16MCT
Max RCF :
23699×g
Maximum speed :
16500r/min
Maximum capacity :
6x100ml
Speed accuracy :
± 10r/min
Time setting range :
1min~999min
Temperature setting range :
-20～+40℃
Temperature control accuracy :
±1℃
Dimensions (LxWxH) :
630mm×426mm×340mm
Power supply :
AC220V 50Hz 10A
Net weight :
68kg
Overall machine noise :
<58dB(A)
Description

TGL-16MC Desktop High Speed Refrigerated Centrifuge

Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
TGL-16MC has a large-screen LCD display, and TGL-16M has a digital display, humanized interface, and easy and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with an electronic door lock, it has various protection functions such as door cover self-locking, overspeed, overtemperature, etc.; it also has an automatic fault alarm function, which is safe and reliable.
It has 20 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
​

Application areas

TGL-16MC desktop high-speed refrigerated centrifuge is widely used in the fields of clinical medicine, biochemistry, genetic engineering, and immunology.

It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.

The main technical parameters

Model TGL-16MC
Maximum speed 16500r/min
Maximum relative centrifugal force 23699×g
Maximum capacity 6x100ml
Speed accuracy ± 10r/min
Time setting range 1min~999min
emperature setting range -20～+40℃
Temperature control accuracy ±1℃
Compressor unit imported high-performance compressor unit, environmentally friendly refrigerant R404a
Overall machine noise <58dB(A)
Power supply AC220V 50Hz 10A
Overall dimensions (LxWxH) 630mm×426mm×340mm (L×W×H)
Net weight 68kg

Adapt rotor parameters

Rotor number Rotor name Capacity (number of tubes × ml) Maximum rotation speed (r/min) Maximum centrifugal force × g Adapter can be added
NO.01 Angle rotor 12×1.5/2.2ml 16500 18871 0.2-0.5m
NO.02 Angle rotor 8/10/12×5ml 15000 16600 0.2-0.5ml/1.5ml
NO.03 Angle rotor 4×(8×0.2ml) 14000 13590 PCR8*0.2ml test tube
NO.04 Angle rotor 24×1.5/2.2ml 15000 21890
NO.05 Angle rotor 30×1.5/2.2ml 13000 17950
NO.06 Angle rotor 36×1.5/2.2ml 13000 15490
NO.07 Angle rotor 48×0.5ml 16000 23669
NO.08 Angle rotor 48×1.5/2.2ml 13000 17570
NO.09 Angle rotor 12×10ml 13000 16240
NO.10 Angle rotor 8/10×15ml 13000 17960
NO.11 Angle rotor 8/10×15ml ( Z ) 12000 15290 Z ―― Sharp bottom
NO.12 Angle rotor 6×50ml 12000 14650 Can be equipped with 10ml adapter
NO.13 Angle rotor 4×100ml 11000 13200
NO.14 Angle rotor 6×50ml ( Z ) 11000 13120 Z ―― Sharp bottom
NO.15 Angle rotor 12×15ml 11000 13520
NO.16 Mildew standard rotor 2×2/4×96 holes 4000 2300
