GL-10MC High Speed Refrigerated Centrifuge Device 10000r/Min Max Speed 298kg
GL-10MC High Speed Refrigerated Centrifuge Device 10000r/Min Max Speed 298kg
Specifications
Brand Name :
xiangrui
Model Number :
GL-10MC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
50 sets/month
Delivery Time :
5-8 work days
Maximum speed :
10000r/min
Maximum relative centrifugal force :
18380xg
Temperature control accuracy :
±1℃
Overall dimensions (LxWxH) :
810mmx710mmx1220mm
Machine noise :
≦65dB(A)
net weight :
298kg
Description

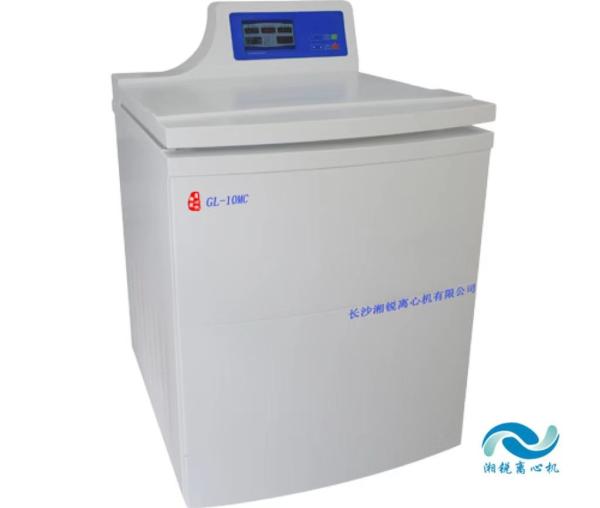

GL-10MC High Speed Refrigerated Centrifuge

Main technical performance
． Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.

． It adopts imported high-performance compressor unit and fluorine-free refrigerant R404a, which meets environmental protection requirements.

． Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.

． Large-screen LCD display, humanized interface, simple and convenient operation.

． Real-time reading conversion and setting between rpm/RCF, convenient and fast.

． Equipped with an electronic door lock, it has multiple protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; it also has an automatic fault alarm function, which is safe and reliable.

． It has 10 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.

The main technical parameters

model GL-10MC
Maximum capacity 6×1000ml
Time setting range 1min~99h59min
Speed accuracy ±20r/min
Temperature setting range -20～+40℃
compressor unit Imported high-performance compressor unit, environmentally friendly refrigerant R404a
power supply AC220V 50Hz 40A

Application areas

GL-10MC high-speed refrigerated centrifuge is specially designed for customers with high speed requirements and can be widely used in clinical medicine, bioengineering, genetic engineering, pharmaceuticals and other fields.

Adapt rotor parameters

Rotor number Rotor type Rotor capacity Maximum speed Maximum relative centrifugal force
NO.1 angle rotor 6×300ml 10000xg 18380xg
NO.2 angle rotor 6×500ml 8000xg 11680xg
NO.3 angle rotor 6×1000ml 7000xg 11500xg
NO.4 angle rotor 4×1000ml 4200xg 4790xg
