Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Bearing, Gearbox, Motor, Gear
Brand Name :
Juneng
Place of Origin :
Jiangsu, China
voltage :
Customized
power(w) :
90000~132000
dimension(l*w*h) :
2.8*1.5*2.2m
weight :
5500
warranty :
1 Year
application fields :
Starch industry
raw material :
Wheat, Corn
output product name :
Starch
Product Name :
Gluten separator
Process Product :
Cassava starch
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Material :
Food Grade Stainless Steel
Voltage :
according to buyer
Capacity :
22-115 T/H
Constitute :
Vertical
Condition :
New
Applicable Industries :
Starch Industry
MOQ :
1 set
Price :
$110,000-120,000 / set
Description
Product Description
Large Capacity Corn Starch Concentration Centrifuge Separator

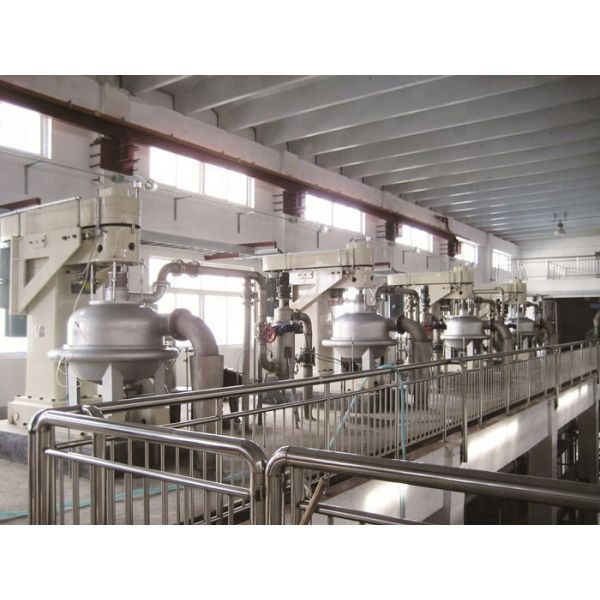

DPF800 disk separator is the main equipment used in the big starch process industry.

DPF800 disc separator with the upper belt transmission structure, and adopt the upper suspended supporting type for the main shaft, using nozzle discharge. So it is benefits significantly higher than other structures of the starch separators.

DPF series disc separator applys to :
1、Corn startch and gluten separation;
2、Concentration of gluten;
3、Pre-concentration of starch milk;
4、Clarify; also suitable for other similar product’s separation.
Specification

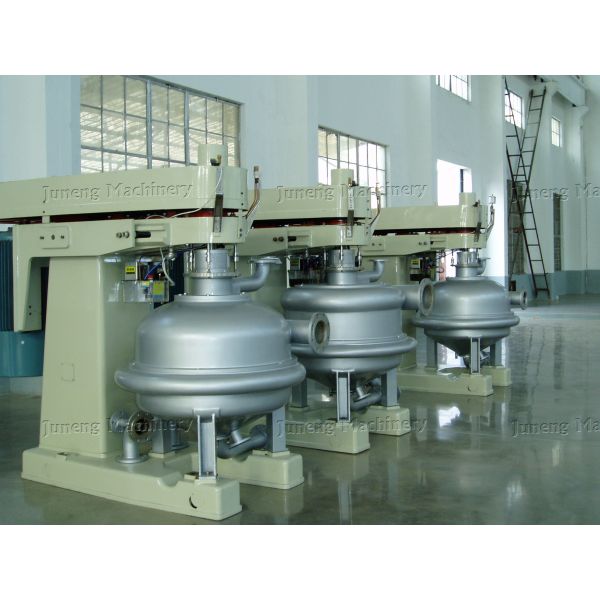

The separator mainly consists of base, cantalever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute and lower volute, etc.

Among which the base is the frame part of machine, base is composed of axis and pedestal’s connection. Lower shell and lifting oil cylinder cover is directly fixed to the base

Suspension branch is used to instal motor ram and axis cantalever part, upper volute is suspended on the suspension branch with three steeve. Suspension branch is connected to vertical axis part(on the pedestal) through ascending oil cylinder, the suspension branch can ascend driven by hydraulic pump station; when the suspension branch ascend to certain height, push it with hand, it will rotate according to oil cylinder’s axes.

Drum is composed of drum axis, disk rack, drum body, drum cover, seal ring, disk, refluence pipe, diffluence pipe and nozzle. The drum is connected to main axis through its big nut.

In the axis suspension facility, it is equipped with axis, bearing, etc. on the upper side of axis, it is equipped with triangle
strap. The axis suspension facility is equipped to the suspension branch. On the two sides of motor ram is rolling wheels, which make the ram move in the guide rail. On the upper side of suspension branch is spring tensioner, which used to regulate the tension power of triangle adhesive tape.

Main Technological Parameters
Inner Diameter of Drum
800mm
Nozzle Diameter
1.8 ~ 3.4 mm
Separation Factor
Max 4600
Main Axis Rotation Speed
Max 3050 rpm
Motor Power
90~132KW
Company Profie
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City ,permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.
Packing & Delivery
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator

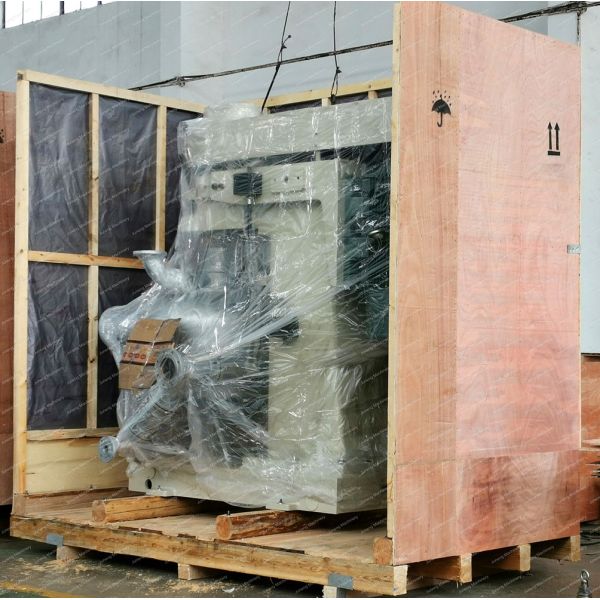

Plastic film package inside, wooden case package outside.
Test & Inspection

1. Material Test Report 2. Magnetic Particle Examination

3. Nondestructive Examination 4. Liquid Penetrant Examination

5. Dynamic Balancing Test 6. Radiographic Examination

Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Large Capacity Corn Starch Concentration Centrifuge Separator
Certifications

Recently years, we achieve plenty of honors and we have obtained various certifications , such as ASME U (Certificate No. : 38793) , ISO 9001:2015 (Certificate No. : CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), ISO 45001:2018 (Certificate No.: CN1299-SC) , BV and CE .

Large Capacity Corn Starch Concentration Centrifuge Separator
Exhibition

Exhibitions We Attended.

We have attended various exhibitions during these years, such as ACHEMA, AchemAsia 2019, ProFood Tech --The Food & Beverage Processing Event, 21st Interphex Week Japan, Spring and Autumn Conton Fair and other domestic fairs.

Large Capacity Corn Starch Concentration Centrifuge Separator
FAQ
Large Capacity Corn Starch Concentration Centrifuge Separator

1 ) Q: How can we visit your factory?

A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.

3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .

5) Q: I haven ' t done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.

6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
