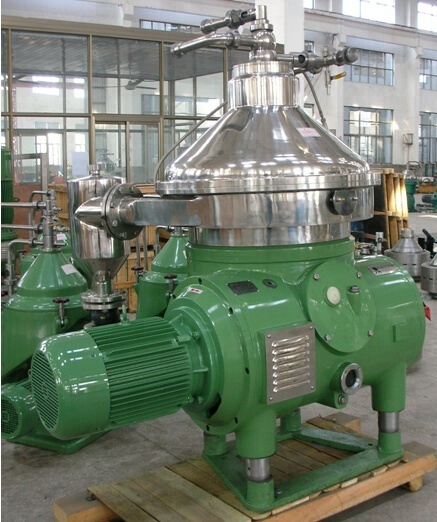

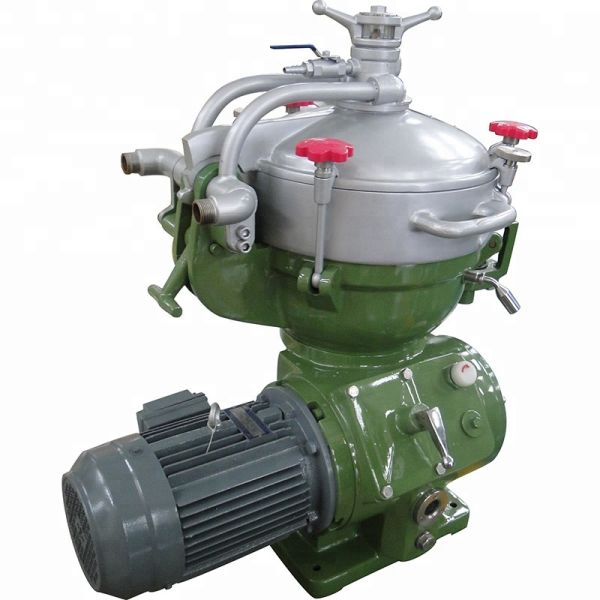

Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Specifications
Place of Origin :
Jiangsu, China
product type :
Separator
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Bearing, Gearbox, Motor, Gear
Brand Name :
Juneng
voltage :
380 V
power(w) :
22000
dimension(l*w*h) :
1850*1550*2050
warranty :
1 Year
key selling points :
Remote Control
Capacity :
6000-15000L/H
Weight (KG) :
2200
setting speed :
6000 RPM
Name :
Bio-diesel oil waste oil disc separator
Material :
Stainless Steel
Function :
Oil Filter
Structure :
Vertical Compact Structure
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
MOQ :
1 set
Price :
$73,000-73,529 / set
Description
Product Description

Product Application

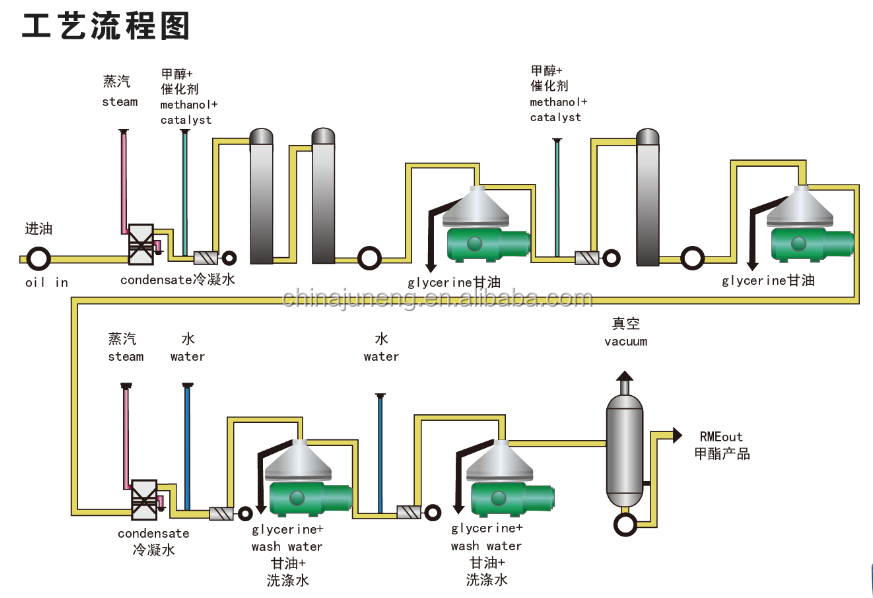

A common view has been formed globally that waste oil and hogwash oil can be transformed into biological diesel oil. This not only solve the problems related to food safety, but also generates considerable economic benefits. Juneng has carried out close cooperation with relevant institutes and universities to make the centrifugal separation technology play an irreplaceable role in the purification process of waste oil, and the technology has been successfully applied in more than thirty projects at home and abroad.


Successful applications:
1, Separation of methyl ester, glycerin, catalyst, de-soap, methanol
2, Methyl washing
3, Extraction of fatty acids

4, Glycerol desalination

Model
Treatment capacity (L/H)
Inlet pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight(Kg)
Outline dimension (mm)
DBSY204
700-2000
0.05
0.1-0.25
4
408
810*850*1350
DHSY360
1000-2500
0.05
0.1-0.25
7.5
1280
1500*1150*1500
DHSY470
4000-7000
0.05
0.1-0.3
15
1880
1800*1200*1800
DHSY550
6000-15000
0.05
0.1-0.3
22
2200
1850*1550*2050
DHSY700
8000-25000
0.05
0.1-0.3
37
3300
2050*1700*2300
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price

Main Features

1. High speed, stable operation,

2. fully closed of inlet and outlet system,

3. low noise,good separation, high oil rate,

4. fully automatic control ,easy to operate.

5. Low cost of operation, maintenance and serving
Certifications
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Detailed Images
Solid Liquid Biodiesel Centrifuge Separator Machine Price

Machine Parts

Name: Disc of drum

Brand: Juneng

Original: China

Domestic famous engines, strong driving force

Main Features

Name: Shaft
Brand: Juneng
Original: China
Domestic famous engines, strong driving force

Solid Liquid Biodiesel Centrifuge Separator Machine Price
Our Service
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Solid Liquid Biodiesel Centrifuge Separator Machine Price

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Solid Liquid Biodiesel Centrifuge Separator Machine Price
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
