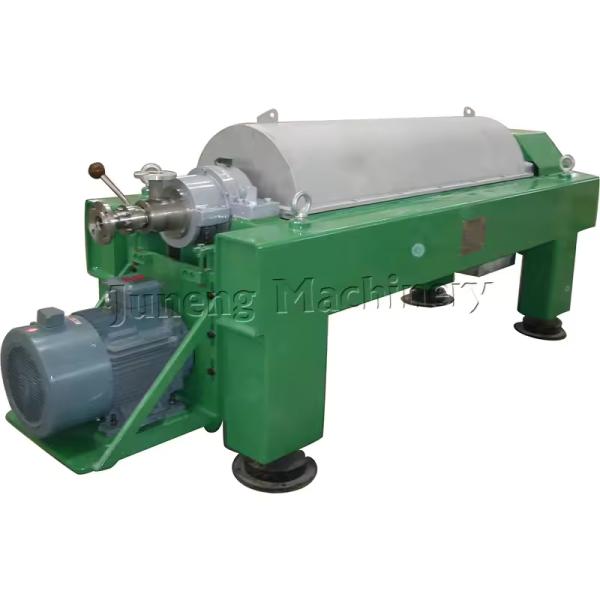

Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Specifications
Brand Name :
Juneng Machinery
Model Number :
LW450W
Certification :
CE/ISO
Place of Origin :
Jiangsu，China
MOQ :
1 set
Price :
$65000-66000 / set
Payment Terms :
T/T,L/C
Supply Ability :
40 sets per month
Delivery Time :
60 working days
Packaging Details :
Standard Wooden Case
Core Components :
PLC, Bearing, Motor
Weight (KG) :
3200
Dimension(L*W*H) :
4380*1080*1360
Power(W) :
30000W/11000W
Setting Speed :
3 000 RPM
Discharge :
Self-cleaning (PLC control)
Function :
Liquid Liquid Soild Centrifge
Capacity :
5–28 m³/h
Description
Main Features
• All parts coming into contact with the product are made of stainless steel.
• 3-phase AC motor for controlled torque starting via frequency converter
• Approximately 80 to 90 % of the oil is recovered.
• Low personnel costs due to continuous and automatic operation.
• Highest g-force for higher solids output
• Adjustable bowl speed via VFD
• Automatic adjustment of differential speed via VFD
• Two motor drive
• Belts for both primary motor and secondary motor
Working Principle
A decanter centrifuge operates as a horizontal screw discharge, continuously operating sedimentation device. The material (crude palm oil) enters the centrifuge through the central feed pipe. Driven by centrifugal force and material pressure, it passes through the distributor assigned to the drum. The dense solid phase deposits on the drum wall, is conveyed to the cone of the drum body by the screw conveyor, and then descends from the discharge port into the solid collector tank. Meanwhile, the relatively lighter liquid phase (processed palm oil) does not move with the screw due to its fluidity, but overflows through the outlet into the liquid collector tank.
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Available Models & Specifications
Model Drum Diameter (mm) Inlet Capacity (m³/h) Main/Auxiliary Power (kW) Weight (kg) Dimensions (mm)
LW250 250 1-4 11/4 1200 2650×720×900
LW(F)250 250 1-4 11/4 1200 2650×720×900
LW250(W) 250 1-5 11/4 1300 2750×720×900
LW350 350 5-15 22/5.5 2000 3585×980×1238
LW(F)350 350 5-15 22/5.5 2000 3585×980×1238
LW350(W) 350 5-18 15/5.5 2200 3412×1090×950
LW(S)350 350 2-10 22/5.5 2000 3676×980×1238
LW450 450 5-20 30/11 3000 4380×1080×1360
LW(F)450 450 5-20 30/11 3000 4380×1080×1360
LW450(W) 450 5-28 30/11 3200 4380×1080×1360
LW(S)450 450 5-15 37/11 3200 4195×1080×1360
LW520 520 10-26 45/15 5000 4840×1160×1465
LW(F)520 520 10-26 45/15 5000 4840×1160×1465
LW520(W) 520 10-35 16742 5000 4840×1160×1465
LW550W 550 10-45 20394 6500 5038×1388×1578
LW650A 650 7-9T 110 8000 4407×2280×1340
LW650(W) 650 25-60 75/22 8000 5500×2280×1340
LW720A 720 8-10T 132/160 11000 4410×3280×1450
LW720(W) 720 35-85 110/30 13000 5600×3280×1450
Model Designations: F: Explosion-proof, W: Waste water, S: Three-phase separator, FS: Explosion-proof three-phase
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Certifications
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Company Profile
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Nanjing Juneng Machinery (China) Co., Ltd.
Over the years, Juneng Machinery has been committed to the R&D and production of high-tech decanter centrifuge series, and has obtained a number of patents. The company boasts a wide range of products with diverse models, multiple functions, high separation coefficients and wide applications. At present, it has become an important supplier of decanter centrifuges at home and abroad.
Quality Inspection / Quality Control Department
  • Factory visits / audits shall be conducted before other purchases.
  • Materials shall be inspected during production and before shipment.
  • Comply with technical requirements.
Packing & Delivery
Packaging
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Transport: Ocean shipping sea transportation transport by sea
Container: 20'GP, 40'HC or Shipping LCL
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Pre-Sales Service
  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
After-Sales Service
  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.
Our After-sales service engineer would always be asked to try their best to make the equipment goes well. Would you please give them some words on whether they are professional or not. We will appreciate if you could help finish our Feedback of Installation and Commissioning.
Related Products
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Small capacity disc separator
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Self-cleaning candle filter
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Decanter centrifuge
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Oil bleaching filter system
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Disc separator whole system
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Horizontal plate filter
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Scraper centrifuge
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Multi-bags filter
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Disc separator directly connected
FAQ
Food Grade Soybean Oil Extraction Decanter Centrifuge Machine, Continuous Solid Liquid Separator Machine For Vegetable Oil Refining
Q1: How can we visit your factory?
A1: If you come from abroad, please fly to Shanghai Airport, and we can pick you up there. If you come from a domestic city, you can take a flight or train directly to Wuxi Station. We will pick you up at the railway station.
Q2: How do you ensure product quality?
A2: Our company is a state-owned enterprise with more than 30 years of experience. We implement strict operating procedures. Advanced processing machines ensure the precision of all components. Our workers hold operation certificates. All parts undergo multiple processes. Transmission and electrical parts are from internationally famous brands. A series of tests and inspections are carried out throughout the production process.
Q3: What payment terms does your company accept?
A3: We accept most payment methods, mainly T/T (Telegraphic Transfer) and L/C at sight.
Q4: How long is the warranty period of your products?
A4: Our official warranty period is 12 months after commissioning.
Q5: I have not done business with your company before. How can I trust your company?
A5: Our company has been on Albaba.com for 10 years, longer than most of our other suppliers. We have been a Gold Supplier for many years. In addition, we have obtained many authoritative certificates, such as CE, ISO9001, and Albaba Onsite Check Certificate. We hope the above is convincing enough. Our Trade Assurance limit is USD 42,000 and is still increasing.
Q6: What are your shipping terms and delivery time?
A6: Delivery time depends on your order quantity. Normally it is 20 days. For some customized machines, 30 days is required.
Q7: Do you offer any discounts?
A7: I will definitely try my best to help you get them at the best price with high-quality service.
