Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Juneng
Certification :
ISO9001
MOQ :
1 unit
Price :
$55,000-56,716 / unit
Payment Terms :
T/T, L/C
Supply Ability :
40 set / months
Delivery Time :
60 working days
Packaging Details :
Standard Wooden Case
product type :
Separator
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Bearing, Motor
voltage :
Customized
power(w) :
45kw
dimension(l*w*h) :
2030*1960*1530mm
warranty :
12 Months
key selling points :
Long Service Life
Capacity :
100L
Weight (KG) :
5500
setting speed :
1550
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
continuous centrifuge separator for baking soda
Application :
Starch
Voltage :
220V/380V
Type :
Fully Automatic
Applicable Industries :
Food & Beverage Factory
Description
Product Description

Product Application

Description of Siphonic Centrifuge:
Siphonic Centrifuge is a type of full-automatic centrifuge with continuously working and batch operation. According to the structure, it can be divided into Siphonic Scraper Centrifuge (GKH series) and common scraper centrifuge (GK series).
The scraper centrifuge can be switched between automatic and manual operation, so it can realize the periodic cyclic operation of feeding, dehydration, washing and discharging of the feed material.
Compared with common scraper centrifuge, the sophonic scraper centrifuge has siphonic force like vacuum, so it has better production capacity and separation effect. Especially, it is suitable for the feed material which has small solids, high viscosity, slow filtration and that needs to wash the filter cake.

Model & Parameter
Item/Type
GKH800-N
GKH1250-N
GKH1600-N
Drum diameter(mm)
800
1250
1600
Drum length (mm)
450
600
1000
Drum volume (L)
100
355
830
Loading capacity (Kg)
150
450
996
Drum speed (r/min)
1550
1200
950
Maximum separation factor
1070
1006
799
Motor power (Kw)
45
90
132
Size (mm)
2030*1960*1530
2685*2300*1900
4050*2745*2295
Weight (Kg)
5500
10500
16550
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Processing capacity and Separation parameters
Model
Capacity(wet base) T/h
Moisture %
Solid phase loss %
GKH800N
0.8-2.5
5-35
0.05
GKH1250
3.5-6.5
5-35
0.05
GKH1600
6.5-10
5-35
0.05

Main Features

GKH series siphonic centrifuge is especially used in the occasion of the higher production, lower moisture in residue of the cake and sufficient washing.
It is widely used in industry area of the solid-liquid separation of the raw material and intermediate products, such as foodstuff, pharmacy, chemical, national defence and so on.

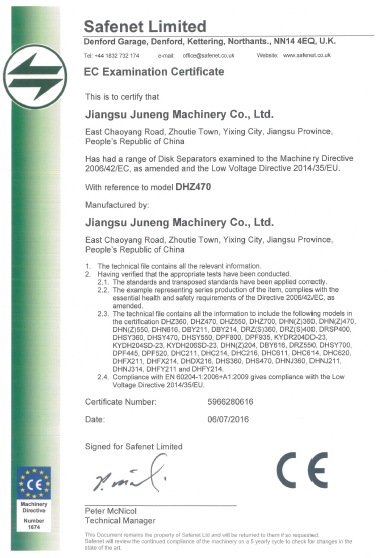

Certifications
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Our Service
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Continuous Centrifugal Oil Separator 45kw Scraper Centrifuge For Baking Soda
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
