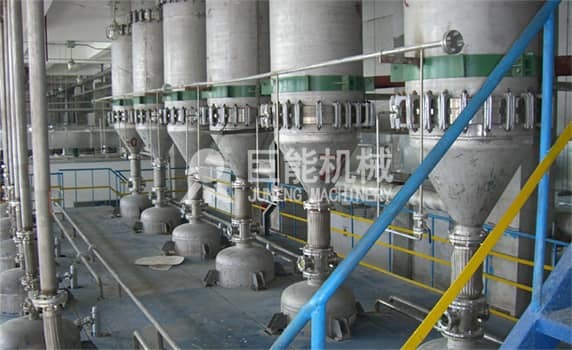

WFE Series Rotating Scraper Thin Film Evaporator for Heat-Sensitive Materials
WFE Series Rotating Scraper Thin Film Evaporator for Heat-Sensitive Materials
Specifications
Supply Ability :
50 Sets per Month
Heating Area :
0.2-10 m²
Certification :
ISO 9001:2015, CE
Scraper Type :
H-Sliding / T-Flexible / J-Hinge / G-Fixed / Z-Roller / L-Spiral
Price :
USD 8000-100000 / Set
Brand Name :
Juneng
Application :
Chemical, Petrochemical, Pharmaceutical, Pesticide, Daily Chemical, Food, Fine Chemical
Model Number :
WFE Series
Delivery Time :
30-60 working days
Place of Origin :
China
Model :
WFE-0.2 ~ WFE-10
MOQ :
1 Set
Payment Terms :
T/T,L/C
Packaging Details :
Export-grade wooden case packaging
Inner Diameter :
125-900 mm
Total Height :
1825-7210 mm
Description
WFE Series Rotating Scraper Thin Film Evaporator for Heat-Sensitive Materials
Product Overview

The WFE series high-efficiency rotating scraper thin film evaporator is designed for heat-sensitive materials, featuring models from WFE-0.2 to WFE-10. This advanced evaporator forces feed material into a thin film using rotating scrapers and performs falling-film evaporation under vacuum conditions.

Key performance characteristics include high heat transfer coefficient, superior evaporation intensity, minimal residence time, and extensive operating flexibility. These features make it particularly suitable for evaporation concentration, degassing, desolvation, distillation, and purification of heat-sensitive materials, high-viscosity substances, and easily crystallized materials containing particles.

The WFE series finds extensive application across multiple industries including chemical, petrochemical, pharmaceutical, pesticide, daily chemical, food, and fine chemical sectors.

Model Designation & Scraper Types

Model format: WFE

Available scraper types:

  • H - Sliding Scraper
  • T - Flexible Scraper
  • J - Hinge Scraper
  • G - Fixed Scraper
  • Z - Roller Scraper
  • L - Spiral Scraper
Technical Specifications
Model Heating Area (m²) Inner Diameter (mm) Total Height (mm)
WFE-0.2 0.2 125 1825
WFE-0.5 0.5 210 2550
WFE-1 1 300 3250
WFE-3 3 400 5100
WFE-4 4 500 5850
WFE-6 6 600 6500
WFE-8 8 800 7230
WFE-10 10 900 7210
WFE-12 12 1000 8370
WFE-15 15 1100 8850
WFE-20 20 1200 10650
WFE-30 30 1400 12860
WFE-50 50 2000 13000
WFE-80 80 2600 21000
WFE-100 100 2800 22000
Key Features & Advantages
  • High heat transfer coefficient for efficient evaporation
  • High evaporation intensity with large operating flexibility
  • Short residence time protects heat-sensitive materials from thermal degradation
  • Handles high-viscosity and easily crystallized materials containing particles
  • Six scraper types available: Sliding, Flexible, Hinge, Fixed, Roller, Spiral
  • Compact model range from WFE-0.2 to WFE-10 (heating area 0.2-10 m²)
  • Widely used in chemical, petrochemical, pharmaceutical, pesticide, daily chemical, food and fine chemical industries
FAQ
What is the minimum order quantity (MOQ)?
1 set
What is the delivery time?
30-60 working days
What payment terms do you accept?
T/T and L/C
Can I customize the scraper type?
Yes. Six scraper types are available: Sliding, Flexible, Hinge, Fixed, Roller and Spiral
Which materials is this evaporator suitable for?
Heat-sensitive, high-viscosity and easily crystallized materials containing particles
Do you provide certifications?
Yes, the unit is ISO 9001:2015 and CE certified
