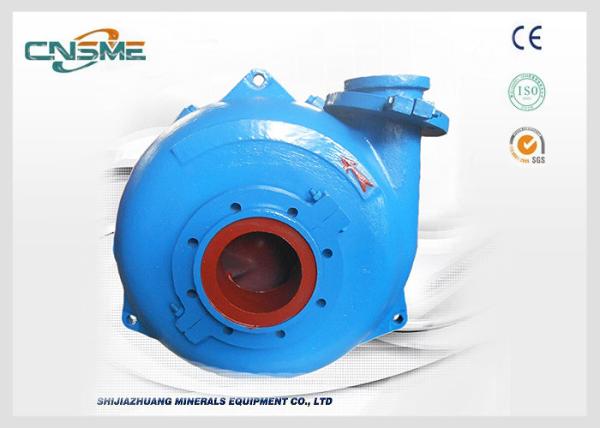

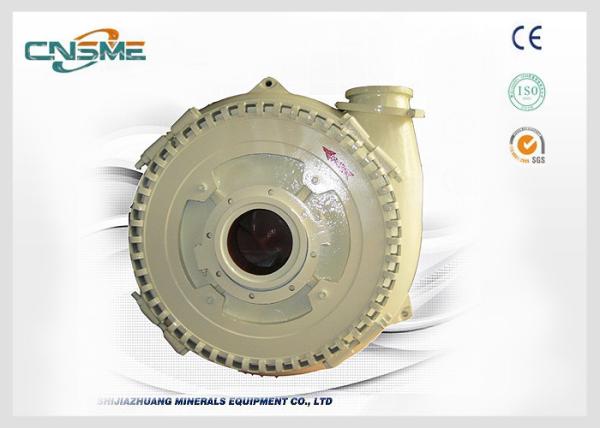

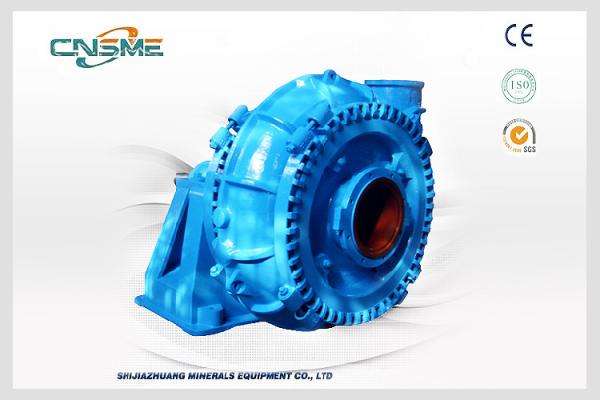

Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Centrifugal Dredging Sand Gravel Pump
Specifications
Brand Name :
CNSME
Model Number :
SG/300G
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Type :
Heavy Duty
Use :
Sand & Gravel
Structure :
Single Casing
Hardness :
HRC 58-62
Description

Centrifugal Dredging Pump For Heavy Duty Aggregate Sand Gravel

Introduction:

SG-300G is one of the best sold sand and gravel dredging pumps, the discharge size is 12-inch. This pump is very widely used because it is neither too big nor too small, and the cost is very reasonable. It can handle up to 2880 cubit meters of sand slurry per hour. Our heavy duty dredging pumps can be installed to electric motor where power is available or to diesel engine where there is no electricity.

SG series Sand Gravel Pump is a single stage, single casing, centrifugal horizontal pump. Large flow path make pump allow large particle solids. Simple structure and high chrome alloy liner make the Sand Gravel pump long life and easy maintenance.

Specifications:

Model SG-300G
Outlet 12-inch
Capacity 720-2880m3/h
TDH 10-70m
Rated Motor Power 600Kw
Speed 300-700r/min
NPSH 2-8m

Explosive View of SG Gravel Pumps:

Centrifugal Dredging Sand Gravel Pump

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Centrifugal Dredging Sand Gravel Pump

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

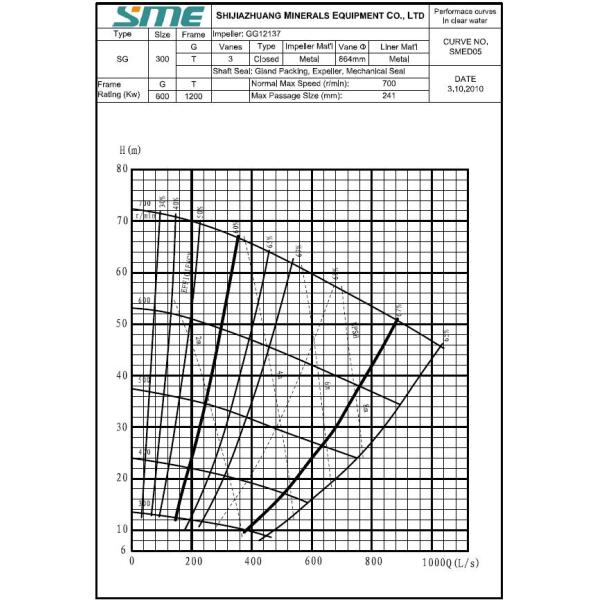

Performance Curve:

Centrifugal Dredging Sand Gravel Pump

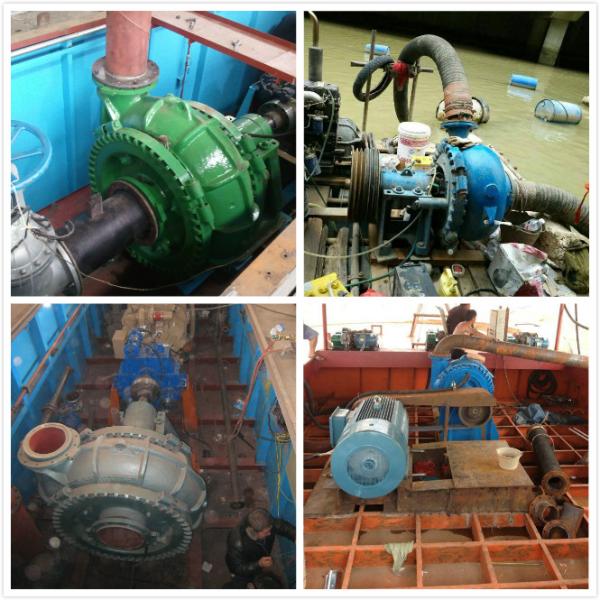

Projects of SME Gravel Pumps:

Centrifugal Dredging Sand Gravel Pump

SME orders of gravel pump:

Centrifugal Dredging Sand Gravel Pump
