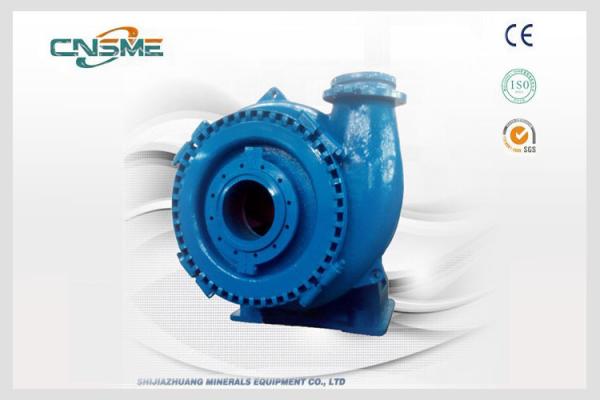

Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
Specifications
Brand Name :
CNSME
Model Number :
SHG/200S
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Use :
Sand & Gravel
Structure :
Single Casing
Hardness :
HRC 58-62
Color :
Bule
Description

Horizontal Dredging Pumps Used in Hull , Deck , Underwater

Introduction:

Multifunctional dredging pump can be used in hull, deck, underwater, dredging dredging, dredging river, filling operations, metal smelting slag conveyor.

Our pumps can guarantee a longer life, higher performance, ease of operation and maintenance. The series of gravel pumps are designed for continuously handling the most difficult higher abrasive slurry which contain too big solids to be pumps by a common pump.
They are suitable for delivering slurry in Mining,Explosive-sludge in metal melting,Dredging in dredger and course of rivers,and other fields.

Specifications:

Model SHG-200F
Outlet 8-inch
Capacity 360-1440m3/h
TDH 20-80m
Rated Motor Power 260Kw
Speed 500-950r/min
NPSH 2-5m

Explosive View of SG Gravel Pumps:

Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

Horizontal Hull , Deck , Underwater Dredge Pump 200S Large Capacity 8 Inch
