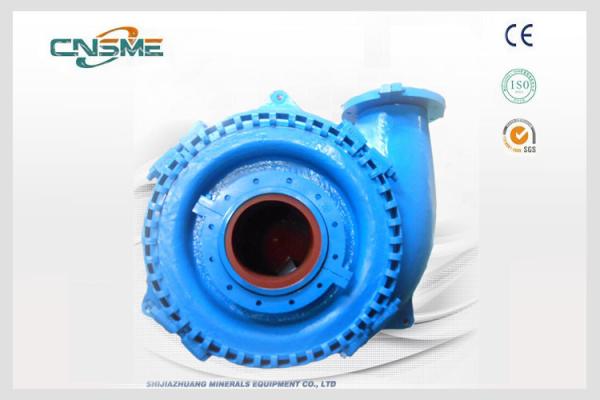

10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
Specifications
Brand Name :
CNSME
Model Number :
10/8F-G
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30000 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome A05
Theory :
Centrifugal
Use :
Sand & Gravel
Hardness :
HRC 58-62
Seal :
Packing Seal
Type :
Heavy Duty
Description

10 / 8 Diesel Powered Heavy Duty Sand / Gravel Slurry Pump Sets

Introduction:

There are main feature of 10/8F-G:

  • Choice of piston ring style labyrinth or other new style of water proof
  • Fully interchangeable with the common brand reducing inventory hold requirements
  • A full range of mechanical seal adaptations available upon request
  • Oil lubrication or packed grease
  • Painted tn customer specifications upon request

Specifications:

Model SG-200F
Outlet 8-inch
Capacity 216-936m3/h
TDH 8-52m
Rated Motor Power 560Kw
Speed 500-1000r/min
NPSH 3-7.5m

Explosive View of SG Gravel Pumps:

10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

10 / 8 Diesel Powered Heavy Duty Sand Gravel Slurry Pump Sets 560Kw
