Specifications
Brand Name :
SIMO BLOWER
Model Number :
5-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
CHINA
MOQ :
1
Price :
$500-1000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300sets 30days
Delivery Time :
35days(To be negotiated)
Packaging Details :
1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name :
High-temperature blower at kiln tail
Application :
Cement Production Line,High-temperature dusty flue gas
Material :
High-quality carbon steel/304/316, customizable
Air volume :
450000~900000m³/h
Air pressure :
7000~9000Pa
operating temperature :
200~260℃
Maximum temperature :
450℃
Voltage :
380V/415V/440V/660V/6KV/10KV
Size :
Customized
Power source :
Three Phase AC Motor
Bearing :
SKF/FAG/By your demand
Warranty :
1 Year
Description
High-temperature Fans for Cement Kiln Tail Applications
This critical high-temperature fan is specifically engineered for preheater and calciner systems at the kiln tail of modern dry-process cement production lines. It extracts and conveys high-temperature dust-laden waste gas from C1/C2 cyclones (operating temperature range: 320°C-450°C). The fan establishes system negative pressure, ensures optimal raw meal preheating and calcination, and efficiently directs exhaust gas to subsequent waste heat recovery or gas treatment systems. Its operational performance directly impacts system thermal efficiency, raw meal calcination rate, production line stability, and overall power consumption.
High-temperature fans at the kiln tail of the cement industry
Key Features
High-temperature fans at the kiln tail of the cement industry
  • Backward-curved blades for high efficiency and energy savings
  • Wear-resistant overlay or lining on blades for extended service life
  • Wear-resistant plate lining inside casing for durability
  • High-temperature extended support structure design to accommodate thermal expansion effects

High-temperature fans at the kiln tail of the cement industry

Technical Specifications
Typical Performance Parameters Conveyed Medium Structural Type
Air volume: 450,000-900,000 m³/h
Air pressure: 7,000-9,000 Pa
Operating temperature: 200-260℃
Maximum temperature: 450℃
Dust content: 80-120 g/Nm³		 High-temperature dusty flue gas Double-support centrifugal type
Manufacturing Process
High-temperature fans at the kiln tail of the cement industry

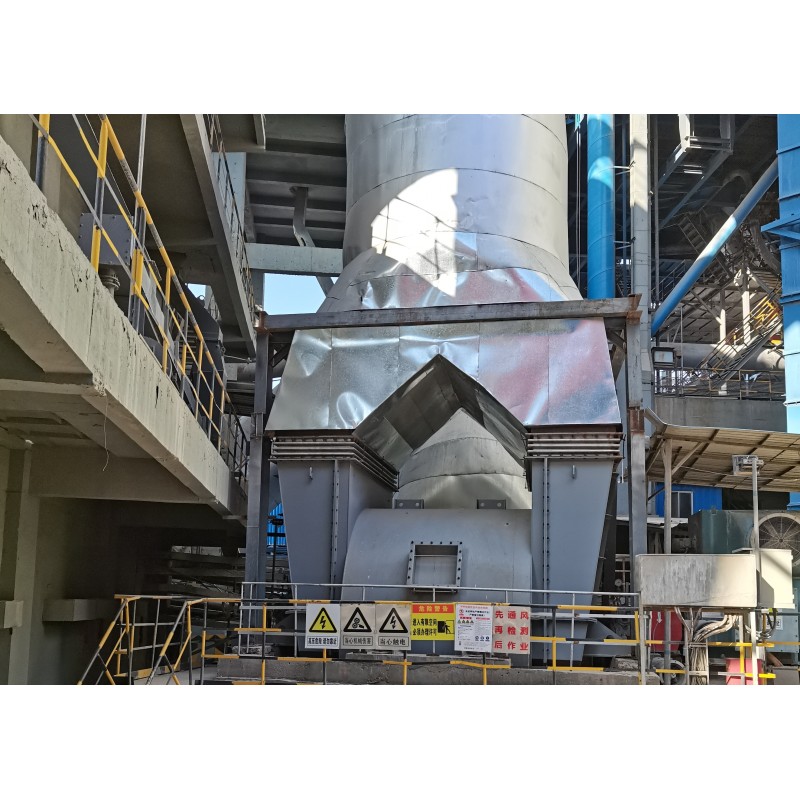

Application Examples
High-temperature fans at the kiln tail of the cement industry
Company Profile
High-temperature fans at the kiln tail of the cement industry
High-temperature fans at the kiln tail of the cement industry
Related Projects
High-temperature fans at the kiln tail of the cement industry
Frequently Asked Questions
High-temperature fans at the kiln tail of the cement industry
