Cement production raw material mill circulating fan
Cement production raw material mill circulating fan
Cement production raw material mill circulating fan
Cement production raw material mill circulating fan
Cement production raw material mill circulating fan
Cement production raw material mill circulating fan
Specifications
Brand Name :
SIMO BLOWER
Model Number :
5-10
Certification :
CE/ISO9001/ISO45001
Place of Origin :
CHINA
MOQ :
1
Price :
$500-1000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300sets 30days
Delivery Time :
35days(To be negotiated)
Packaging Details :
1.export wooden case packing 2.bare package with steel pallet 3.other export
Product Name :
material mill circulating fan
Application :
Cement Production Line,Dust-laden gas
Material :
High-quality carbon steel/304/316, customizable
Air volume :
450000~900000m³/h
Air pressure :
10000~12000Pa
operating temperature :
70~100℃
Dust content :
80~120 g/Nm³
Voltage :
380V/415V/440V/660V/6KV/10KV
Size :
Customized
Power source :
Three Phase AC Motor
Bearing :
SKF/FAG/By your demand
Warranty :
1 Year
Description
Cement Production Raw Material Mill Circulating Fan
This circulating fan is the core gas handling equipment in cement raw material grinding systems (such as air-swept mills and vertical roller mills). Its critical role is to drive the circulating flow of dust-laden hot gas (typically kiln exit gases) within the closed-loop system of grinding, drying, and classifying. Its primary functions include: providing the heat source for raw material drying, transporting ground material to the classifier for separation, and carrying the finished product meeting fineness requirements to the subsequent dust collection system. The fan operates continuously in a complex environment characterized by high dust concentration (up to 1000 g/Nm³), high humidity, medium temperature (~200°C), and abrasiveness.
Cement production raw material mill circulating fan
Key Features
  • Backward-curved blades for high efficiency and energy savings

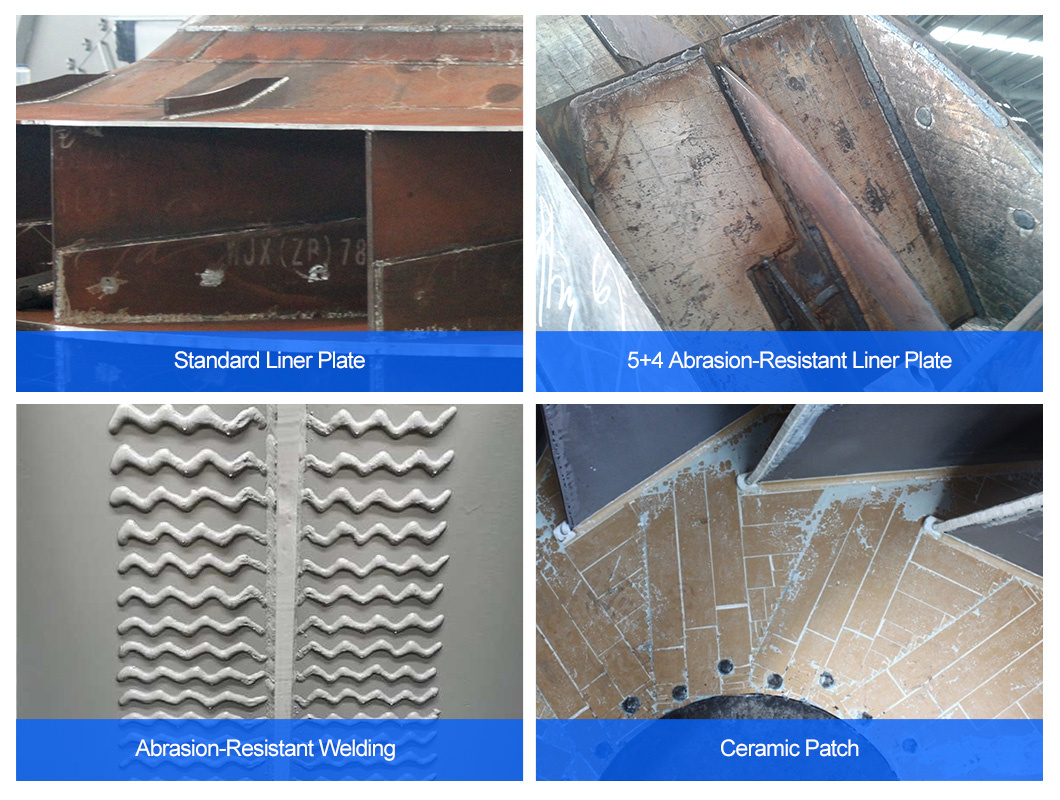

  • Blades with wear-resistant overlay or wear-resistant lining
  • Wear-resistant plate lining inside the casing
  • High-temperature extended support structure design to accommodate thermal expansion effects

Cement production raw material mill circulating fan

Technical Specifications
Typical Performance Parameters Conveyed Medium Structural Type
Air volume: 450,000–900,000 m³/h
Air pressure: 10,000–12,000 Pa
Operating temperature: 70–100°C
Dust content: 80–120 g/Nm³		 Dust-laden gas Double-support centrifugal type
Manufacturing Process
Cement production raw material mill circulating fan

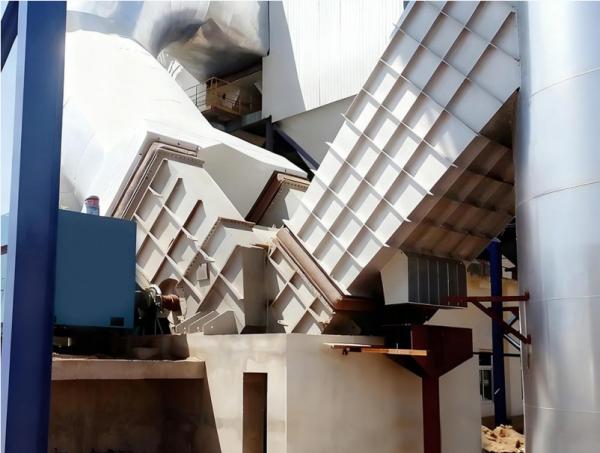

Application Examples
Cement production raw material mill circulating fan
